Troubleshooting Shelves
SH1HU-R(/PF) Shelf LEDs

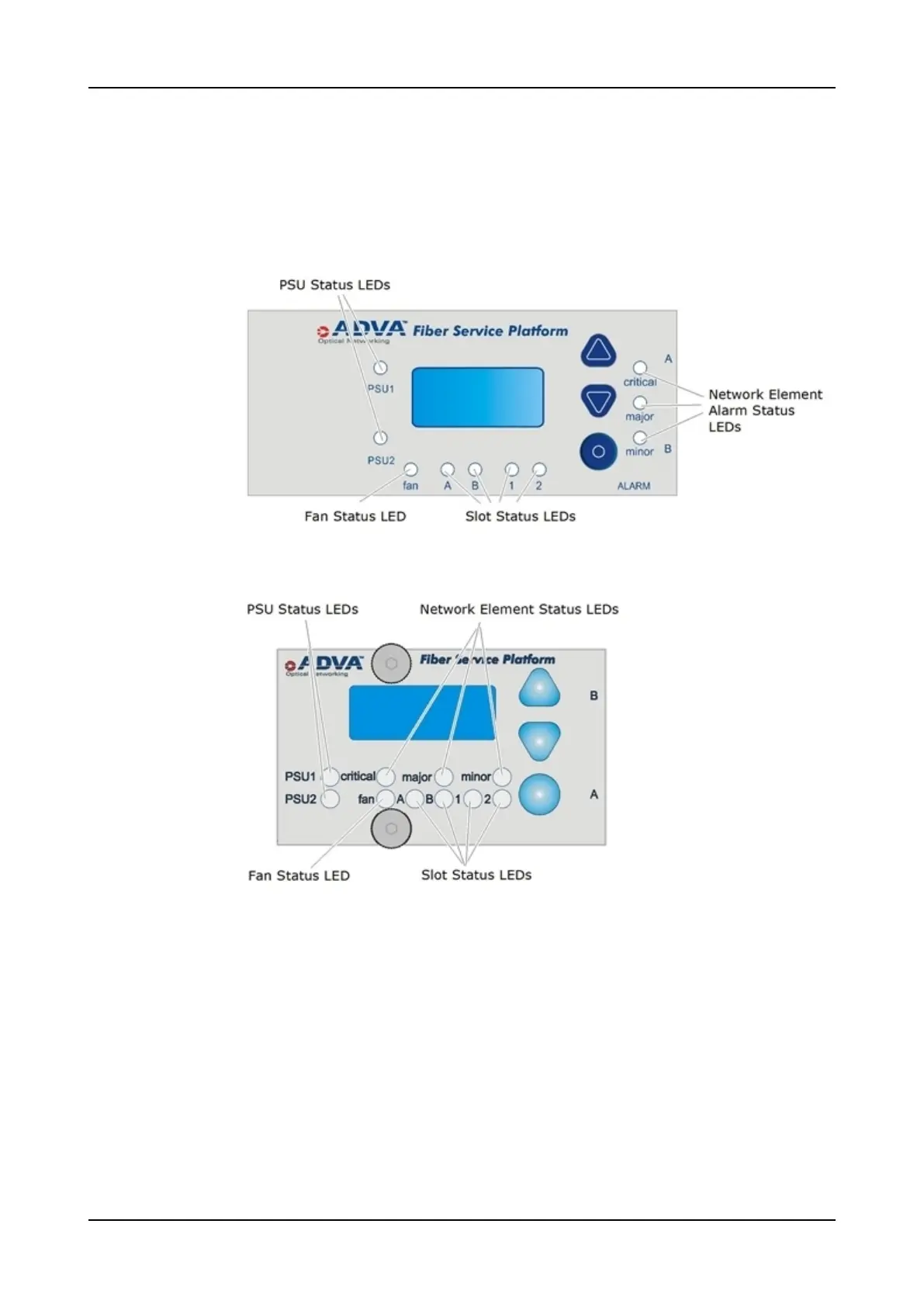

The LED indicators of the SH1HU-R shelf and SH1HU-R/PF shelf are located on their
front panels as illustrated in Figure 10 and Figure 11. Both shelves have the same LED
indicators.
Figure 10: SH1HU-R Front Panel LED Indicators
Figure 11: SH1HU-R/PF Front Panel LED Indicators
Refer to these subsections describing the different LEDs and their behavior of the
SH1HU-R(/PF) shelves.
“SH1HU-R(/PF) Fan Status LED” on p.69
“SH1HU-R(/PF) Slot Status LEDs” on p.70
“SH1HU-R(/PF) Power Status LEDs” on p.72
“SH1HU-R(/PF) Network Element Status LEDs” on p.73
68 FSP 3000R7 Maintenance and Troubleshooting Manual - Product Release 16.2 - Document Issue A
