Replacing Fan Units and Fan Modules
b) Firmly pull on the screws until the display front panel is free from the shelf
and lay it aside. Place it on an antistatic mat.
Note
After removing the display front panel, wait for at least 5seconds before
you pull out the fan module. This time is taken by the fans to stop
working.
c) Put your forefinger into the hole of the folded grip and gently pull the fan
module out of the shelf slot completely as shown in Figure 62 on p.744. To
prevent dropping the module, grasp the bottom with the other hand.

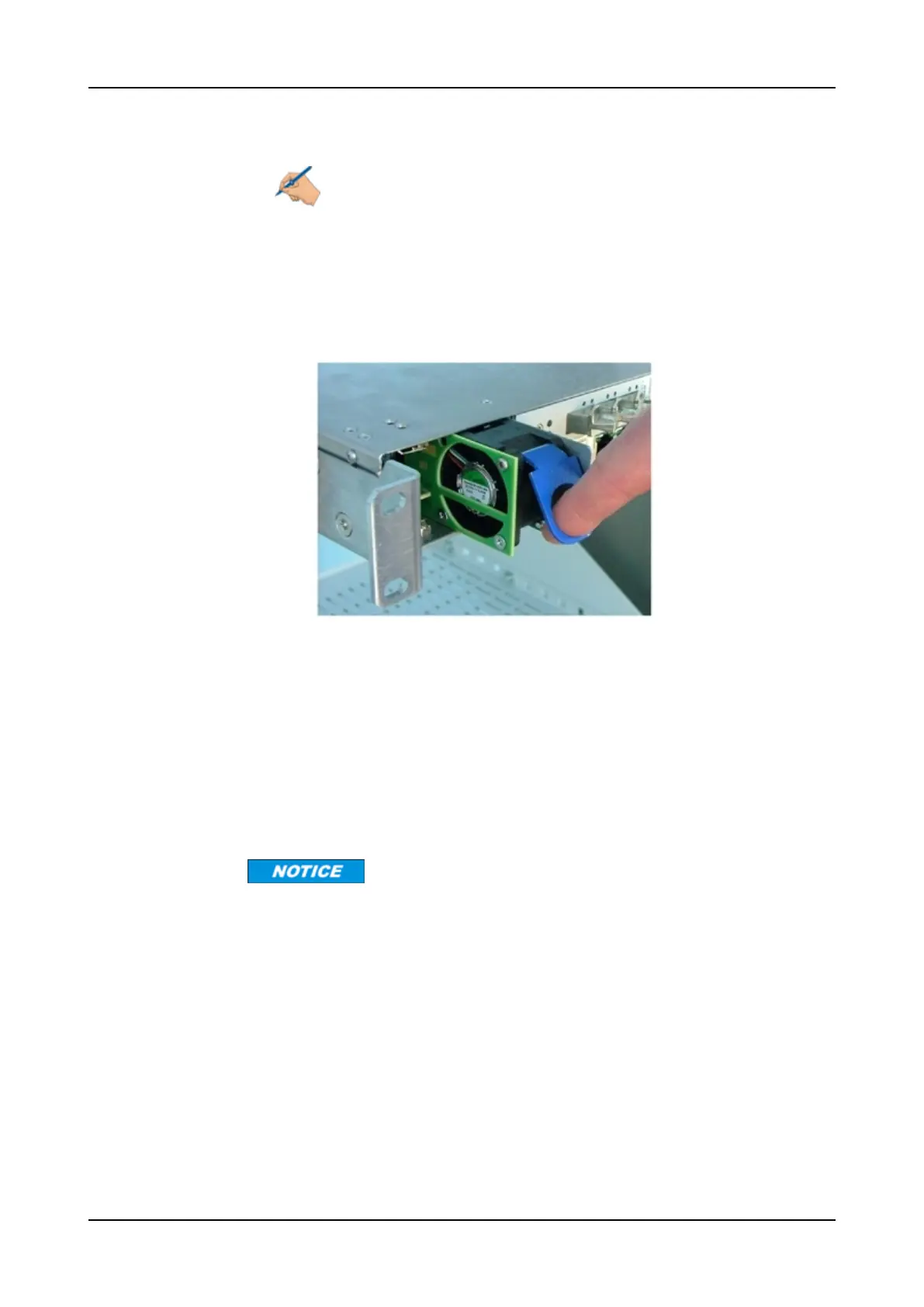

Figure 62: Removing the Fan Module from the Shelf Slot
d) Lay the fan module aside.
Step 5 Insert the replacement fan module:
a) Grasp the fan module firmly on the upper and bottom sides using your
thumb and forefinger so that front side with the folded grip is facing you,
and the PCB is on the left. See also Figure 62 on p.744.
b) If the module is in the correct position, carefully slide it into the slot a few
millimeters.
c) Using moderate force, push gently until the module connectors mate
properly with the backplane connectors.
If you need a force greater than 90 Newton (20.2 lbf) to push in the module, stop
immediately and pull it out. Inspect the module and the electrical connectors. If the
module and the connectors are not damaged, reinsert the module.
d) Ensure that the module is properly and completely inserted into the slot.
The module is properly and completely inserted when its front side is flush
with the edge of the slot.
Step 6 Re-install the LED front panel back on the shelf:
a) Hold the LED front panel with your left hand in place as shown in Figure 61
on p.743, ensuring it is aligned on all sides.
b) Turn the two attached knurled screws clockwise into the thread holes
using the thumb and forefinger of your right hand.
c) Tighten the screws. Be careful not to over tighten.
744 FSP 3000R7 Maintenance and Troubleshooting Manual - Product Release 16.2 - Document Issue A
