Chapter 2 2-105
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
Output Power Linearity Measurement from 300 kHz to 3 GHz
1. Set up the equipment as shown in Figure 2-60.

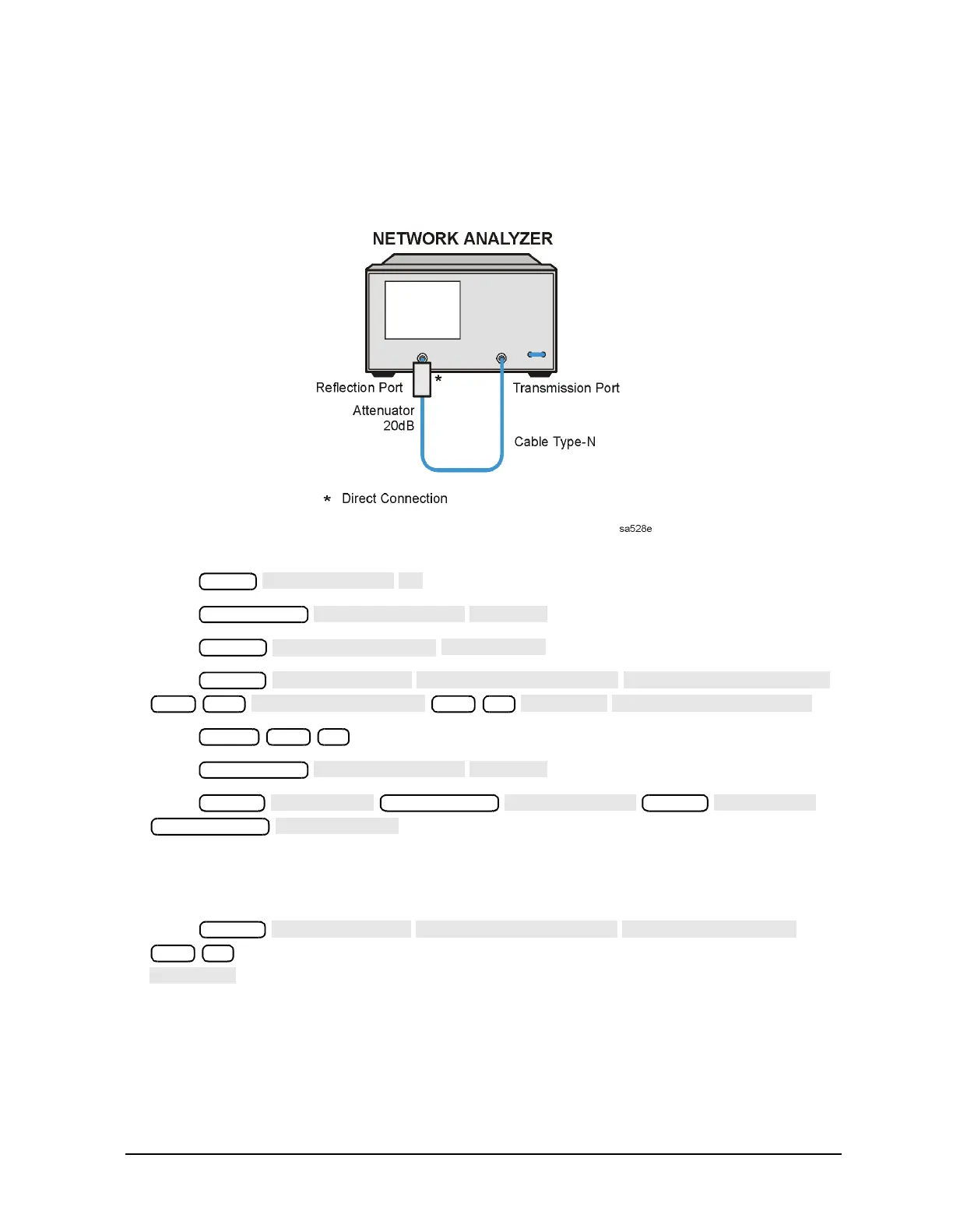

Figure 2-60 Output Power Linearity Test Setup
2. Press .
3. Press .
4. Press .
5. Press
.
6. Press (or the next power setting from the performance test record).
7. Press .
8. Press
.
9. Read the value for marker 1 from the display and enter it in the performance test
record in the “Marker 1 (Maximum)” column. Enter the value of marker 2 in the
“Marker 2 (Minimum) column.
10.Press
(or the next power offset value from the performance test record)
.
11.Repeat steps 6 through 10 for all power settings and associated power offsets listed on
the performance test record in the 300 kHz to 3 GHz range.
12.The marker 1 (maximum) and marker 2 (minimum) readings should be within the
specified range for each power level with reference to the fixed marker value.
Meas
Display
Marker
300 k/m
−15 x1
∆
∆
Power −20 x1
Marker
Marker Search
Marker
Marker
−13 x1
