Agilent 8753ET System Verification and Performance Tests

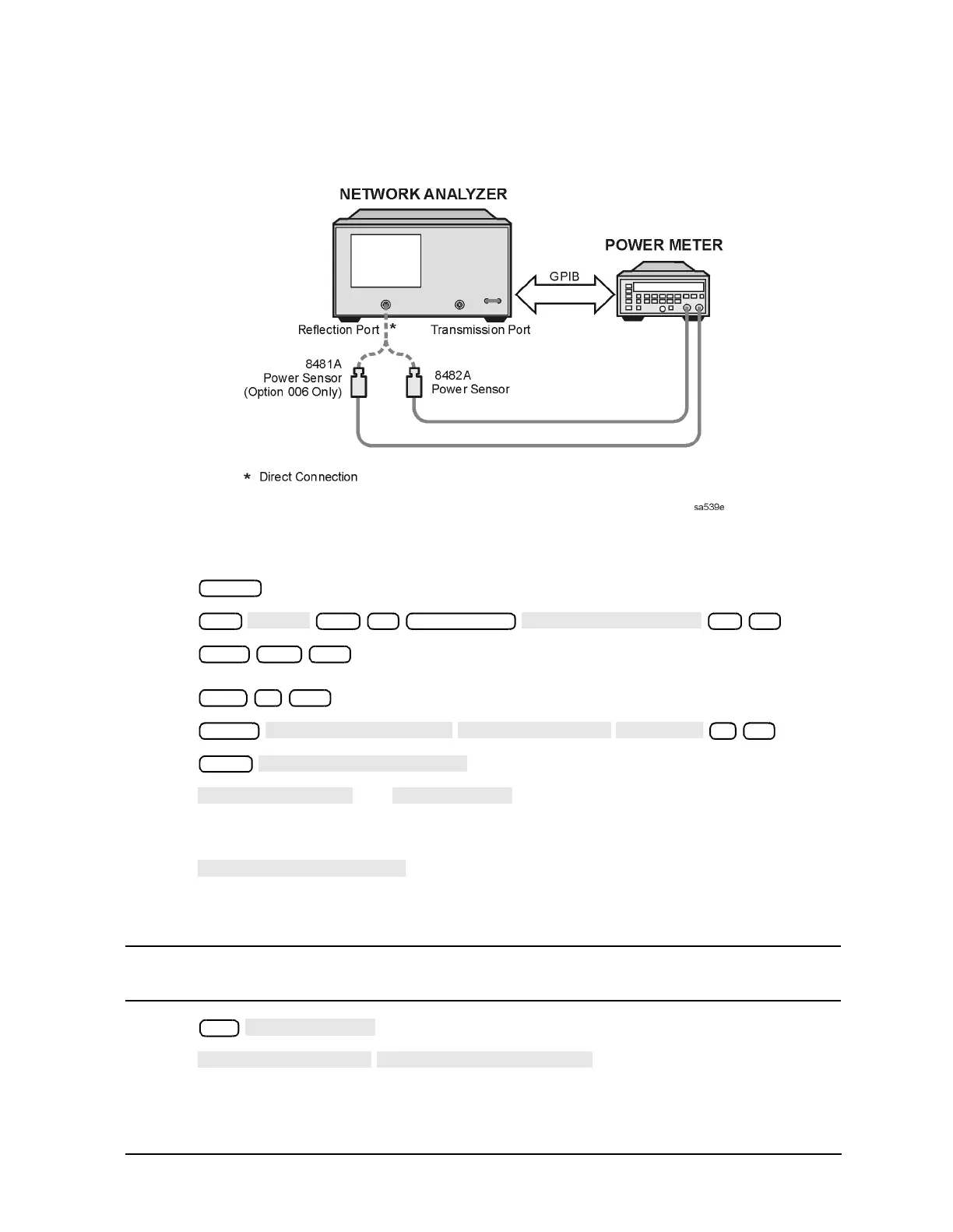

Figure 2-61 Setup for Power Meter Calibration
3. Press .
4. Press .
5. Press .
If your analyzer has Option 006:
Press .
6. Press .
7. Press .
8. Press and until the analyzer shows the correct
power meter model. (Use the 438A/437 selection if the power meter is an E4419B or
E4418B.)
9. Press . The default power meter GPIB address is 13. Make
sure it is the same as your power meter GPIB address. Otherwise, use the analyzer
front panel keypad to enter the correct GPIB address for your power meter.
NOTE The analyzer displays the PRm annotation, indicating that the analyzer power
range is set to MANUAL.
10.Press .
11.Press . Refer to the back of the power
sensor to locate the different calibration factor values along with their corresponding
frequencies.
Preset
Avg
IF BW
100 x1 Sweep Setup
NUMBER of POINTS
51 x1
Start 300 k/m
Stop 3 G/n
Power
POWER RANGE MAN
POWER RANGES
RANGE 0
0 x1
Local
SYSTEM CONTROLLER
SET ADDRESSES
POWER MTR
ADDRESS: P MTR/GPIB
Cal
PWRMTR CAL
LOSS/SENSR LISTS
CAL FACTOR SENSOR A
