Chapter 2 2-117
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests

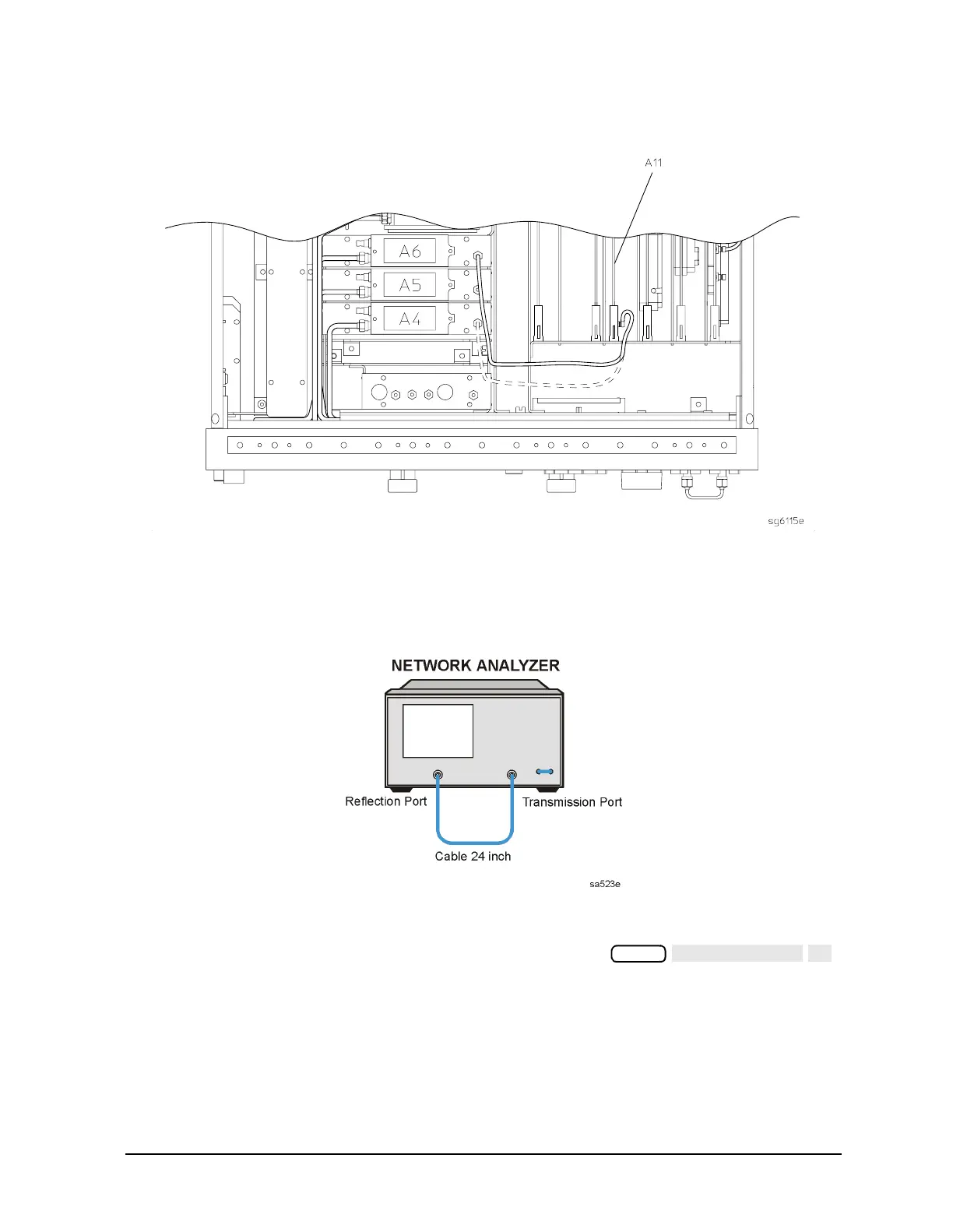

Figure 2-66 Connection for Substituting the R sampler (A4)
4. Connect the equipment as shown in Figure 2-67.
Figure 2-67 Setup for Checking the R sampler (A4).
5. Repeat the test, but select the B sampler (A6) by pressing
in step 2. Use the following specifications:
300 kHz to 3 GHz: < −27 dBm
3 GHz to 6 GHz: < −22 dBm
6. If the analyzer fails the test, replace the A11 assembly.
