Agilent 8753ET System Verification and Performance Tests

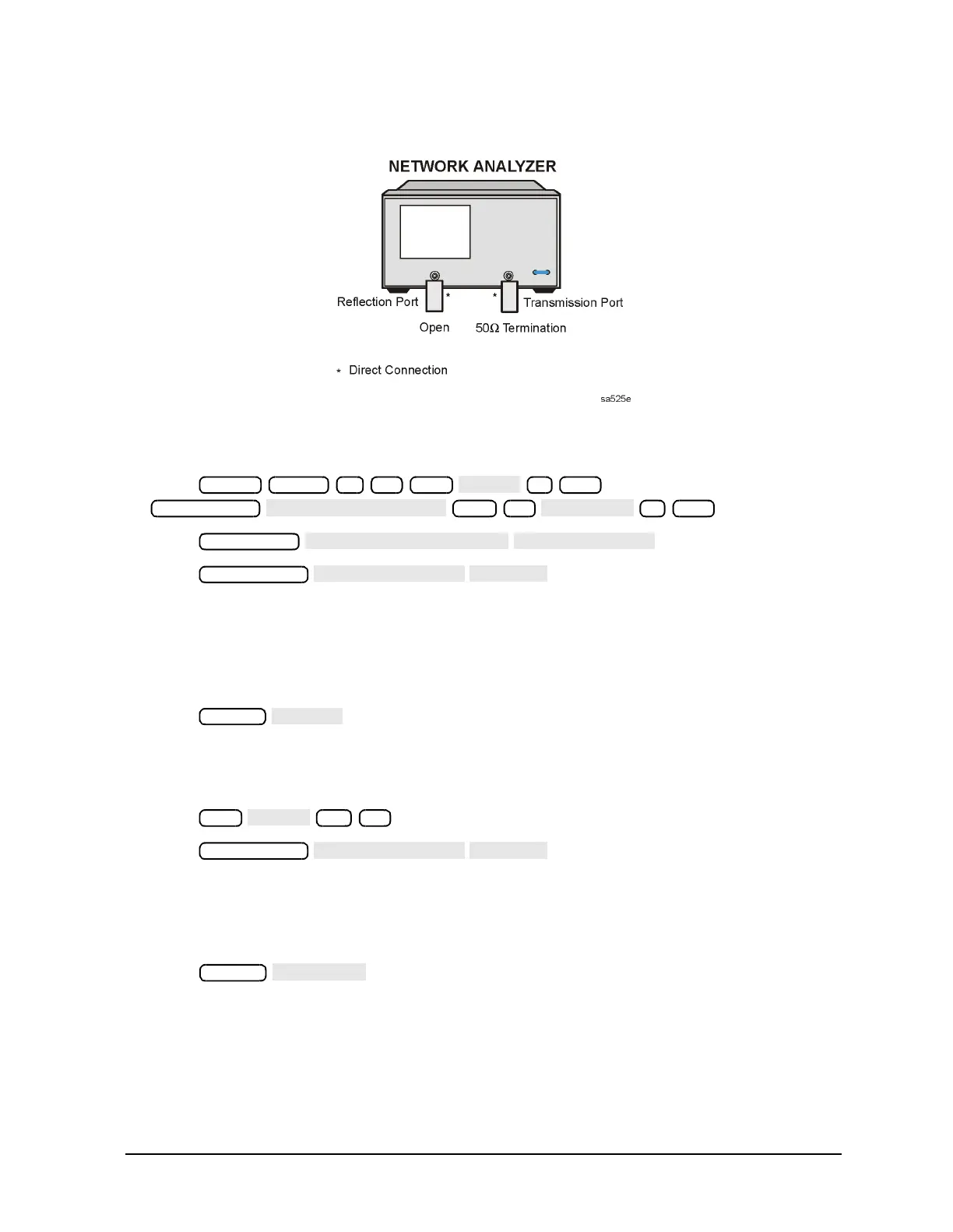

Figure 2-78 Reflection Trace Noise Test Setup
Reflection Trace Noise Magnitude, IF BW = 3 kHz
2. Press
.
3. Press .
4. Press .
5. When the measurement is done (indicated by the Hld notation on the left side of the
display), record the standard deviation (shown on the right side of the display) in the
performance test record.
Reflection Trace Noise Phase, IF BW = 3 kHz
6. Press .
7. Record the standard deviation in the performance test record.
Reflection Trace Noise Phase, IF BW = 10 Hz
8. Press .
9. Press .
10.When the measurement is done, record the standard deviation in the performance test
record.
Reflection Trace Noise Magnitude, IF BW = 10 Hz
11.Press .
12.Record the standard deviation in the performance test record.
Preset Power 5 x1
Avg
IF BW
3 k/m
Sweep Setup
NUMBER of POINTS
201 x1
CW FREQ
3 G/n
Marker Fctn
MARKER MODE MENU
MKR STATS ON
Sweep Setup
TRIGGER MENU
SINGLE
Format
PHASE
Avg
IF BW
10 x1
Sweep Setup
TRIGGER MENU
SINGLE
Format
LOG MAG
