Agilent Technologies 8753ET Service Guide

2-138 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
Transmission Trace Noise Magnitude, IF BW = 10 Hz
13.Connect the equipment as shown in Figure 2-79.

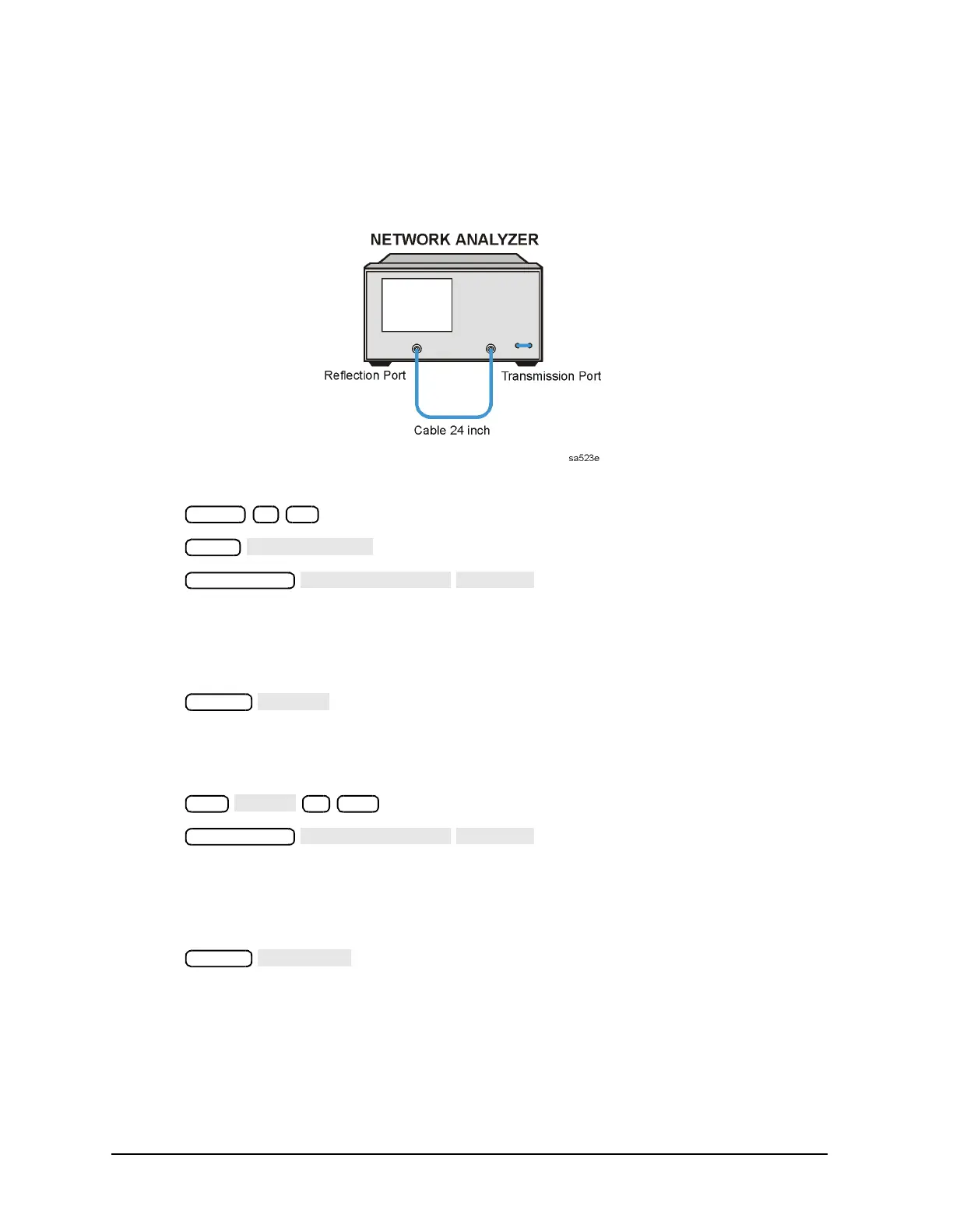

Figure 2-79 Transmission Test Port Trace Noise
14.Press .
15.Press .
16.Press .
17.When the measurement is done, record the standard deviation in the performance test
record.
Transmission Trace Noise Phase, IF BW = 10 Hz
18.Press .
19.Record the standard deviation in the performance test record.
Transmission Trace Noise Phase, IF BW = 3 kHz
20.Press .
21.Press .
22.When the measurement is done, record the standard deviation in the performance test
record.
Transmission Trace Noise Magnitude, IF BW = 3 kHz
23.Press .
24.Record the standard deviation in the performance test record.
25.If you do not have Option 006, this completes the test.
If you have Option 006, go to “Reflection and Transmission Trace Noise (Option 006
Only),” next.
Power 0 x1
Meas
TRANSMISSN
Sweep Setup
TRIGGER MENU
SINGLE
Format
PHASE
Avg
IF BW
3 k/m
Sweep Setup
TRIGGER MENU
SINGLE
Format
LOG MAG
