3-30 Chapter 3
Adjustments and Correction Constants
Cavity Oscillator Frequency Correction Constants (Test 54)

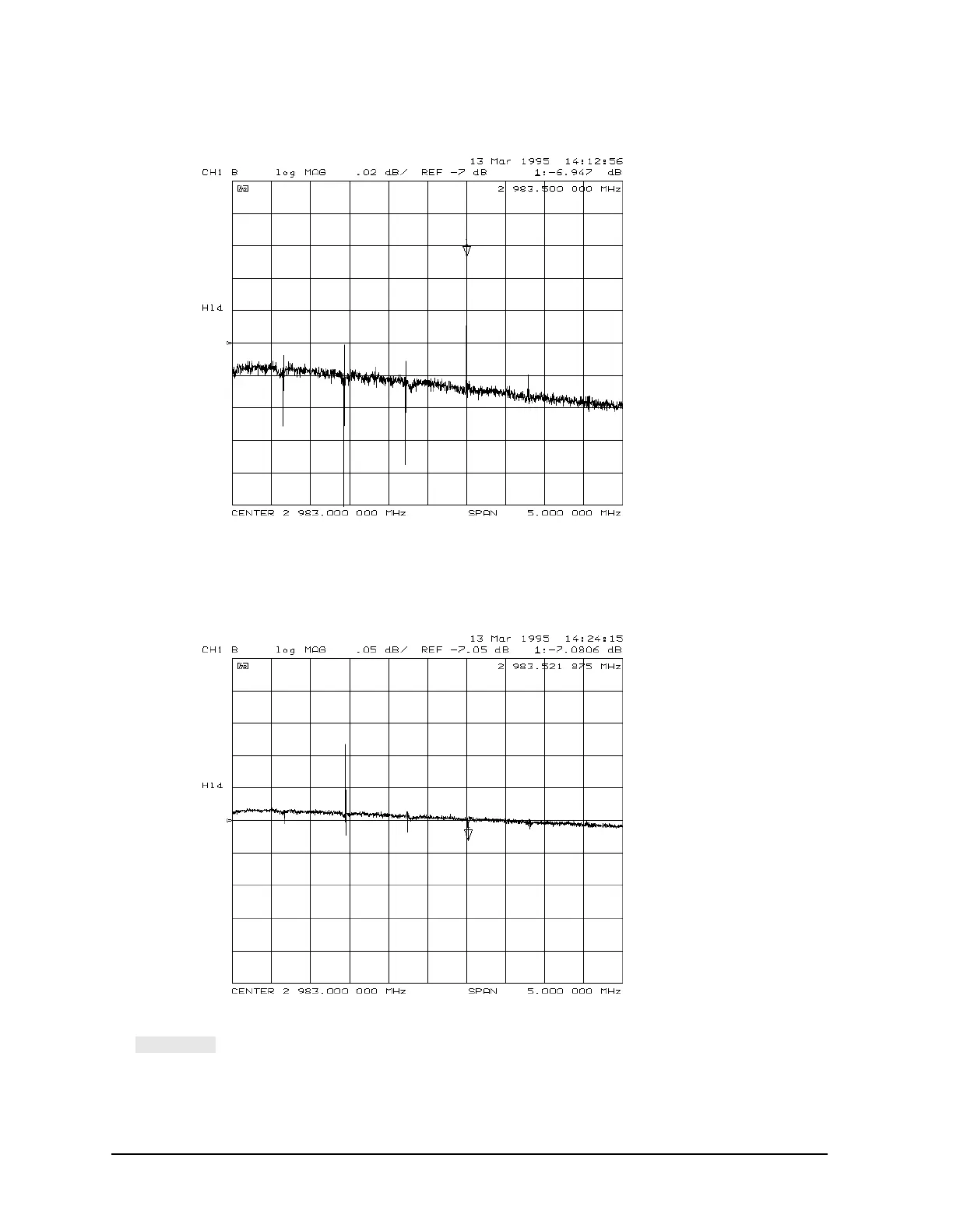

Figure 3-13 Target Spur Is Fourth in Display of Five Spurs
Figure 3-14 shows another variation of the basic four-spur pattern: some up, some down,
and the target spur itself almost indistinguishable.
Figure 3-14 Target Spur Is Almost Invisible
10.Rotate the front panel knob to position the marker on the target spur. Then press
and observe the analyzer for the results of the adjustment routine:
• If the analyzer displays Cav Osc Cor DONE, you have completed this procedure.
• If the analyzer displays FAIL, refer to Chapter 7 , “Source Troubleshooting.”
To Next Page
