Agilent Technologies 8753ET Service Guide

10-24 Chapter 10
Service Key Menus and Error Messages
Service Key Menus
Node 2 Src 1V/GHz (source 1 volt per GHz)
Press the following to view analog bus node 2:
.
Node 2 measures the voltage on the internal voltage controlled oscillator. Or, in normal
operation, it should read −1 V/GHz.

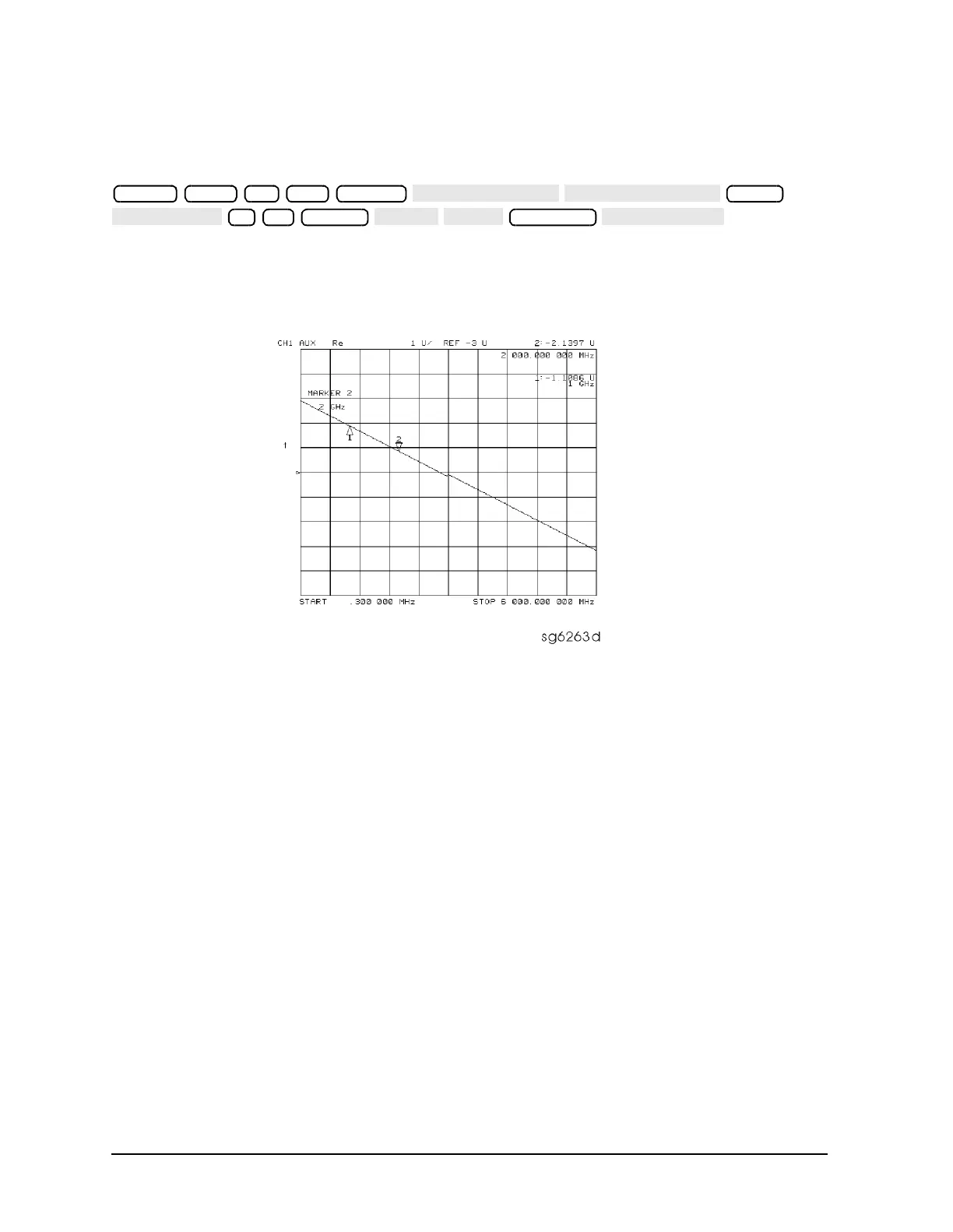

Figure 10-4 Analog Bus Node 2
Preset Start 30 k/m
System
SERVICE MENU
ANALOG BUS ON
Meas
ANALOG IN
2 x1 Format
MORE
REAL
Scale Ref
AUTO SCALE
