Chapter 10 10-25

Service Key Menus and Error Messages

Service Key Menus

Node 3 Amp Id (amplifier current)

Press the following keys to view analog node 3:

Node 3 measures the current that goes to the main IF amplifier. At normal operation this

node should read about:

• 15 mA from 30 kHz to 299 kHz

• 130 mA from 300 kHz to 3 GHz

• 500 mA from 3 GHz to 6 GHz

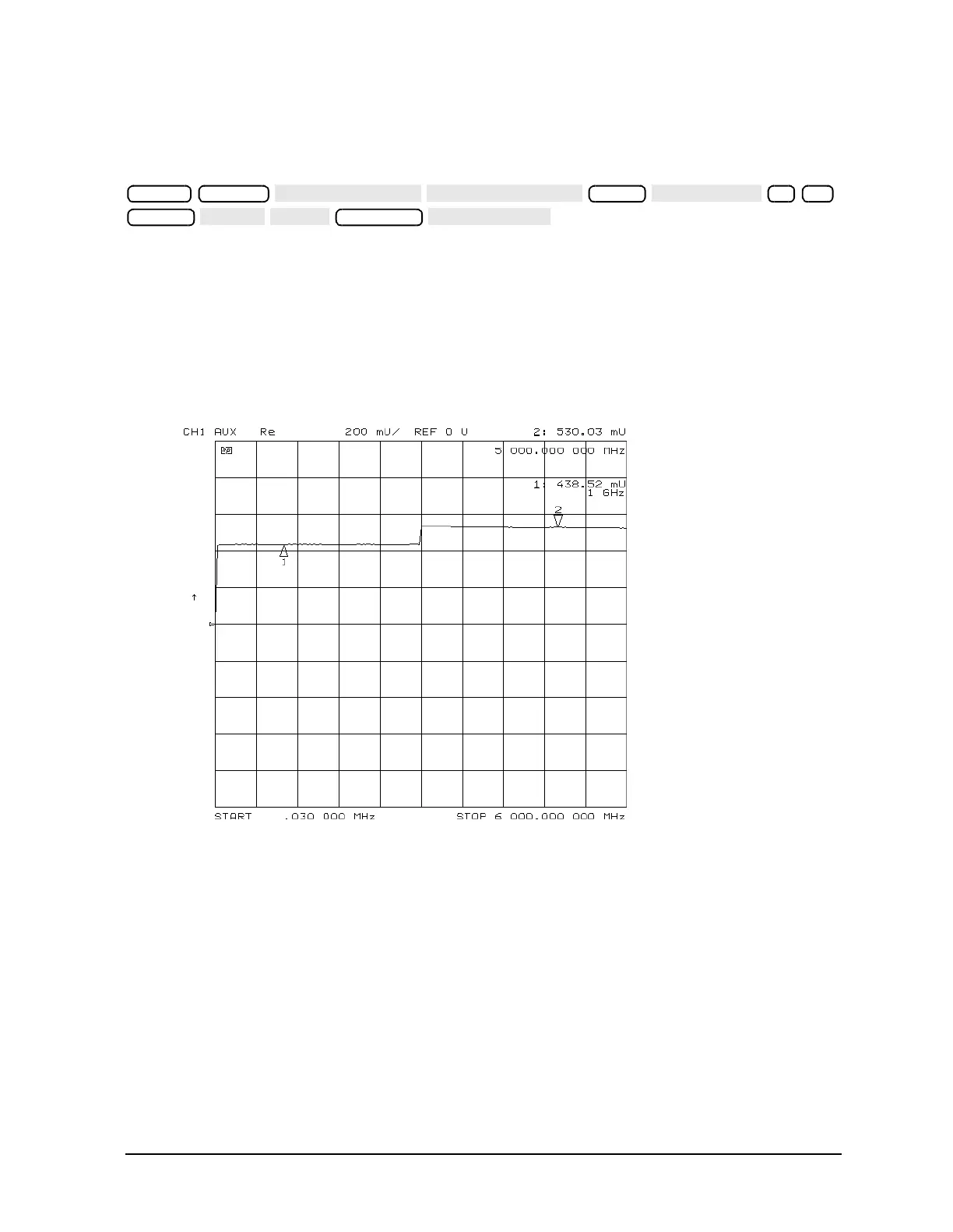

Figure 10-5 Analog Bus Node 3

Preset System

SERVICE MENU

ANALOG BUS ON

Meas

ANALOG IN

3 x1

Format

REAL

Scale Ref

AUTO SCALE
