Chapter 10 10-27
Service Key Menus and Error Messages
Service Key Menus
Node 6 Integ (ALC leveling integrator output)
Perform step A3 to set up a power sweep on the analog bus. Then press
.
Node 6 displays the output of the summing circuit in the ALC loop. Absolute voltage level
variations are normal. When node 6 goes above 0 volts, the ALC saturation is indicated.

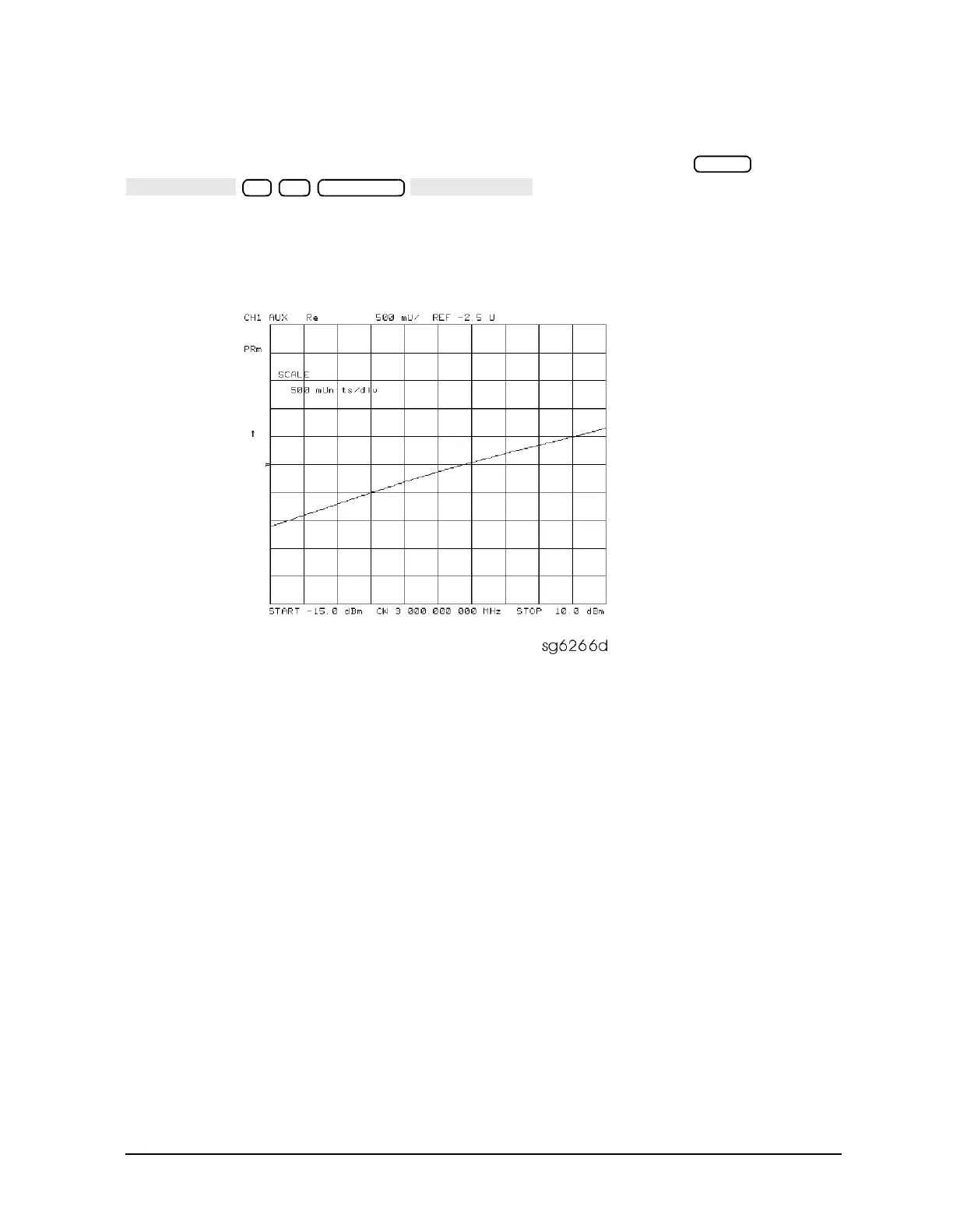

Figure 10-7 Analog Bus Node 6
Meas
6 x1
