2-30 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

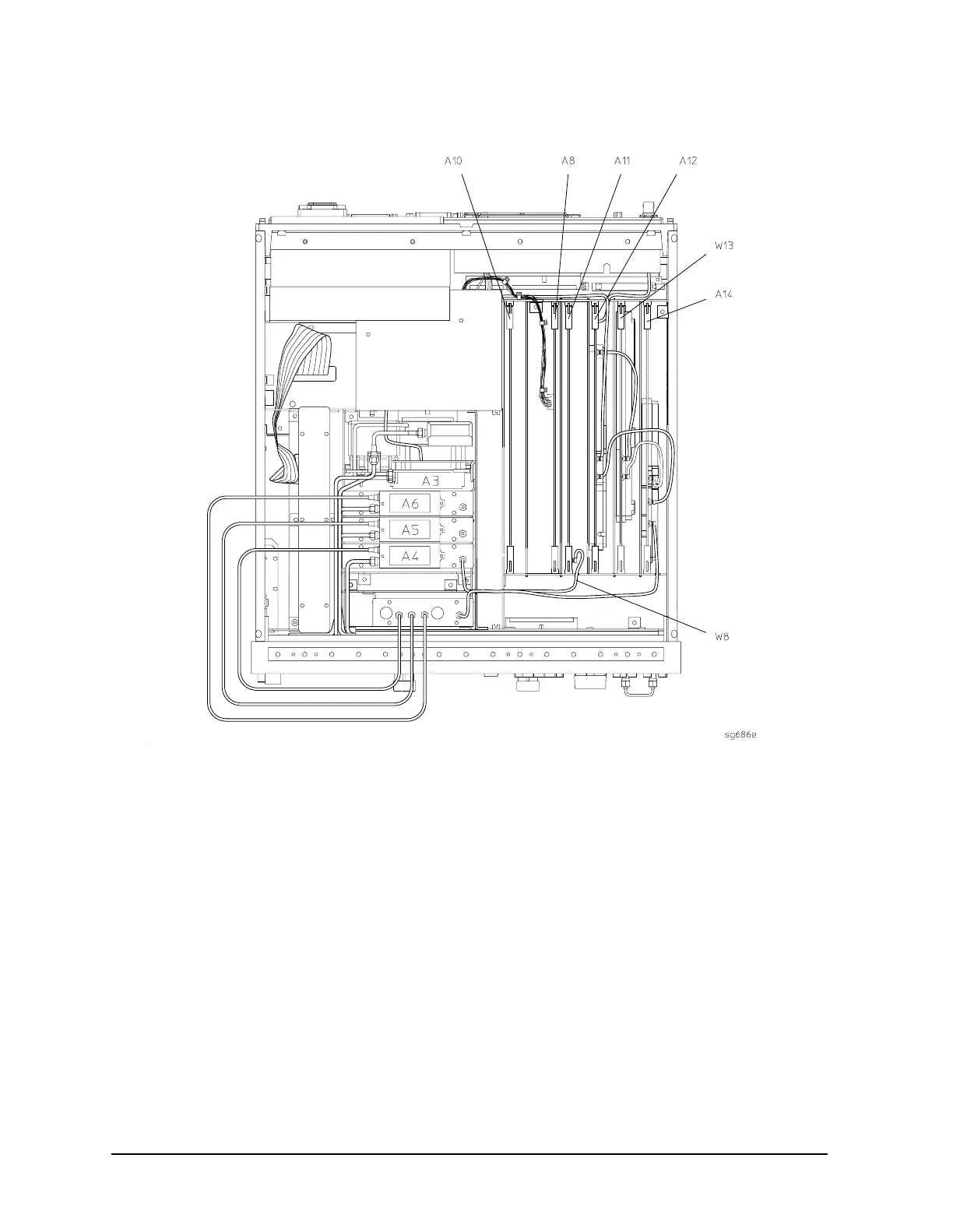

Figure 2-14 Flexible RF Cable Location
2. Using an ohmmeter, verify that cable W8 is not open. In addition, examine both the
cable connectors: measure the resistance between the cable center pin and the cable
connector and make sure it is not close to zero.
3. Check the R sampler by substituting it with the B sampler (A6). Do this by moving
cable W8 to the B sampler (A6), as shown in Figure 2-15.
