Chapter 2 2-31
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

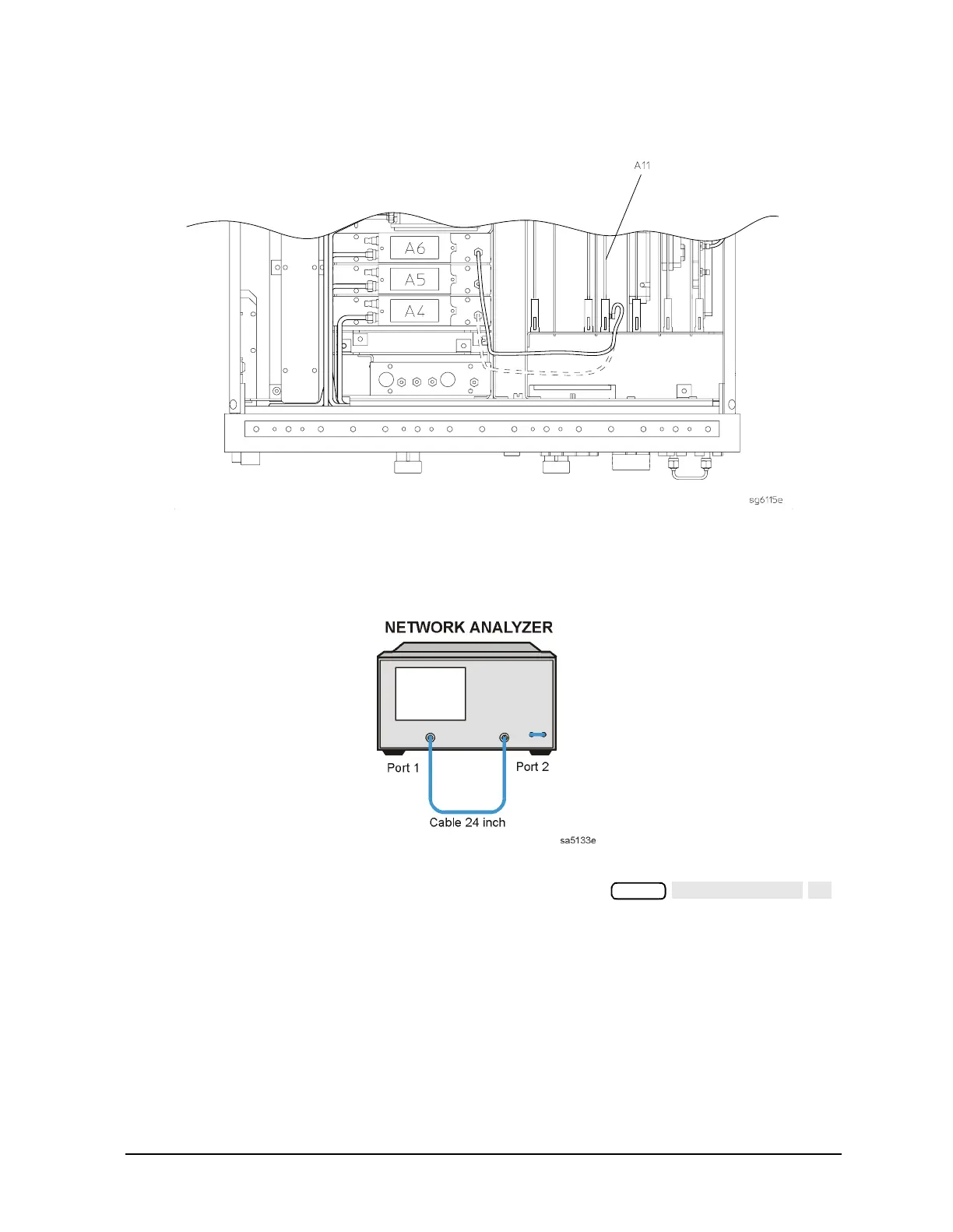

Figure 2-15 Connections for Substituting the R Sampler (A4)
4. Connect the equipment as shown in Figure 2-16.
Figure 2-16 Setup for Checking the R Sampler (A4)
5. Repeat the test, but select the B sampler (A6) by pressing
in step 2. Use the following specifications:
• 300 kHz to 3 GHz: < −27 dBm
• 3 GHz to 6 GHz: < −22 dBm
6. If the analyzer fails the test, replace the A11 assembly.
7. Verify that the high/low band adjustments are still within specifications. For more
information on how to perform this task, refer to “High/Low Band Transition
Adjustment” on page 3-47.
8. Refer to Chapter 7 , “Source Troubleshooting,” for more troubleshooting information.
Meas
