2-44 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

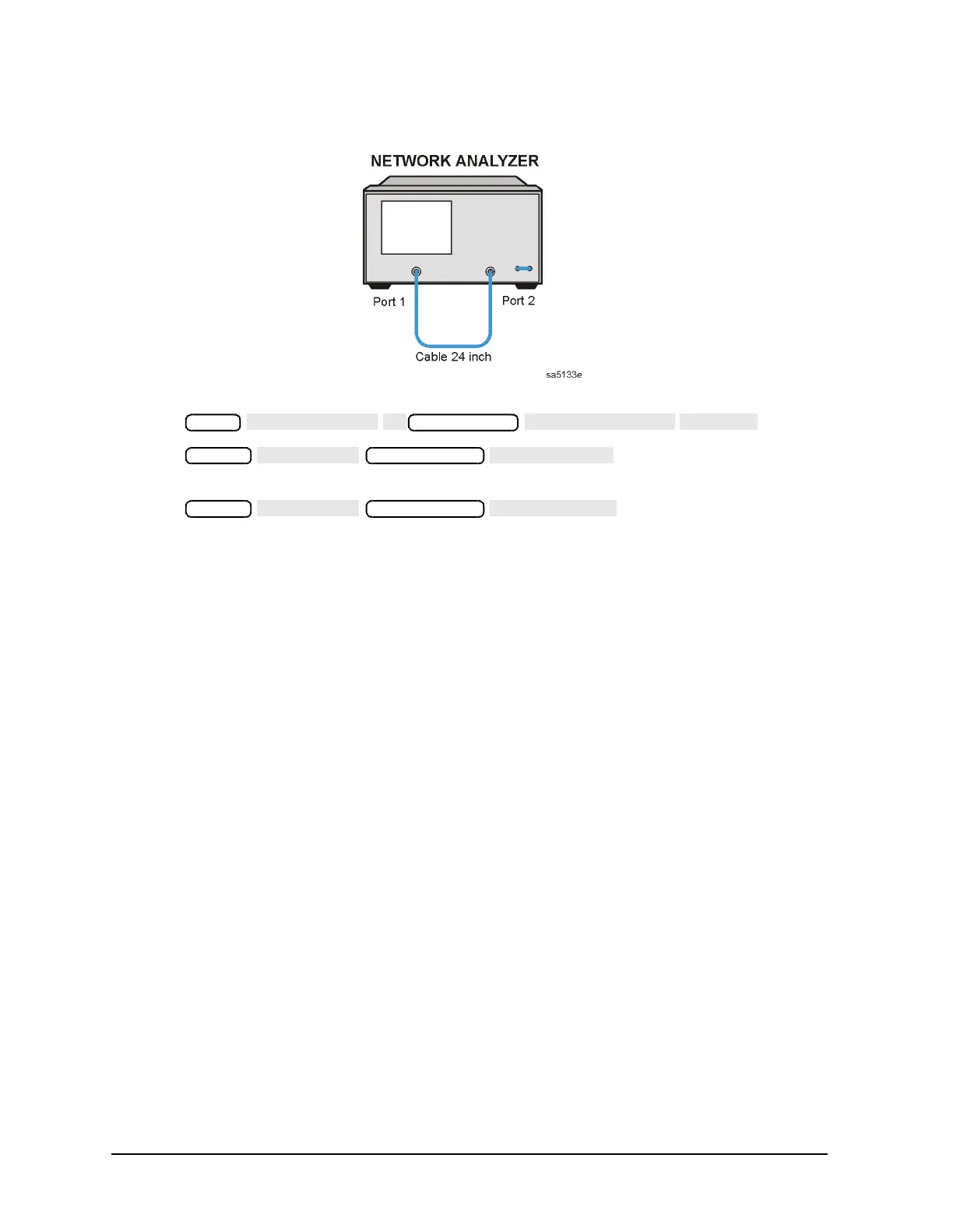

Figure 2-25 Test Port 2 Input Frequency Response Test Setup
48.Press .
49.Press to put marker 1 at the
minimum magnitude location of the trace.
50.Press to position marker 2 at
the maximum magnitude location of the trace.
51.Write the marker 1 or marker 2 reading, whichever has the largest absolute magnitude,
in the performance test record.
In Case of Difficulty
1. Be sure you have used the correct power sensor for the frequency range.
2. Verify that the calibration factors that you have entered for the power sensors are
correct.
3. Repeat this test with a cable that is known to be good.
Meas
Sweep Setup
Marker
Marker Search
Marker
Marker Search
