2-68 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

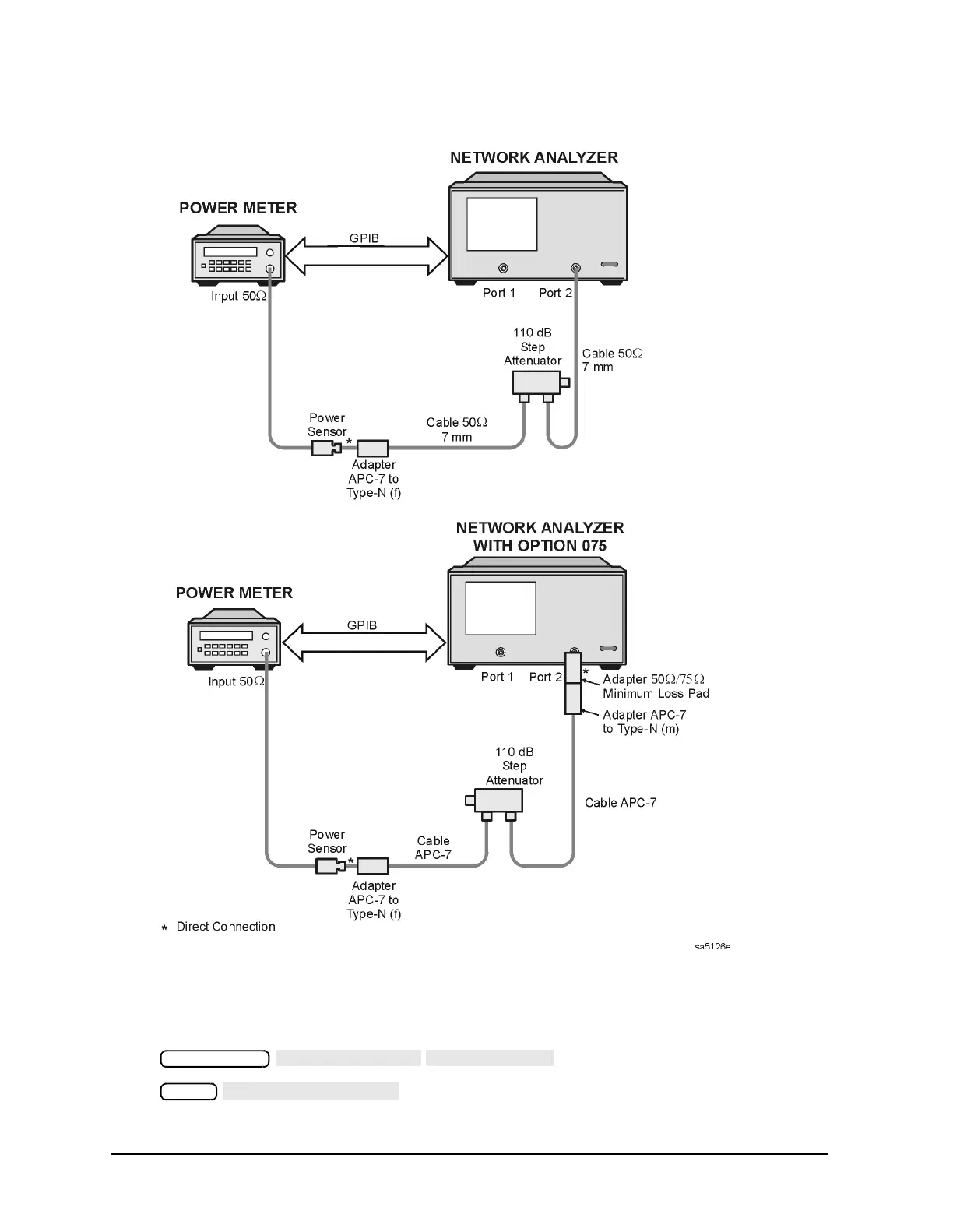

Figure 2-37 Power Meter Calibration for Magnitude Dynamic Accuracy
27.Set the step attenuator to 10 dB.
28.Set the following analyzer parameters:
•
•
Sweep Setup
TRIGGER MENU
CONTINUOUS
Meas
Trans: REV S12 (A/R)
