System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests
29.Take a power meter calibration sweep.
•
•
30.Verify that the power meter reads approximately −20 dBm.
Full 2-Port Calibration
31.Connect the equipment as shown in Figure 2-38.

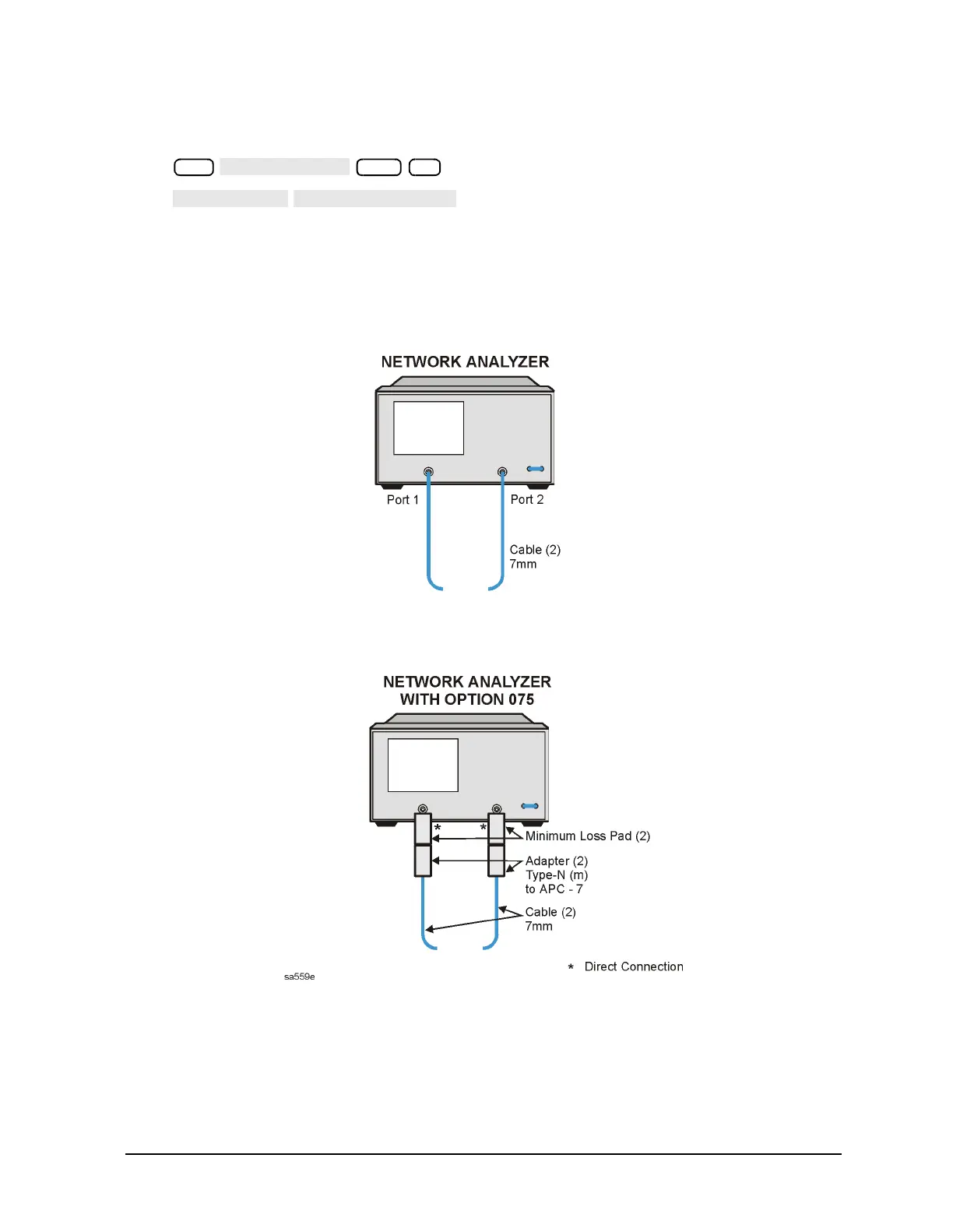

Figure 2-38 Full 2-Port Calibration
32.Perform a full 2-port error correction with isolation using the 85031B cal kit. If,
necessary, refer to your analyzer’s user’s guide for detailed information on performing
calibrations.
Cal
−20 x1
