Chapter 4 143
Basic Digital Operation
Using Waveform Markers
Press Marker Routing > Pulse/RF Blank > Marker 1.

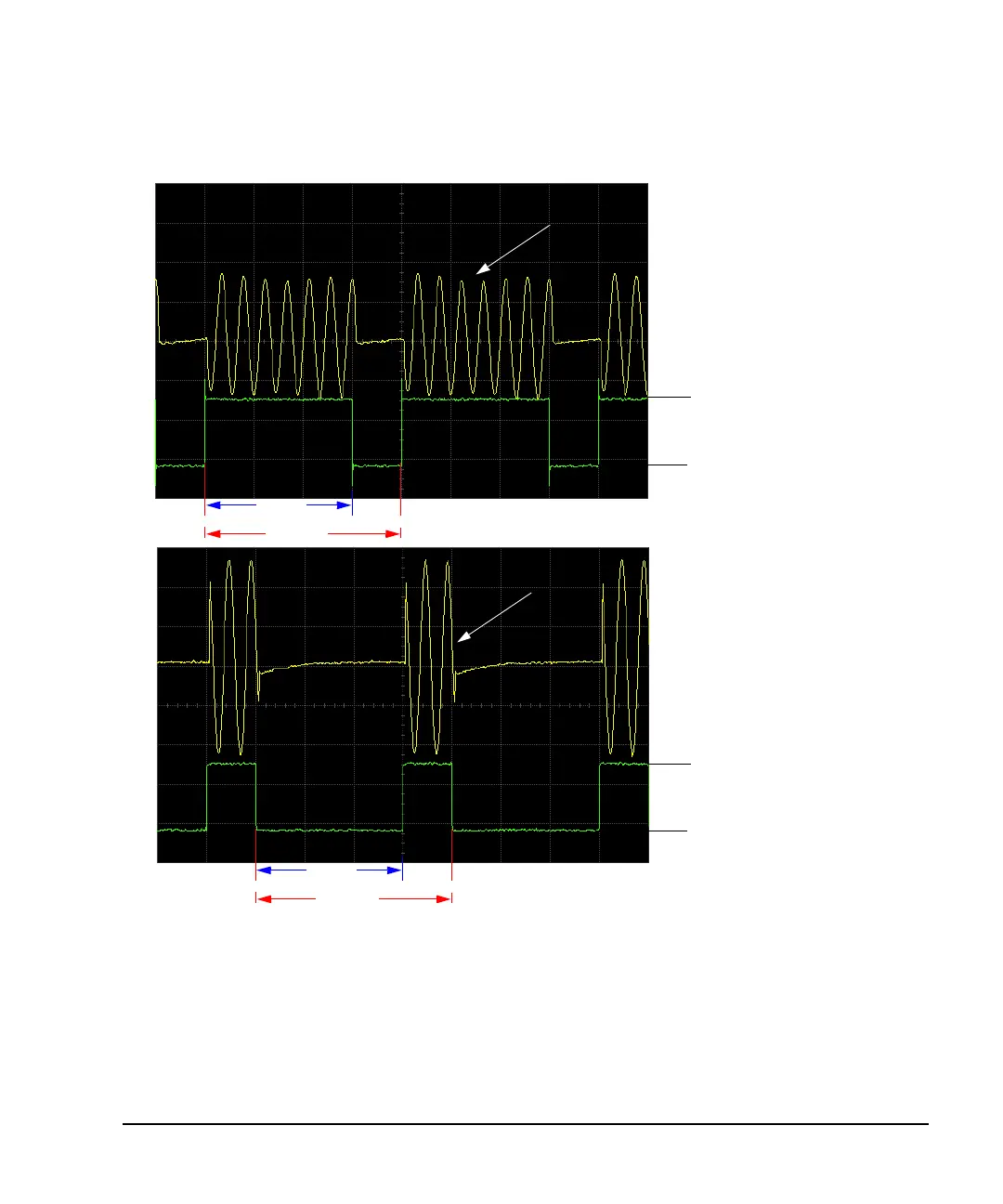

Marker Polarity = Positive
When marker polarity is positive (the
default setting), the RF output is blanked
during the
off
maker points.
200180
Point 1
Marker
Segment
RF Signal
RF Signal
200180
Point 1
Marker
Segment
Marker Polarity = Negative
When marker polarity is negative, the
RF output is blanked during the
on
maker points
≈3.3V
0V
≈3.3V
0V
To Next Page
