Agilent Technologies E4438C User Manual

144 Chapter 4
Basic Digital Operation
Using Waveform Markers
Setting Marker Polarity
Setting a negative marker polarity inverts the marker signal.
1. In the

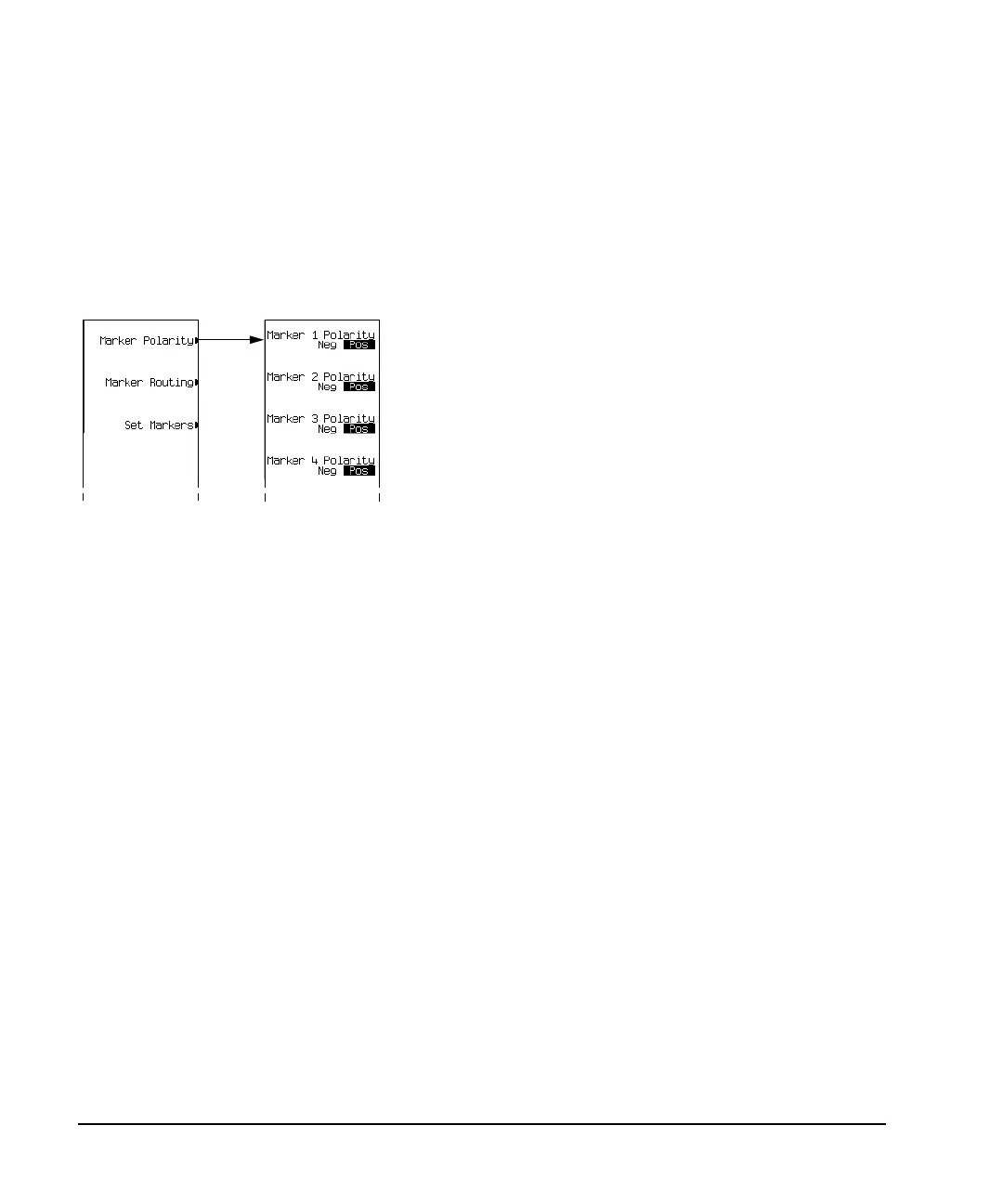

Marker Utilities menu (page 134), press Marker Polarity.
2. Select the marker polarity as desired for each marker number.
As shown on page 142:
Positive Polarity: On marker points are high (≈3.3V).
Negative Polarity: On marker points are low (0V).
Default Marker Polarity = Positive
Set each marker polarity independently.
See Also: “Saving Marker Polarity and Routing Settings” on page 130.
