Chapter 17 629
W-CDMA Downlink Digital Modulation for Receiver Test
Configuring Rear Panel Output Signals

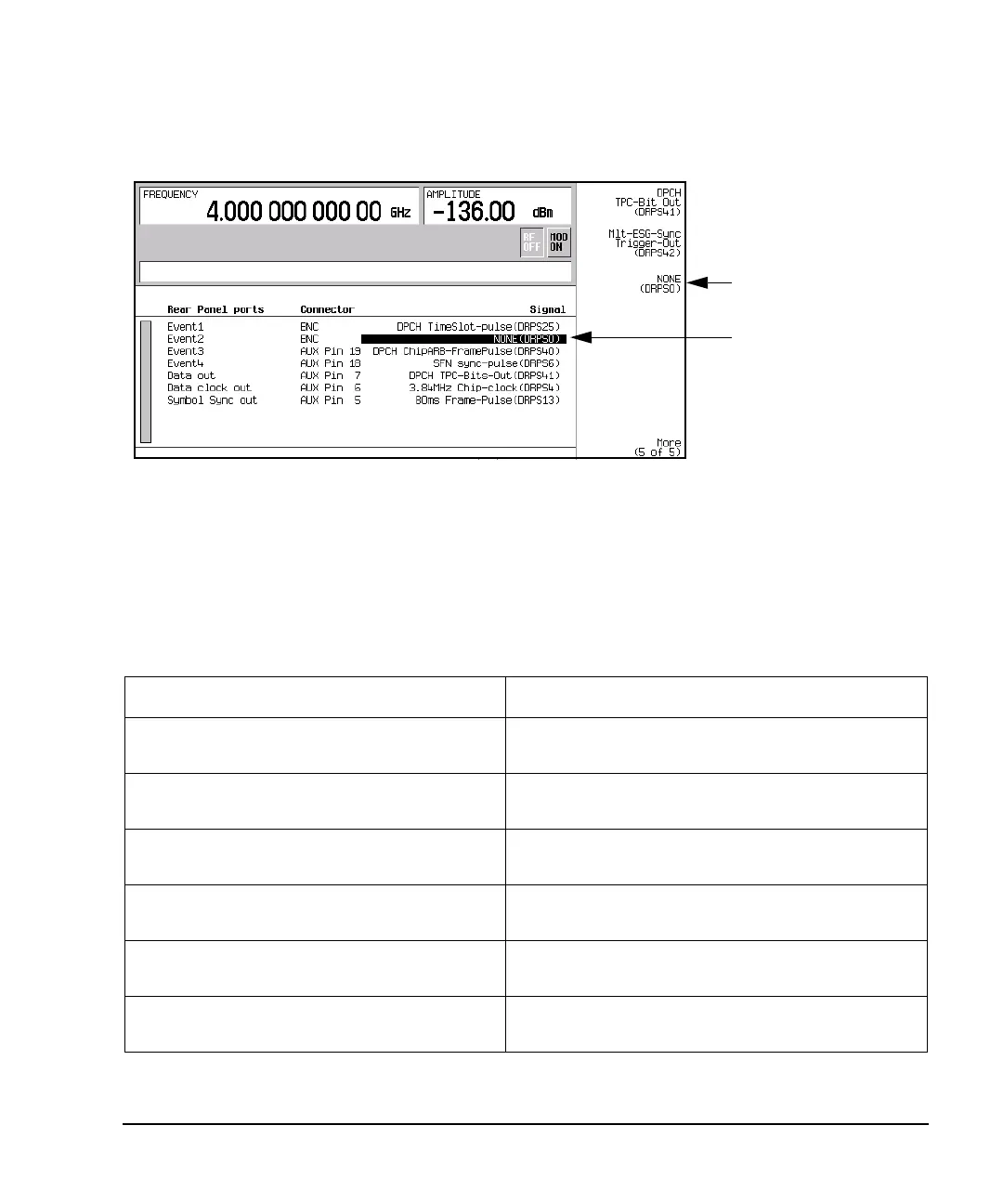

Figure 17-34 Deselected Signal
Rear Panel Output Signal Descriptions
Table 17-2 describes the different downlink rear panel output signals available on the ESG. The DRPSxx
designator, shown in parenthesis, refers to the remote SCPI command parameter that corresponds to the
particular softkey selection. For example, the designator DRPS4 refers to the SCPI command parameter for
a 3.84 MHz chip-clock signal.
Table 17-2 Downlink Rear Panel Output Signals
Signal Name Description
3.84 MHz chip-clk (DRPS4) Assigns a 3.84 MHz chip clock signal to the selected
rear panel output port.
SFN reset-signal (DRPS5) Assigns a system frame number (SFN) reset-signal to
the selected rear panel output port.
SFN sync pulse (DRPS6) Assigns a system frame number (SFN) synchronization
pulse to the selected rear panel output port.
SCH slot pulse (DRPS10) Assigns the synchronization channel pulse to the
selected rear panel output port.
10ms Frame pulse (DRPS11) Assigns the 10 millisecond frame pulse to the selected
rear panel output port.
80ms Frame pulse (DRPS13) Assigns the 80 millisecond frame pulse to the selected
rear panel output port.
Now, No Output
Signal is Selected
NONE(DRPS0)
Softkey
