244 Chapter 7
Digital Signal Interface Module
Operating the N5102A Module in Input Mode
Selecting the Input Direction
If both Option 003 (output mode) and Option 004 (input mode) are installed, you must select the input
direction.
Press
Data Setup > Direction Input Output to Input and press Return.
NOTE If only Option 004 is installed, the direction softkey will be unavailable and the mode will
always be input.
Choosing the Logic Type and Port Configuration

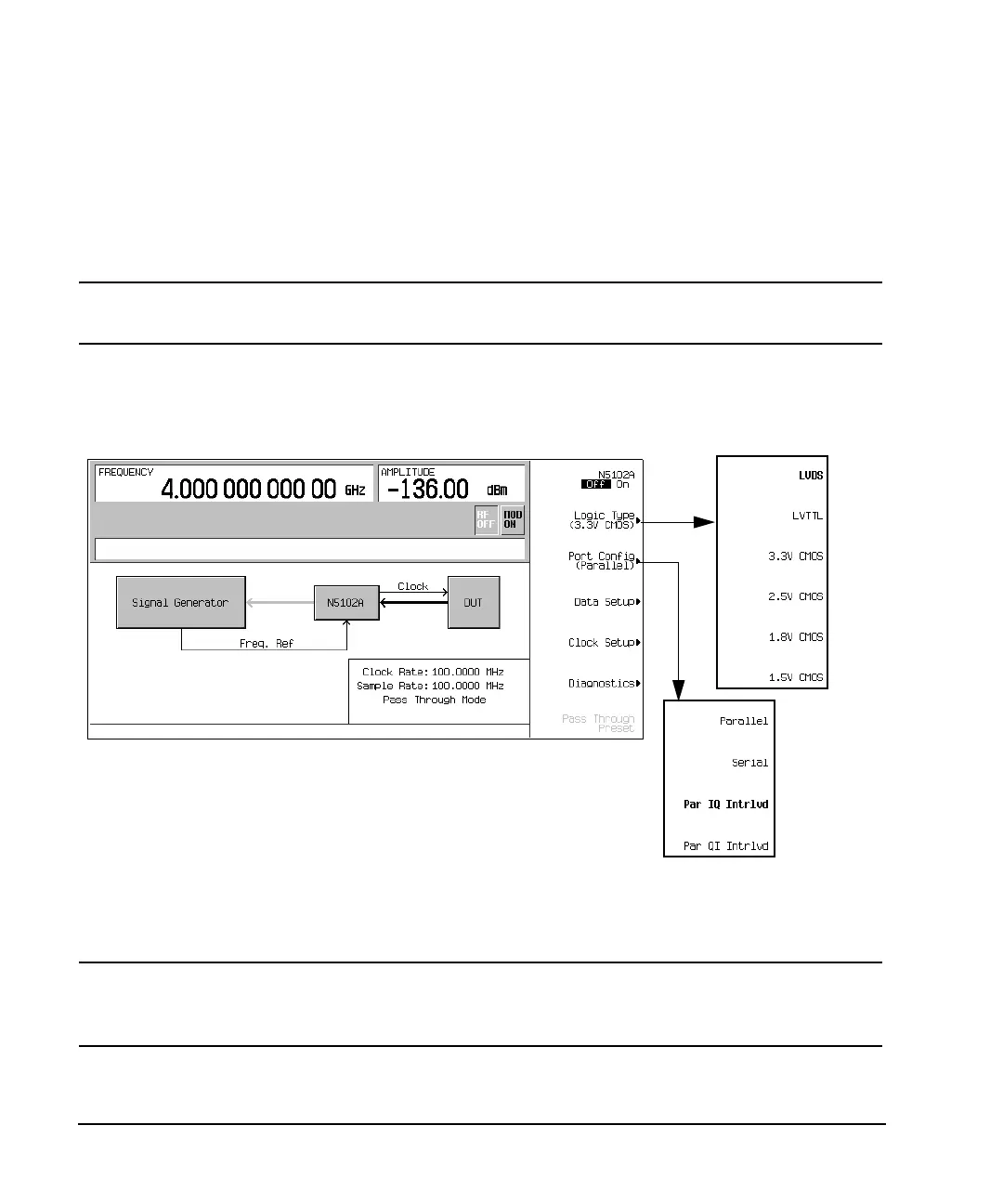

Figure 7-16 Logic and Port Configuration Softkey Menus
1. Refer to Figure 7-16. Press the
Logic Type softkey.
From this menu, choose a logic type.
CAUTION Changing the logic type can increase or decrease the signal voltage level. To avoid
damaging the device and/or the N5102A module, ensure that both are capable of handling
the voltage change.
