Using Table Editors
Using Table Editors
The signal generator table editors enable you to simplify configuration tasks, such as creating a list sweep.
This section familiarizes you with basic table editor functionality using the List Mode Values table editor as
an example.
Press
Preset > Sweep/List > Configure List Sweep.

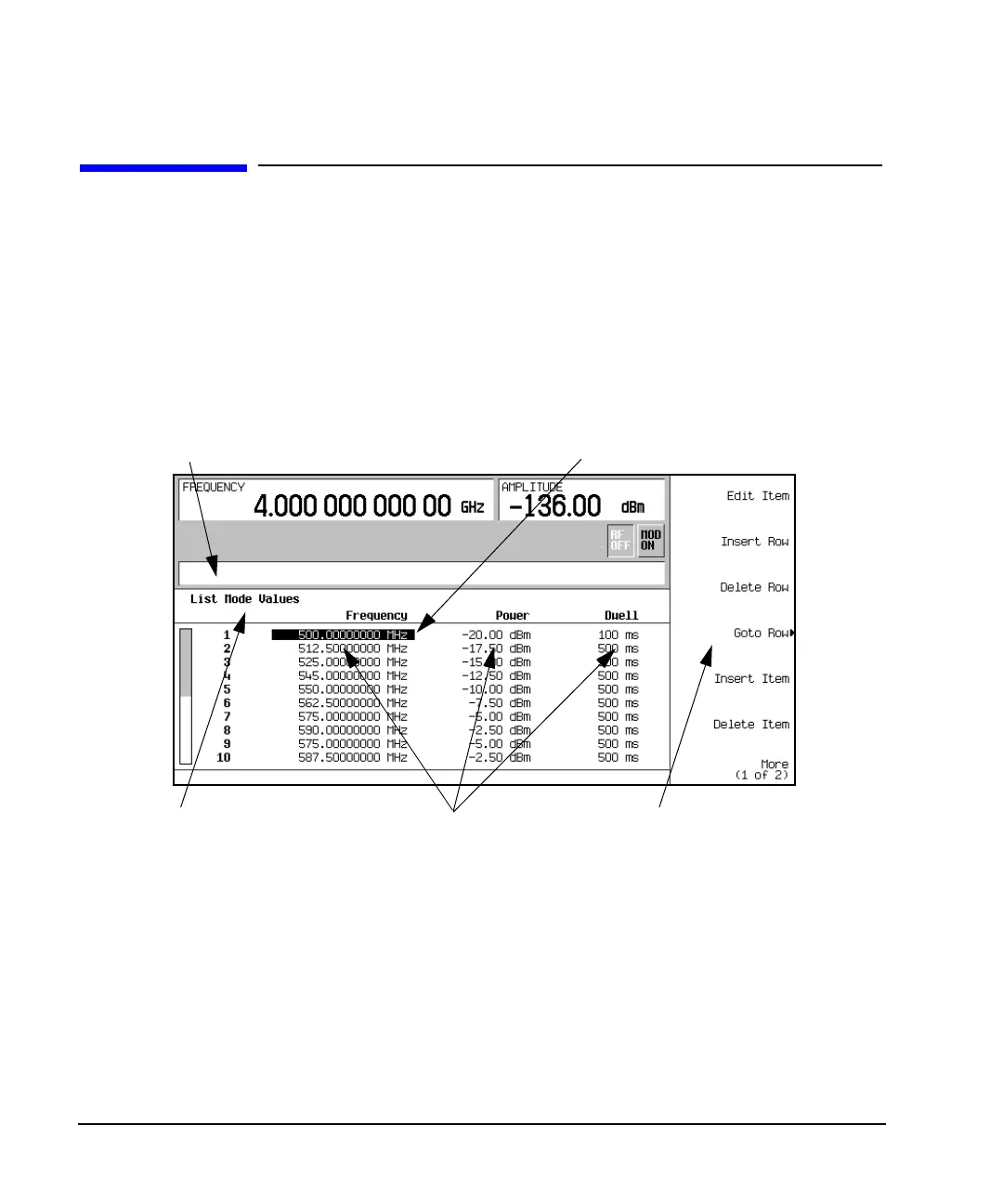

The signal generator displays the List Mode Values table editor, as shown below.
Figure 3-1
Active Function Area displays the active table item while its value is edited.
Cursor an inverse video identifier used to highlight specific table items for
selection and editing.
Table Editor Softkeys select table items, preset table values, and modify table structures.
Table Items values arranged in numbered rows and titled columns (The columns
are also known as data fields. For example, the column below the
Frequency title is known as the Frequency data field).
Cursor
Table Editor Softkeys
Table Editor Name
Table Items
Active Function Area
