Agilent Technologies E4438C User Manual

Chapter 16 575
W-CDMA Uplink Digital Modulation for Receiver Test
DPCCH/DPDCH Frame Structure
DPCCH/DPDCH Frame Structure
This section contains graphical representations of W-CDMA frame structures, with associated tables, for
uplink channels.

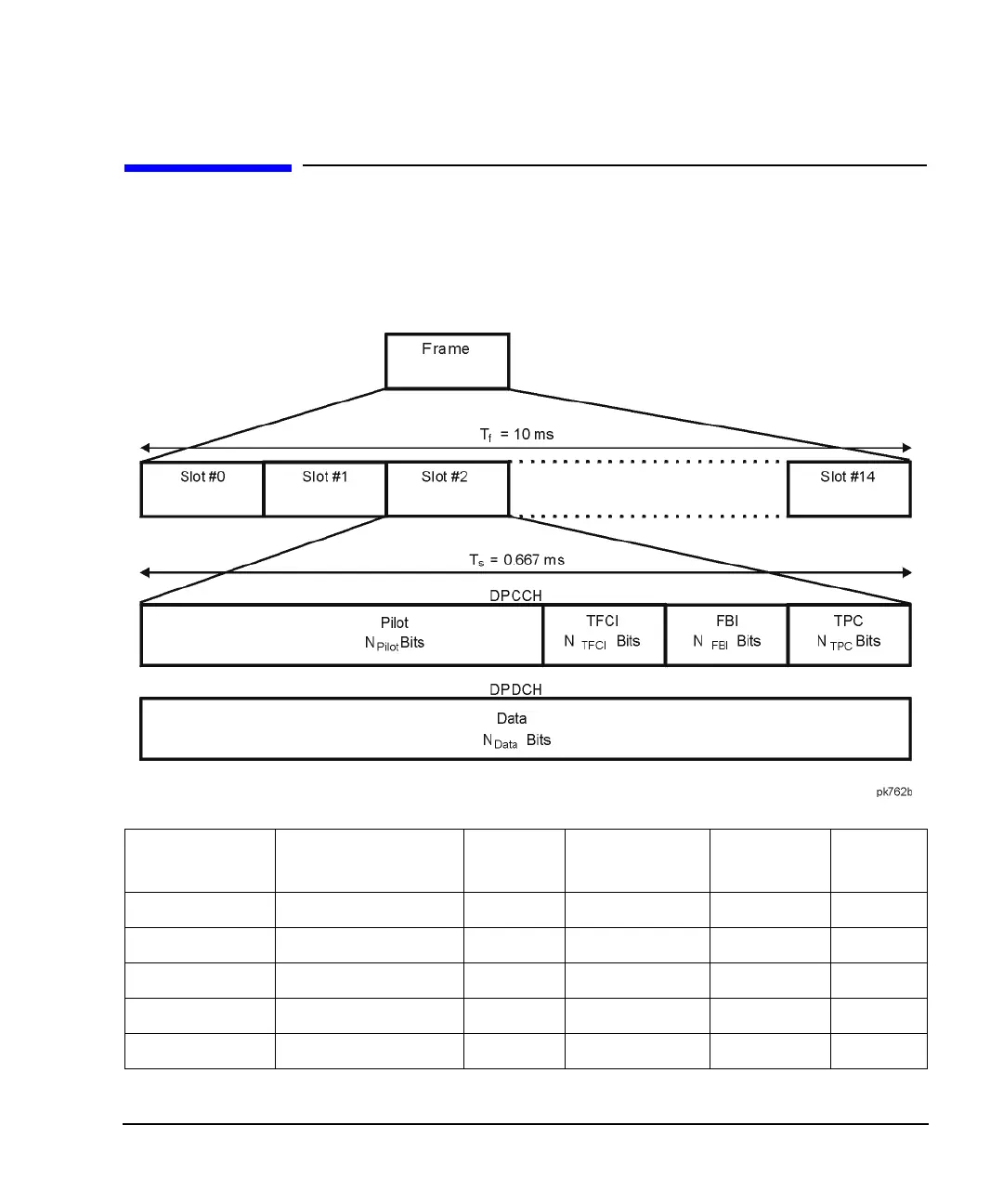

Figure 16-90 DPCCH/DPDCH Frame Structure
Table 16-11 DPDCH Fields
Channel Bit Rate
(kbps)
Channel Symbol Rate
(ksps)
Spread
Factor
Bits/Frame Bits/Slot
N
data
15 15 256 150 10 10
30 30 128 300 20 20
60 60 64 600 40 40
120 120 32 1200 80 80
240 240 16 2400 160 160
