442 Chapter 15
W-CDMA Digital Modulation for Component Test
W-CDMA Frame Structures
Uplink DPCCH/DPDCH Frame Structure

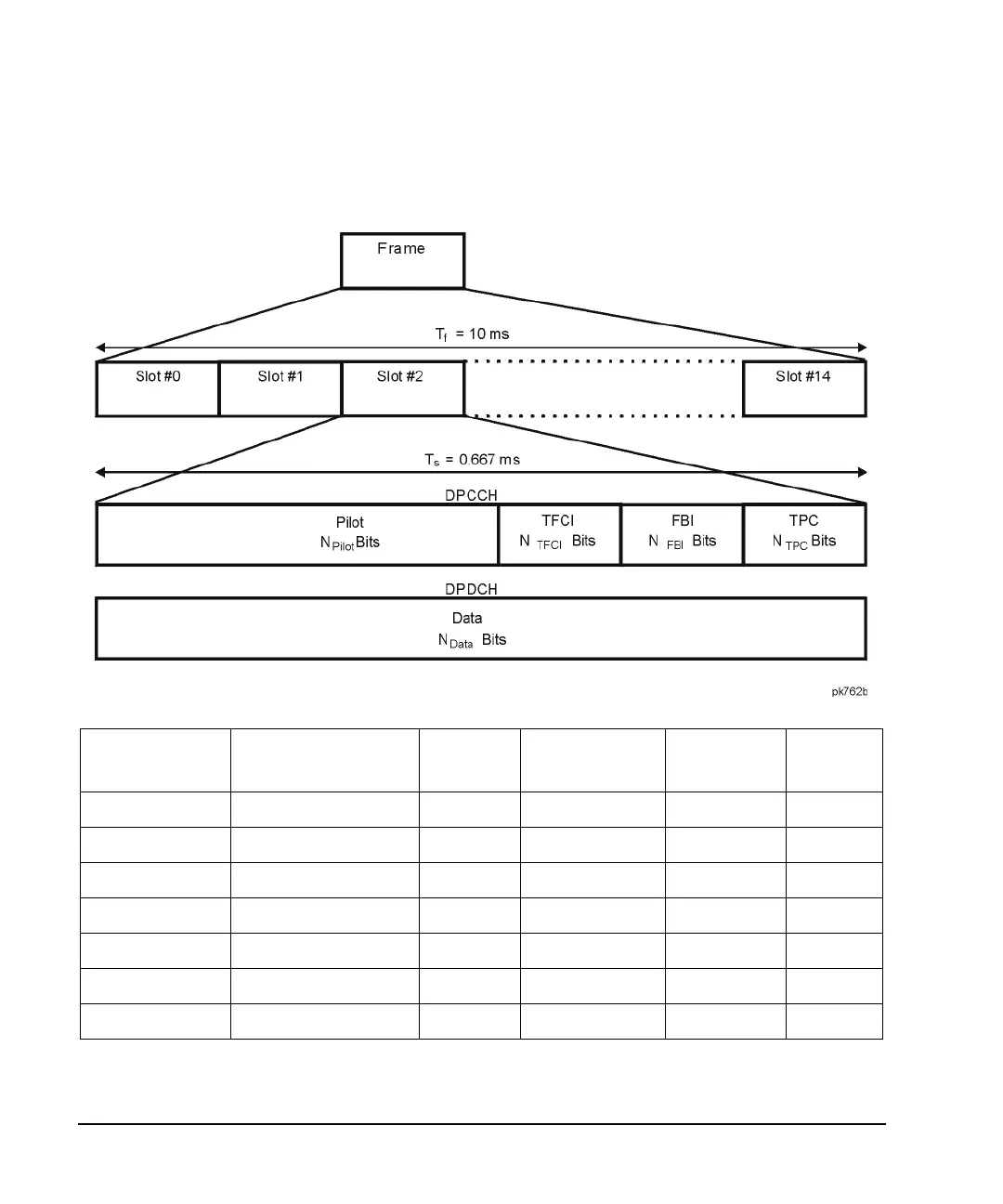

Figure 15-20 DPCCH/DPDCH Frame Structure
Tabl e 15- 8 DP DC H F ie lds
Channel Bit Rate
(kbps)
Channel Symbol Rate
(ksps)
Spread
Factor
Bits/Frame Bits/Slot
N
data
15 15 256 150 10 10
30 30 128 300 20 20
60 60 64 600 40 40
120 120 32 1200 80 80
240 240 16 2400 160 160
480 480 8 4800 320 320
960 960 4 9600 640 640
