Agilent Technologies E4438C User Manual

612 Chapter 17
W-CDMA Downlink Digital Modulation for Receiver Test
Setting Up for a Compressed Mode Signal

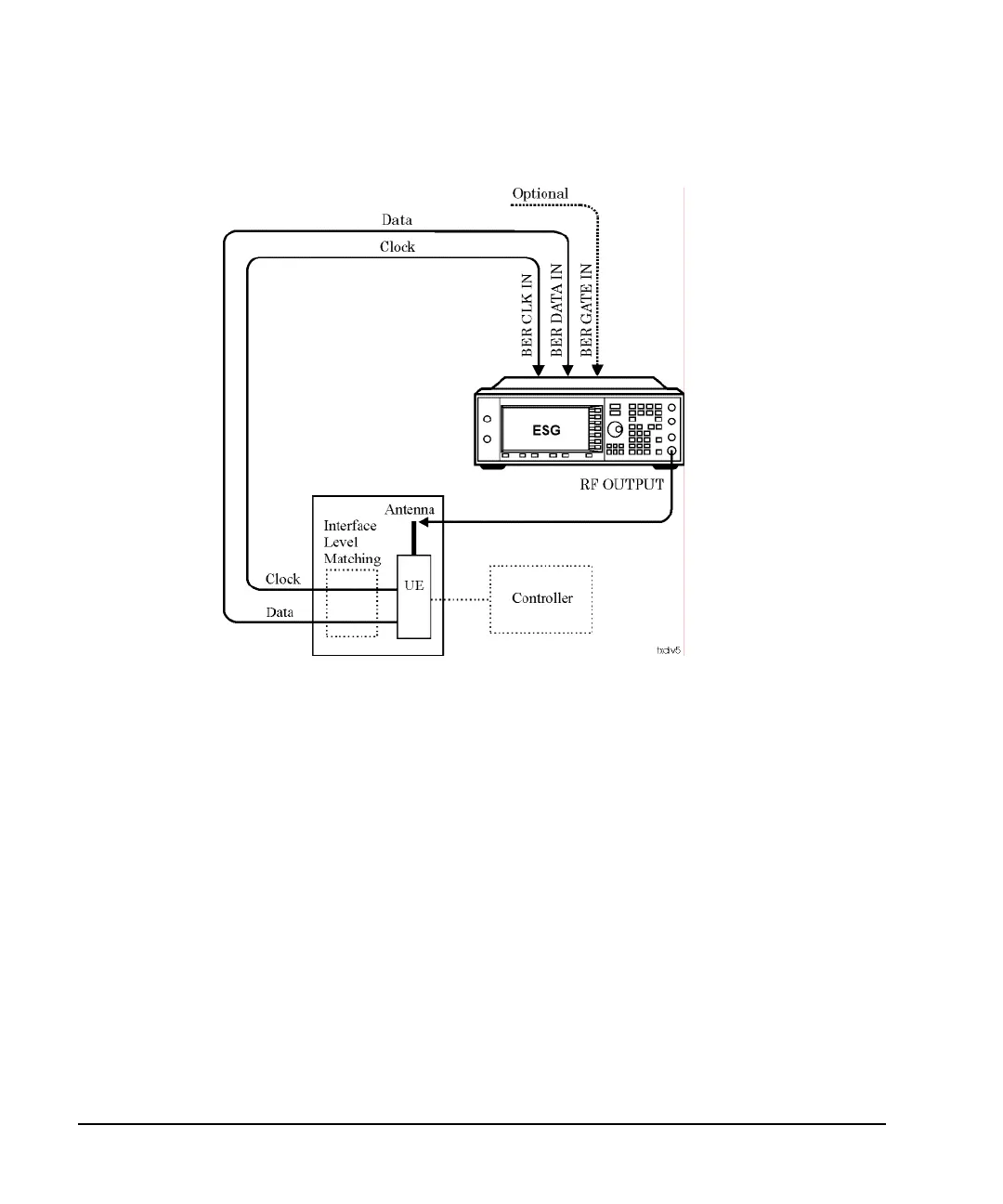

Figure 17-24 Compressed Mode Setup for BERT
Setting the RF Output
1. Press the Preset hardkey.
2. Set the frequency and amplitude values.
3. Press the
RF On/Off hardkey to On.
Steps two and three can be performed either before or after setting the W-CDMA signal parameters.
However they must be done before the power search is performed in the task, “Performing a Manual Power
Search” on page 617.
