W-CDMA Downlink Digital Modulation for Receiver Test
Configuring Rear Panel Output Signals
Configuring Rear Panel Output Signals
The W-CDMA downlink format provides you the ability to configure output signals for the various rear
panel output connectors. This lets you control trigger signals based on your needs. Unlike the rear panel
input signals, the ESG does not have to be in a particular mode to select any of the rear panel output signals.
However the correct feature (transmit diversity, compressed mode, out-of-synchronization testing, etc.) must
be active before some signals are available at the rear panel. For example, if you select the
DPCH Compressed
Frame Indicator(DRPS32)
as an output trigger signal, the ESG must be transmitting a compressed mode signal
before this rear panel trigger is realized. This section guides you through the softkey menus to where you
can configure your signals.
Accessing the Rear Panel Output Signal Menu
1. Press Mode > W-CDMA > Real Time W-CDMA > Link Down Up to Down (default).
This is the first-level W-CDMA softkey menu.
2. Press
More (1 of 2) > Rear Panel Output Setup.
Selecting an Output Signal
1. Using the arrow keys, highlight the item in the Signal column that corresponds to the Event2
connector listed in the Rear Panel Ports column. This is shown in Figure 17-32.

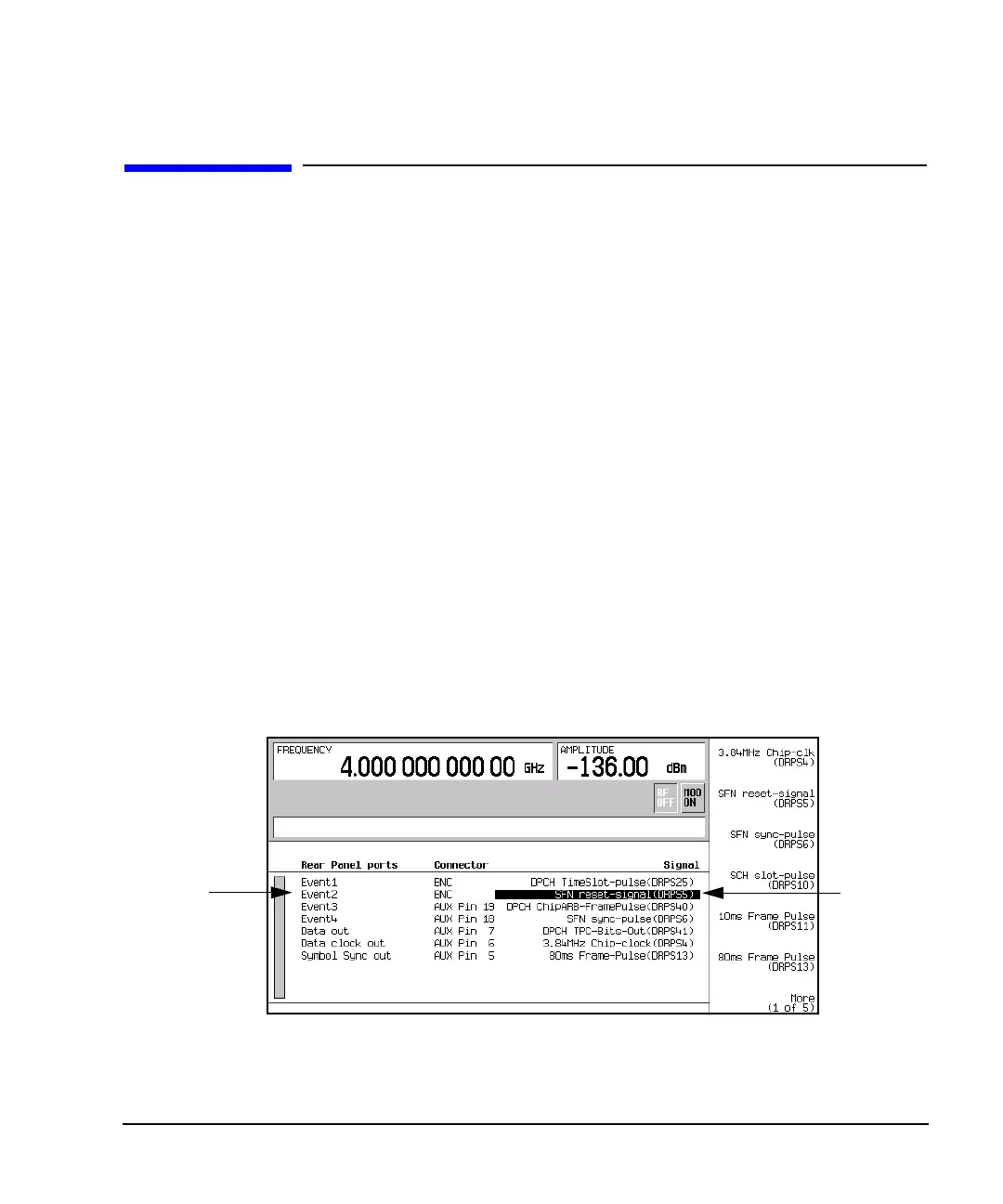

Figure 17-32 Output Connector Selection
Event2 Connector
Selection
Highlighted
Item
To Next Page
