626 Chapter 17
W-CDMA Downlink Digital Modulation for Receiver Test
Locating Rear Panel Input Signal Connectors

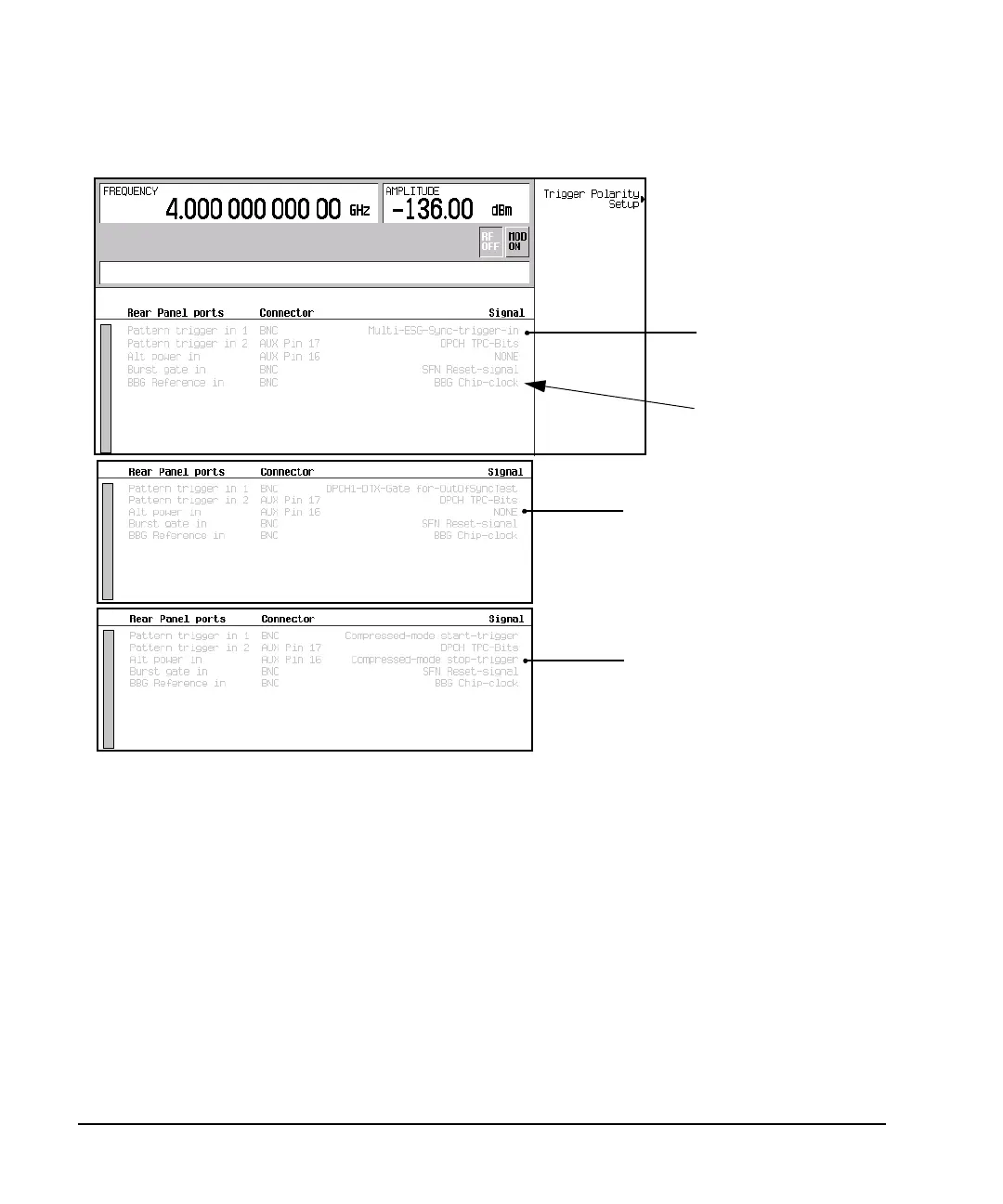

Figure 17-31 Rear Panel Input Signal Connector Information
3. To exit this display, press either
Mode Setup to return to the first-level W-CDMA softkey menu or press
Return until you come to the desired softkey menu/display.
Default Input Signal
(Tx Diversity) Display
Compressed Mode Input
Signal Display
Out of Synchronization Test
Input Signal Display
NOTE: The Out of Synchronization Test
must be on to see this display
NOTE: Compressed Mode must
be on to see this display
BBG Reference in
Signal Type
To Next Page
