Agilent Technologies E4438C User Manual

590 Chapter 17
W-CDMA Downlink Digital Modulation for Receiver Test
Configuring for Transmit Diversity and BERT
Connection Diagram
Refer to Figure 17-10 and connect the cables for the ESGs and the UE.

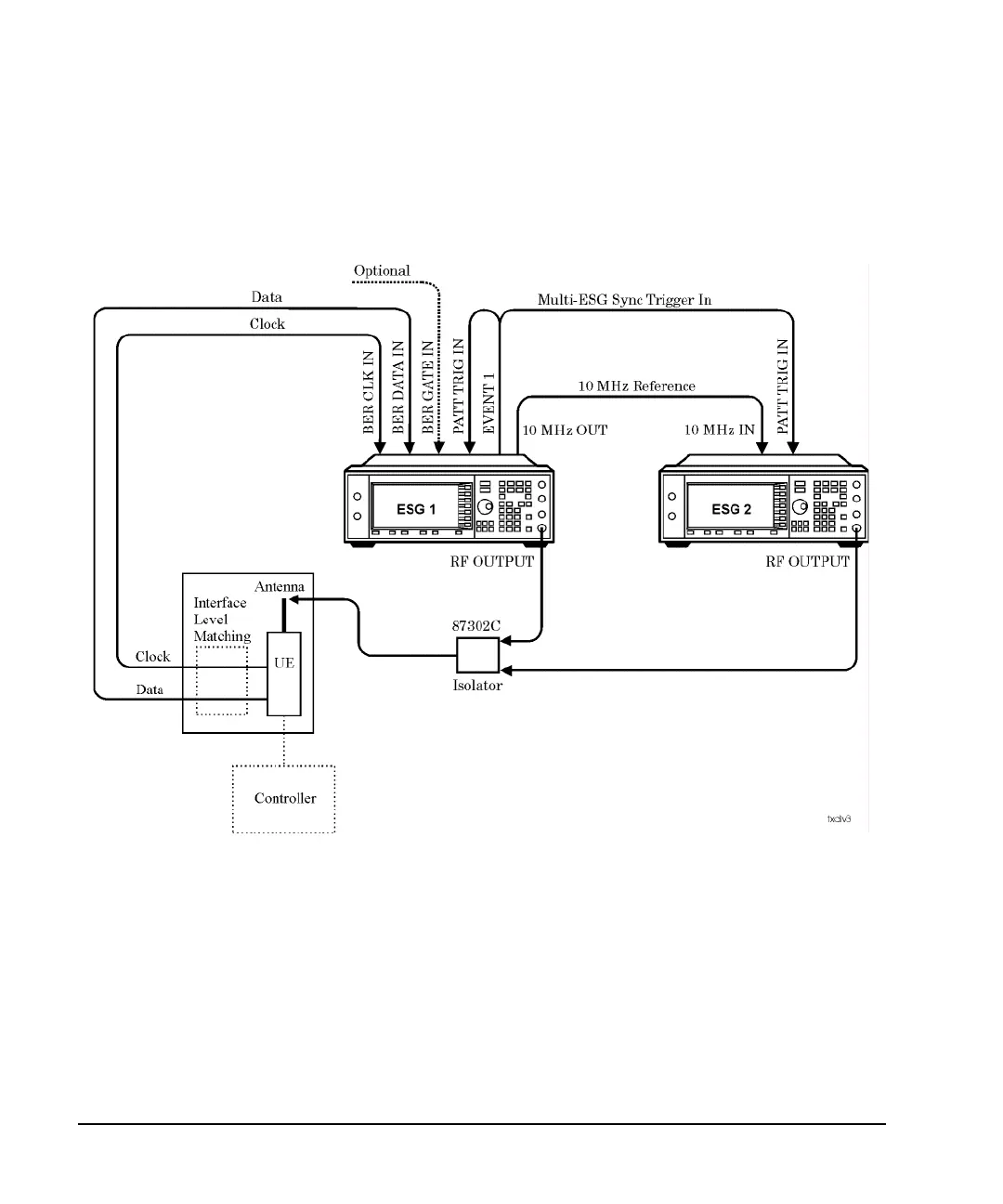

Figure 17-10 Transmit Diversity Setup with BERT
Configuring the RF Output for both ESGs
1. Press the Preset hardkey.
2. Set the frequency and amplitude values.
3. Press the
RF On/Off hardkey to On.
Steps two and three can be performed either before or after setting the W-CDMA signal parameters.
