Chapter 2 37
E4438C Vector Signal Generator Overview
Rear Panel Overview
Rear Panel Overview
The signal generator rear panel (Figure 2-3) provides input, output, and remote interface connections.
Figure 2-4 shows a portion of the rear panel for signal generators with Option 1EM, which moves front
panel connectors to the rear panel. For Option 1EM connectors not described in this section, see
“Front Panel Overview” on page 26.

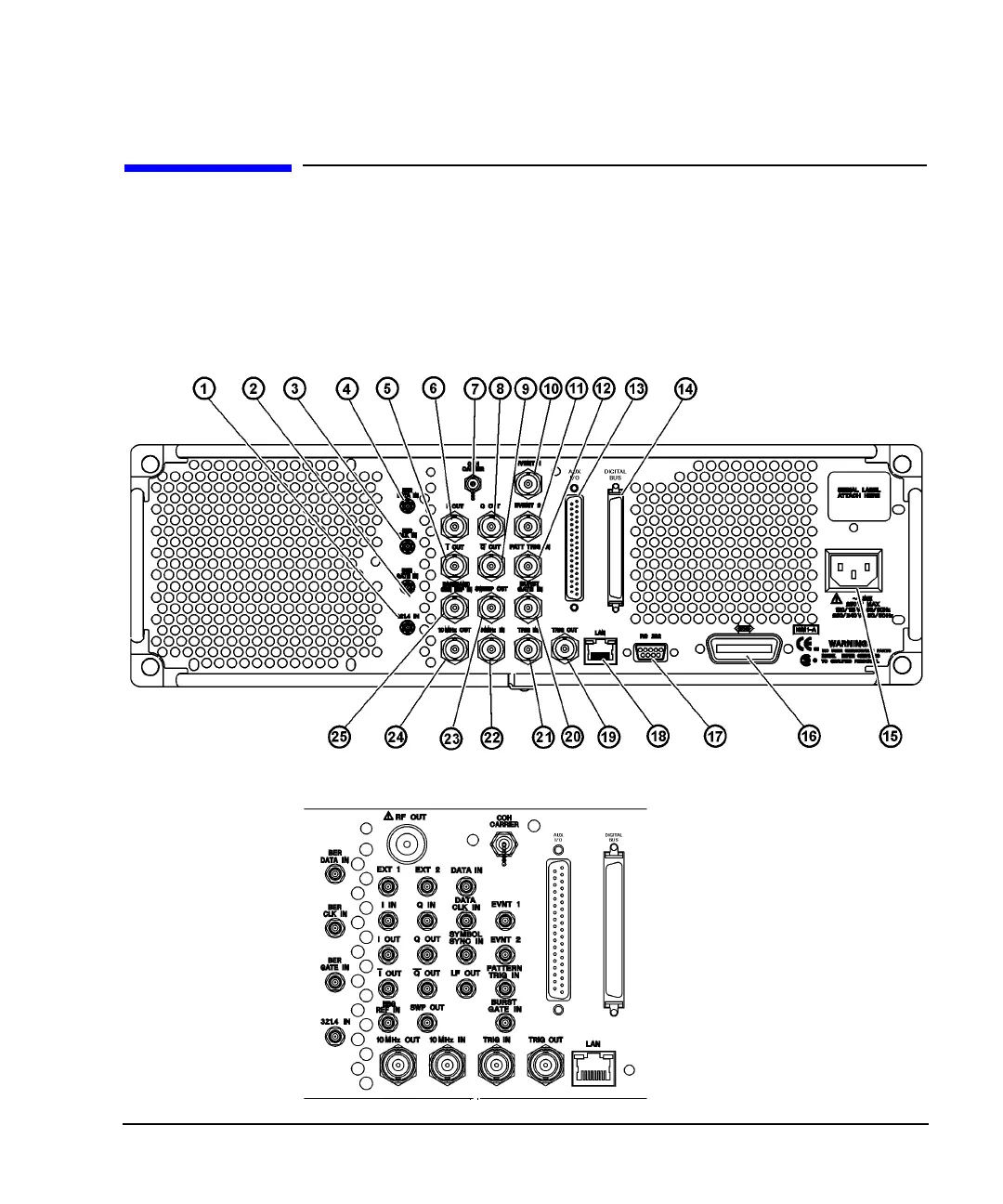

Figure 2-3 Rear Panel Feature Overview
Figure 2-4
