236 Chapter 7
Digital Signal Interface Module
Operating the N5102A Module in Output Mode
4. Select the port configuration for the device.
Selecting the Output Direction
Press Data Setup > Direction Input Output to Output and press Return.
NOTE If Option 003 is the only option installed, the direction softkey will be unavailable and the
mode will always be output. With both Option 003 (output mode) and Option 004 (input
mode) installed, the default direction is output.
Selecting the Data Parameters
This procedure guides you through the data setup menu. Softkeys that have self-explanatory names are
generally not mentioned. For example, the
Word Size softkey. For more information on all of the softkeys,
refer to Key and Data Field Reference.
1. Refer to Figure 7-11. Press the
Data Setup softkey.

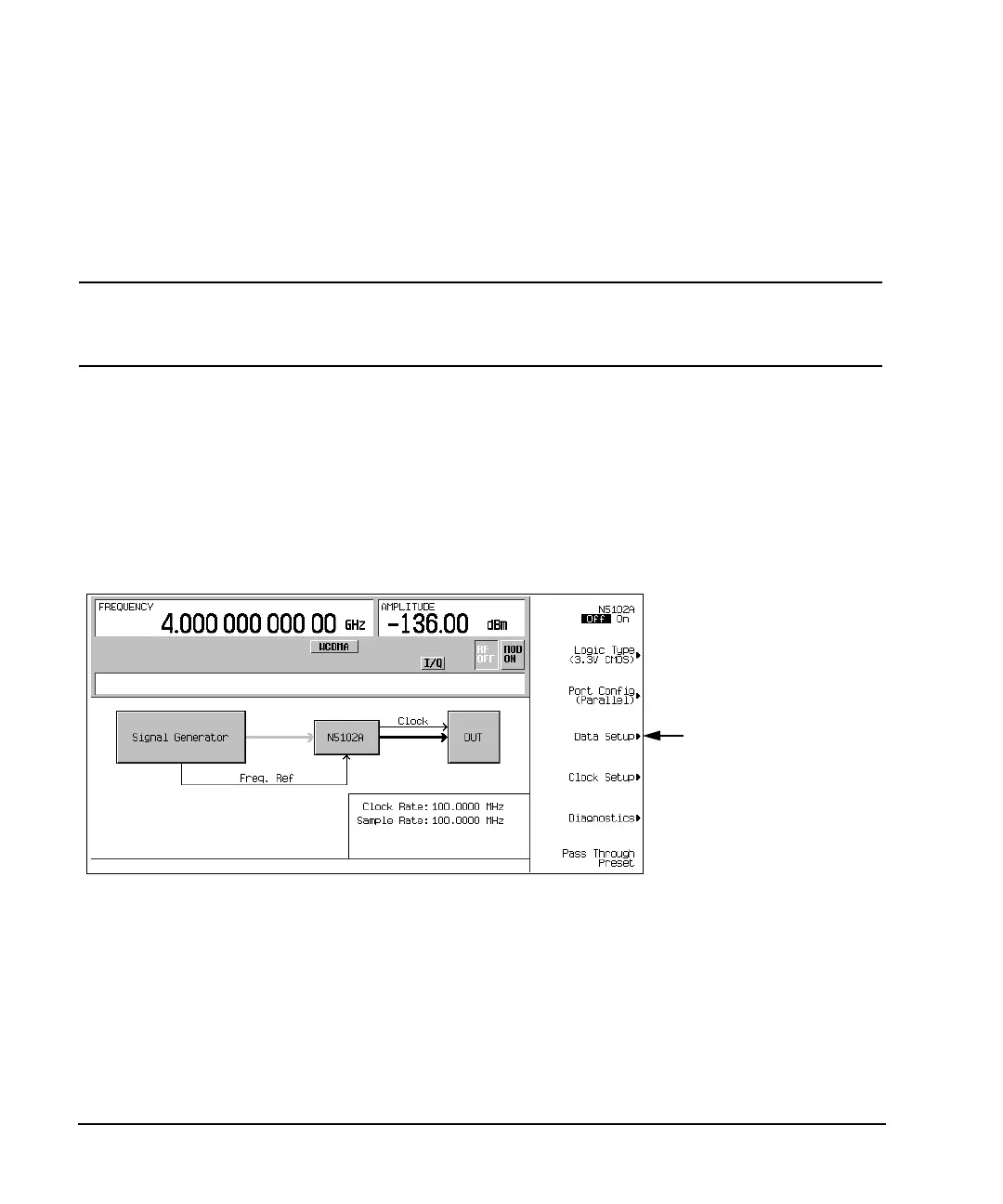

Figure 7-11 Data Setup Menu Location
This softkey menu accesses the various parameters that govern the data received by the device under
test. The status area of the display shows the number of data lines used for both I and Q along with the
clock position relative to the data. When the port configuration is parallel or parallel interleaved, the
number of data lines indicated is equivalent to the word (sample) size. When the port configuration is
serial, the display will show that only one I and one Q data line is being used along with the frame
marker that delineates the beginning of a sample. Figure 7-12 shows the data setup menu structure.
Accesses the data setup menu
To Next Page
