Chapter 4 199
Basic Digital Operation
Creating and Using Bit Files
Inverting Bit Values
1. Press
1011.

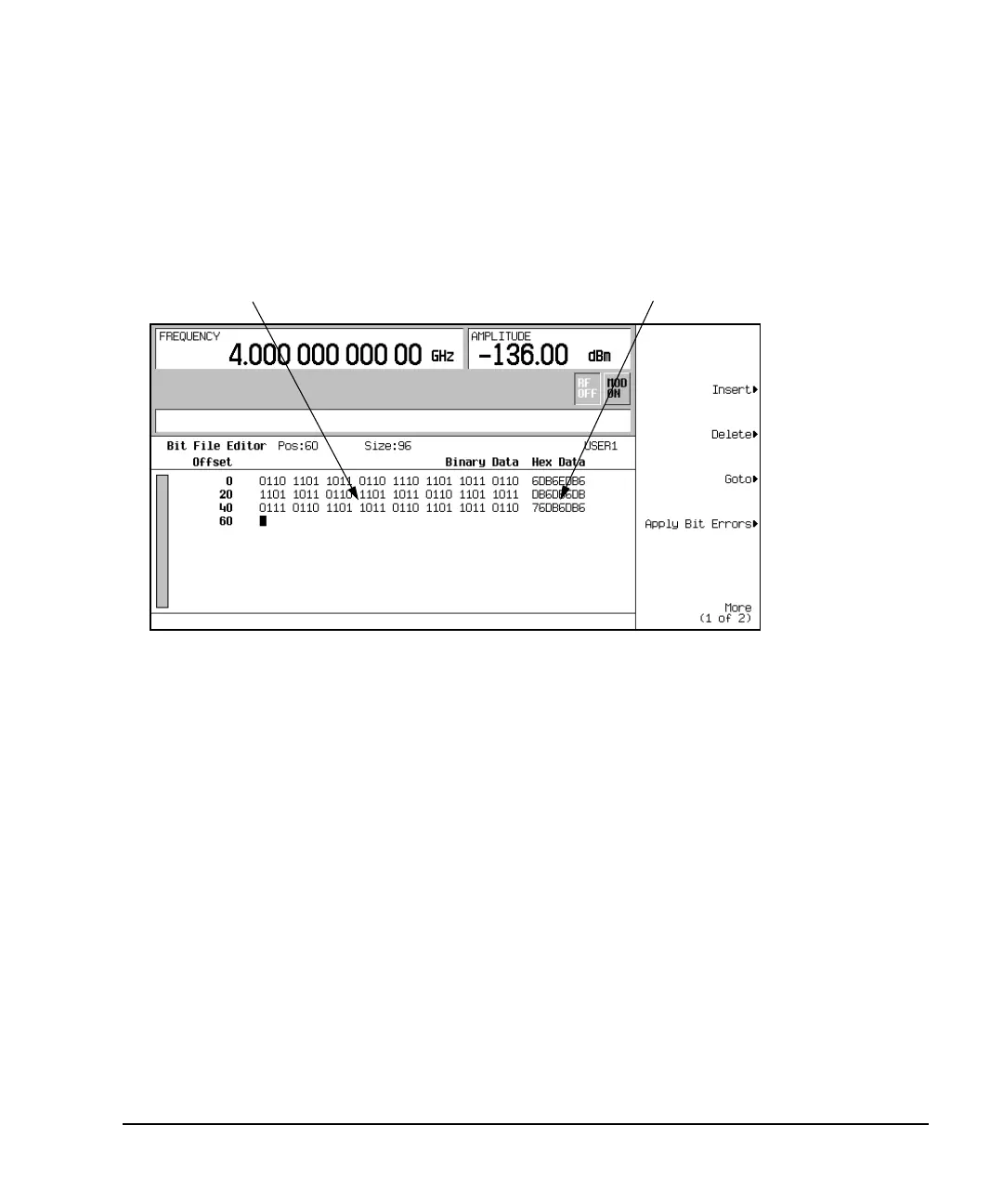

This inverts the bit values that are positioned 4C through 4F. Notice that hex data in this row has now
changed to 76DB6DB6, as shown in the following figure.
Applying Bit Errors to a User File
In this example, you learn how to apply bit errors to a user-defined data file. If you have not created and
stored a user-defined data file, complete the steps in the previous sections, “Creating a User File” on page
195 and “Renaming and Saving a User File” on page 197.
1. Press
Apply Bit Errors.
2. Press
Bit Errors > 5 > Enter.
3. Press
Apply Bit Errors.
Notice both
Bit Errors softkeys change value as they are linked.
Bits 4C through 4F inverted
Hex Data changed
