426 Chapter 15
W-CDMA Digital Modulation for Component Test
W-CDMA Uplink Modulation

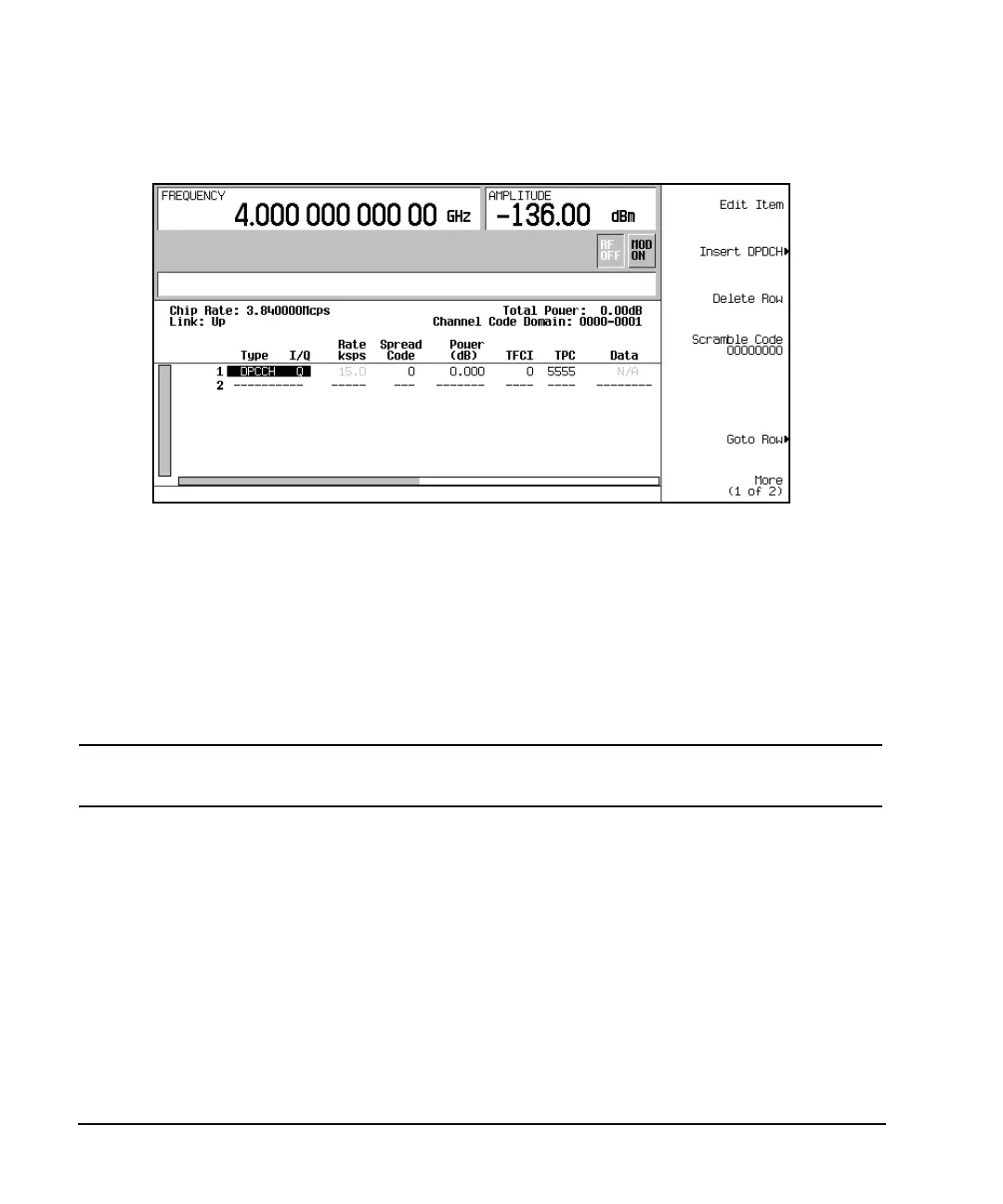

Figure 15-6
Editing Uplink Channel Parameters
1. Use the front panel knob or arrow keys to move the cursor to table row 1.
2. Highlight the TPC value (5555).
3. Press
Edit Item > 00FF > Enter.
The TPC value has now been modified and the cursor has moved to the next row in the TPC column. Other
channel parameters can be modified in the same manner.
NOTE TPC values are entered as hexadecimal digits (0-9, A-F). For information on what these
values represent, refer to “Understanding TPC Values” on page 431.
Inserting Additional Channels and Modifying I/Q Settings
1. Press
Insert DPDCH > Channels > 6 > Enter > Done.
2. Press
More (1 of 2) > Second DPDCH I Q until the letter I is highlighted.
The I/Q setting for the second DPDCH channel (row 3) has changed from Q to I. Additionally, all
subsequent channels have also switched I/Q settings, as shown in the following figure.
To Next Page
