Chapter 7 235
Digital Signal Interface Module
Operating the N5102A Module in Output Mode
Choosing the Logic Type and Port Configuration

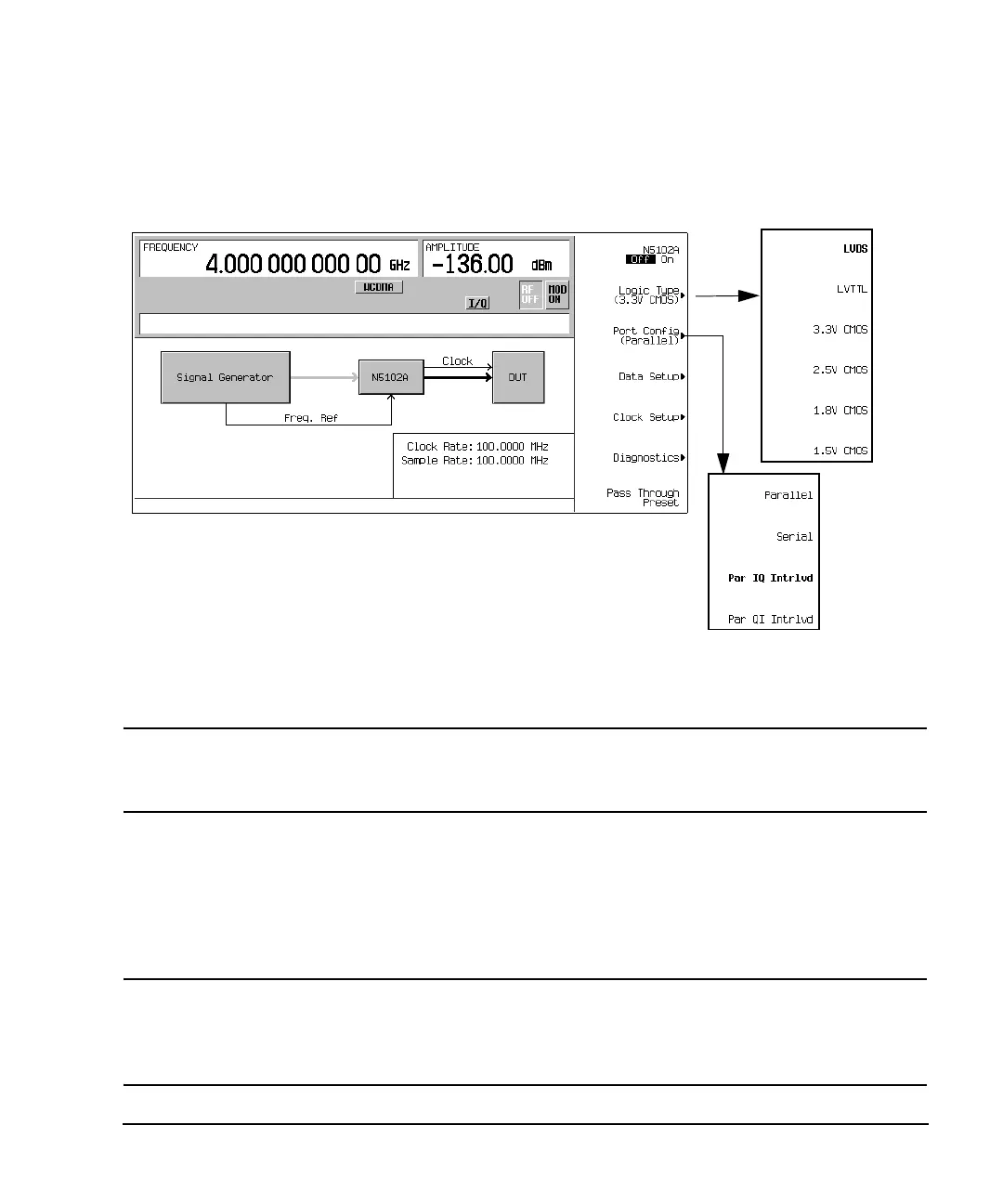

Figure 7-10 Logic and Port Configuration Softkey Menus
1. Refer to Figure 7-10. Press the
Logic Type softkey.
From this menu, choose a logic type.
CAUTION Changing the logic type can increase or decrease the signal voltage level going to the device
under test. To avoid damaging the device and/or the N5102A module, ensure that both are
capable of handling the voltage change.
2. Select the logic type required for the device being tested.
A caution message is displayed whenever a change is made to the logic types, and a softkey selection
appears requesting confirmation.
3. Refer to Figure 7-10. Press the
Port Config softkey.
In this menu, select either a serial, parallel, or parallel interleaved data transmission.
NOTE Within the data and clock setup softkey menus, some softkeys function relative to the
current configuration. Softkeys that are grayed out are not available for the current setup.
Refer to the help text to determine which parameter is causing the softkey to be unavailable.
Press the Help hardkey on the ESG front panel and then the softkey that is unavailable.
