16 Chapter 1

E4428C Analog Signal Generator Overview

Rear Panel Overview

Rear Panel Overview

The signal generator rear panel (Figure 1-3) provides input, output, and remote interface connections.

Figure 1-4 shows a portion of the rear panel for signal generators with Option 1EM, which moves front

panel connectors to the rear panel. For Option 1EM connectors not described in this section, see

“Front Panel Overview” on page 6.

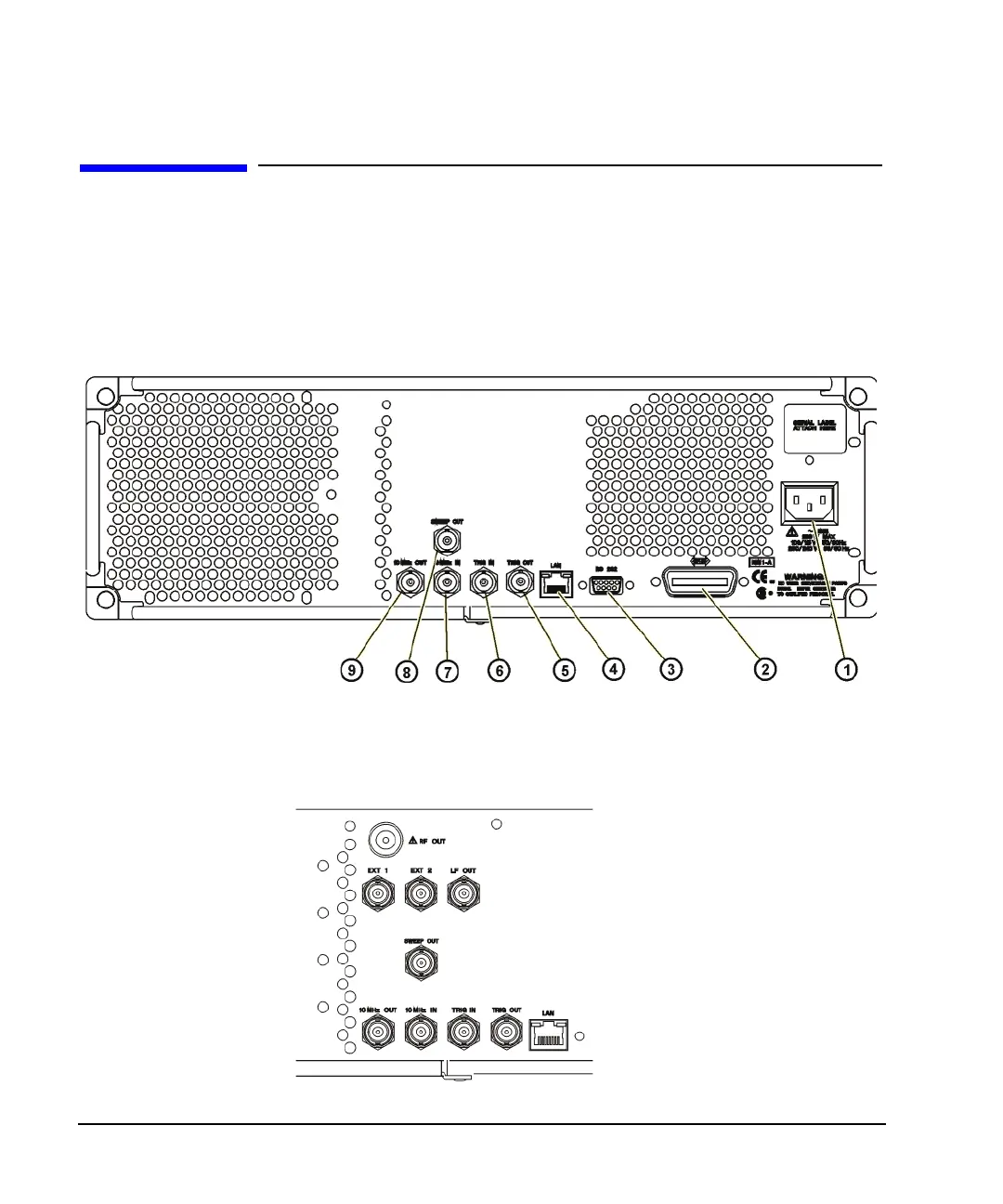

Figure 1-3 Rear Panel Feature Overview
