W-CDMA Uplink Digital Modulation for Receiver Test
DPCH

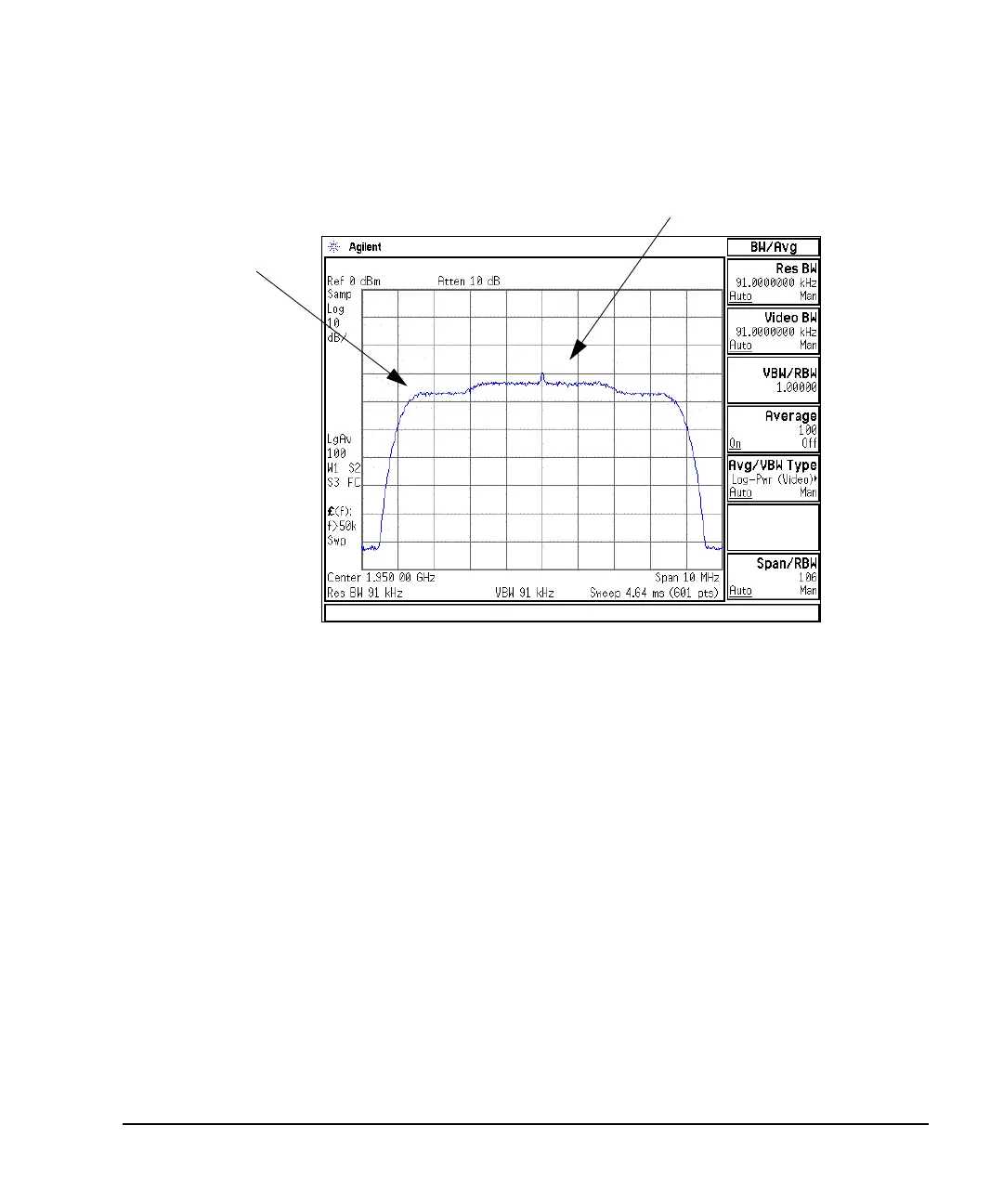

Figure 16-43 E
b
/N
o
Setting
Using the Transmit Power Control
The tasks in this procedure teach you how to set up dynamic DPCH power control using an external signal.
In this closed loop example, the ESG is used to communicate a UE response to TPC commands.
Connecting the ESG to a Base Transceiver Station
1. Connect the ESG to the base station as shown in Figure 16-44.
2. Configure the base station to send a TPC signal, and receive the RF signal.
Added Noise Level
W-CDMA Signal
