W-CDMA Uplink Digital Modulation for Receiver Test
Configuring Rear Panel Output Signals
Deselecting an Output Signal
This procedure builds upon the previous procedure “Selecting an Output Signal”.
1. Press
More (3 of 3).
This returns you to the top-level output signal selection display shown in Figure 16-66.
2. Highlight the Event2 connector listing.
3. Press
NONE(RPSO).
Notice that the output signal selection listed in the Signal column has changed to None(RPSO). The
none indicates that there is no signal output selected for the corresponding connector.

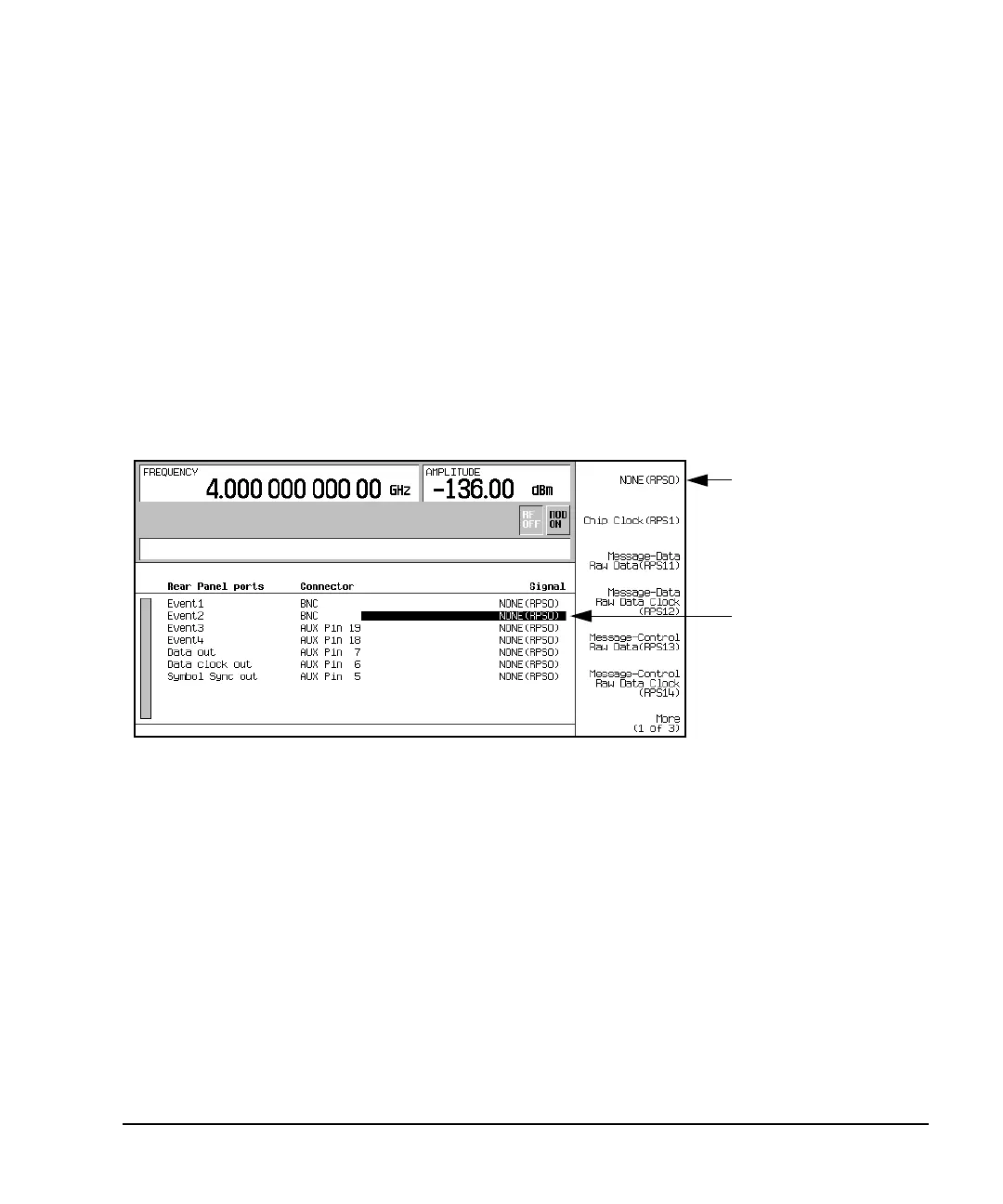

Figure 16-68 Deselected Signal
Now, No Trigger
is Selected
NONE(RPSO)
Softkey
To Next Page
