Chapter 4 191
Basic Digital Operation
User-Defined I/Q Maps
Editing I and Q Values
1. Press
.235702 > Enter.
2. Press
.235702 > Enter.
As you enter the numbers using the numeric keypad, they are displayed in the active entry area. If you
make a mistake, use the backspace key and then retype. The I value updates and the highlight moves to
the first Q entry. Next, the Q value updates and the highlight moves to the following I entry.
Displaying the I/Q Map
Press
More (2 of 2) > Display I/Q Map.

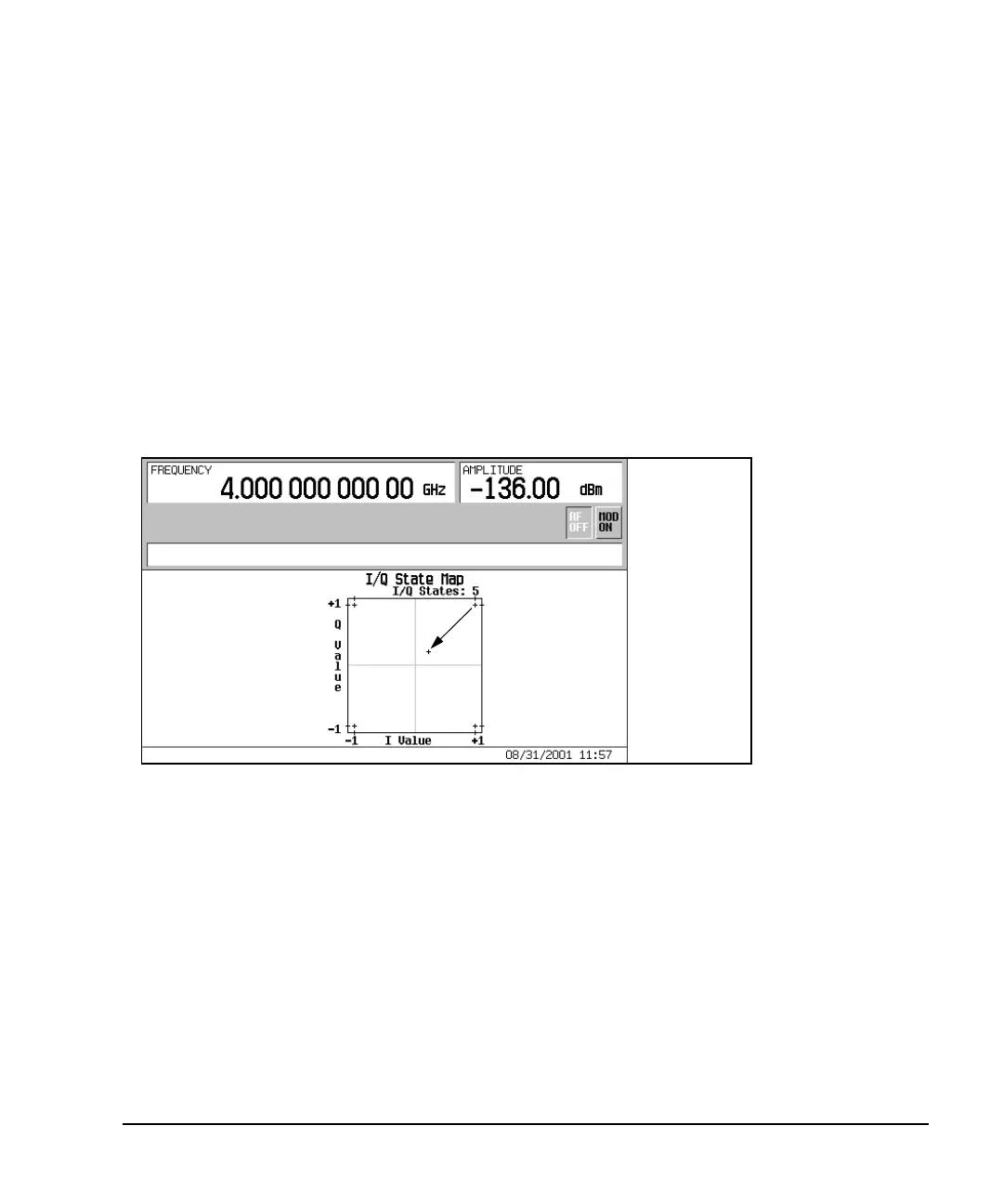

Note that one symbol has moved, as shown.
For instructions on storing this modified I/Q map to the signal generator’s memory catalog, see “Storing a
User-Defined I/Q Map File” on page 190.
