Digital Signal Interface Module
Clock Timing

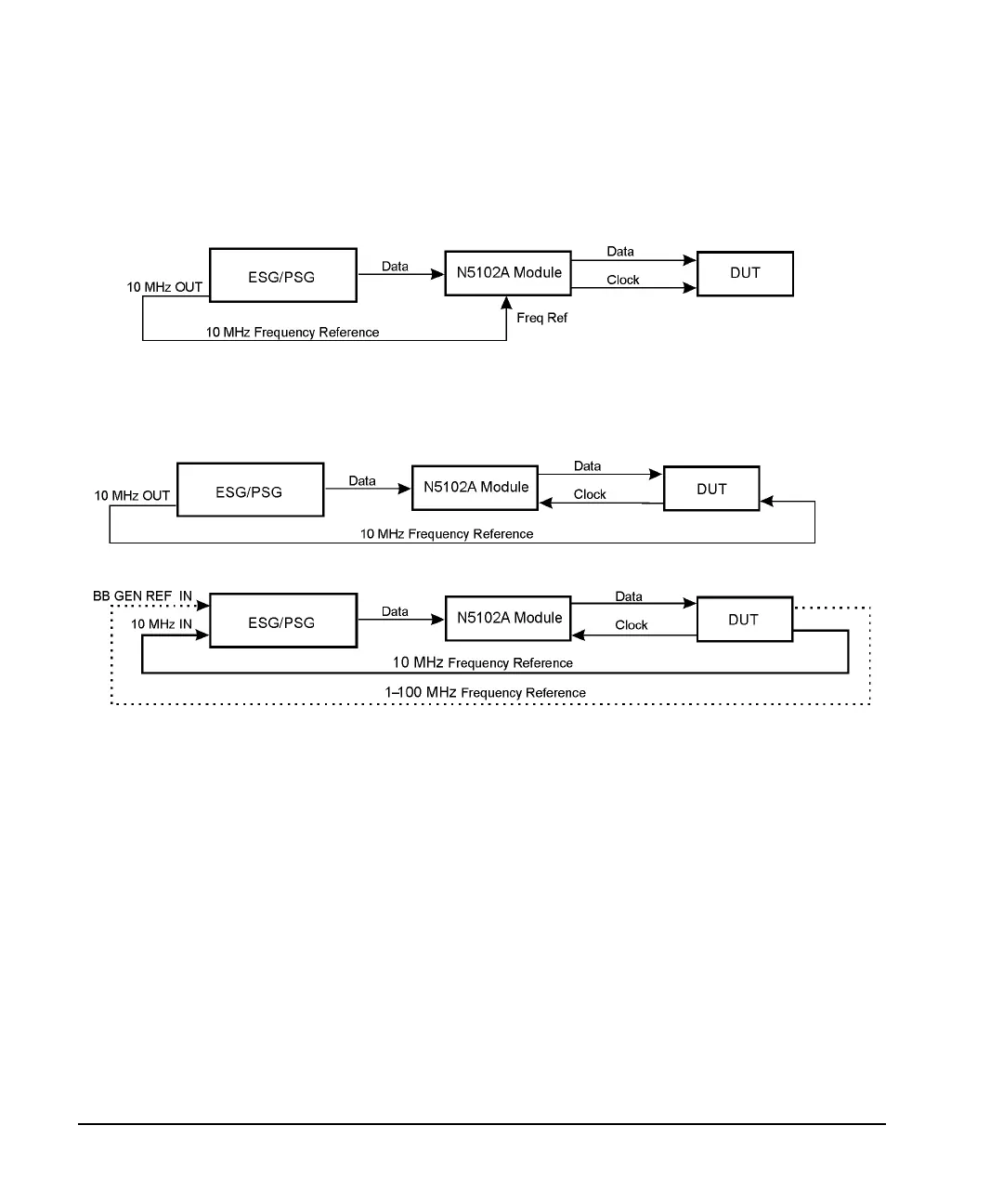

Figure 7-3 Frequency Reference Setup Diagrams for the N5102A Module Clock Signal
NOTE : Use only one of the two signal generator frequency reference inputs.
Internally Generated Clock
Device (DUT) Supplied Clock
