256 Chapter 8
Bluetooth Signals
Setting Up Packet Parameters
3. Press AM_ADDR > 4 > Enter.
This sets the active member address and is used to distinguish between the active members participating
on the piconet.
NOTE The all-zero AM_ADDR is reserved for broadcast messages.
4. Press
Payload Data > 8 Bit Pattern > 10101010 > Enter.
This selects a repeating 8-bit pattern as the payload data.

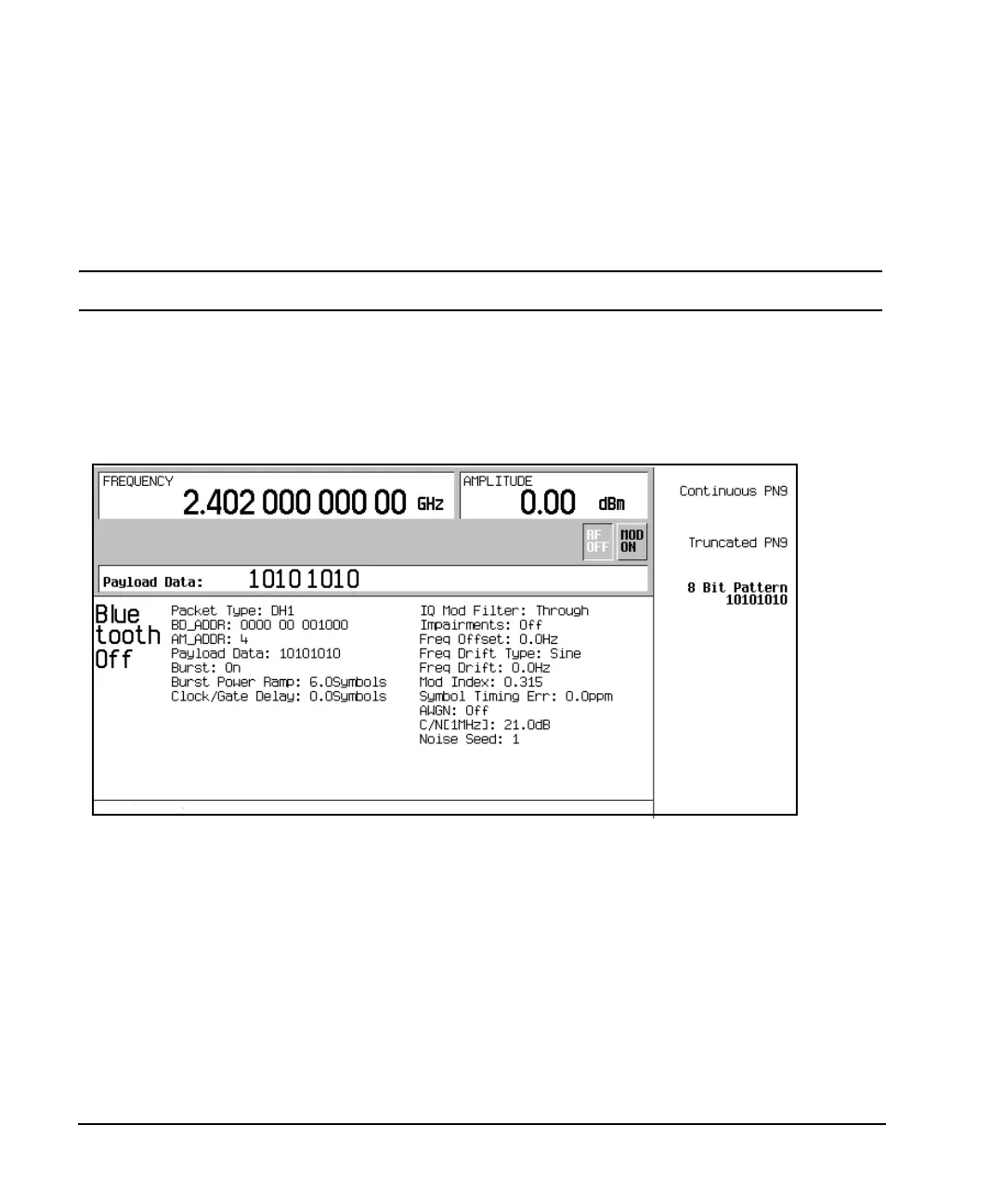

The following figure now displays the new packet parameters.
