Agilent Technologies E4438C User Manual

282 Chapter 9
BERT
Measuring RF Loopback BERT with Option 300

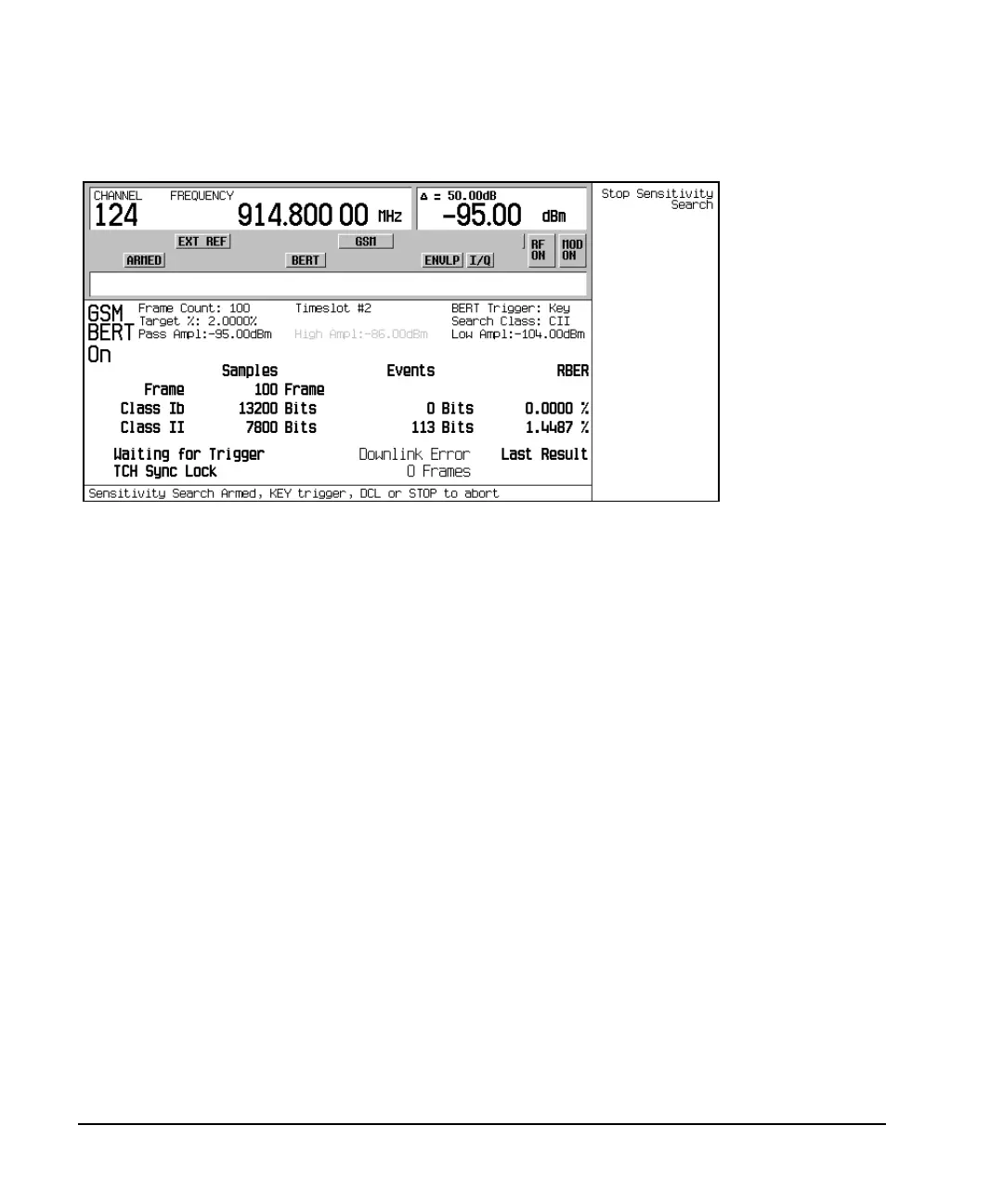

Figure 9-13
10. Press
Trigger to start the measurement:
After the search is complete, Pass or Fail is displayed on the lower left corner of the screen, when
either of the following occurs:
• The result equals or is less than the target percent within the high to low amplitude range.
• The high or low amplitude level is passed at the target% BER/RBER.
Refer to Figure 9-14.
