W-CDMA Digital Modulation for Component Test
W-CDMA Concepts

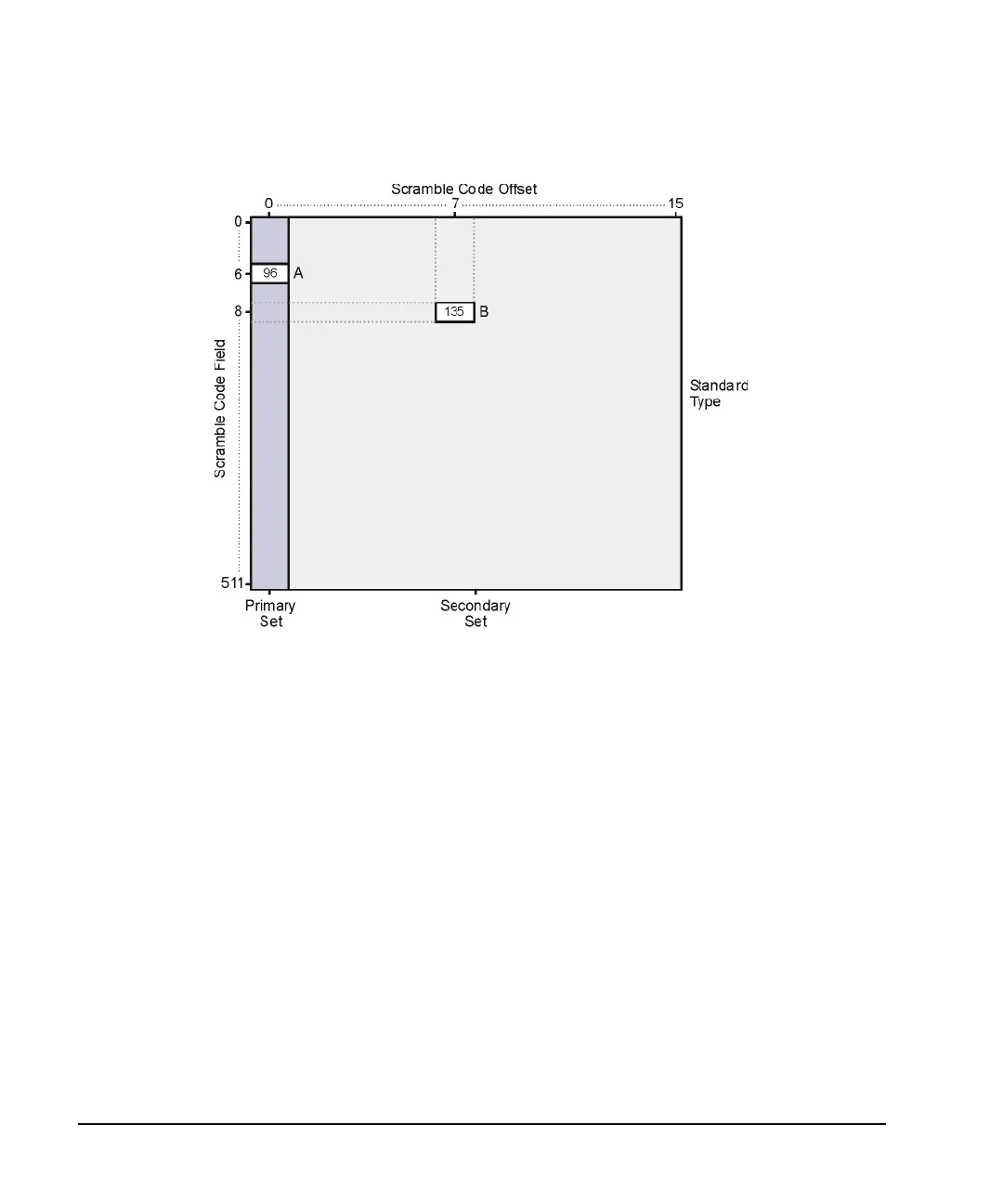

Figure 15-15
Scramble Codes with Right and Left Alternate Scramble Types
Recalling that right alternate adds 16384 to the scramble code and left alternate adds 8192, refer to the
following examples of scramble codes generated with the right alternate and left alternate scramble types:
Tabl e 15- 4
Where n = scramble code
i = scramble code field input
k = scramble offset field input
m = scramble type field input
Tabl e 15- 5
A: Primary set + Left Alternate B: Secondary set + Right Alternate
i = 6 i = 8
n 16 i×()km++=
