Agilent Technologies E4438C

502 Chapter 16
W-CDMA Uplink Digital Modulation for Receiver Test
Overload Testing with Multiple PRACHs—Multiple ESGs

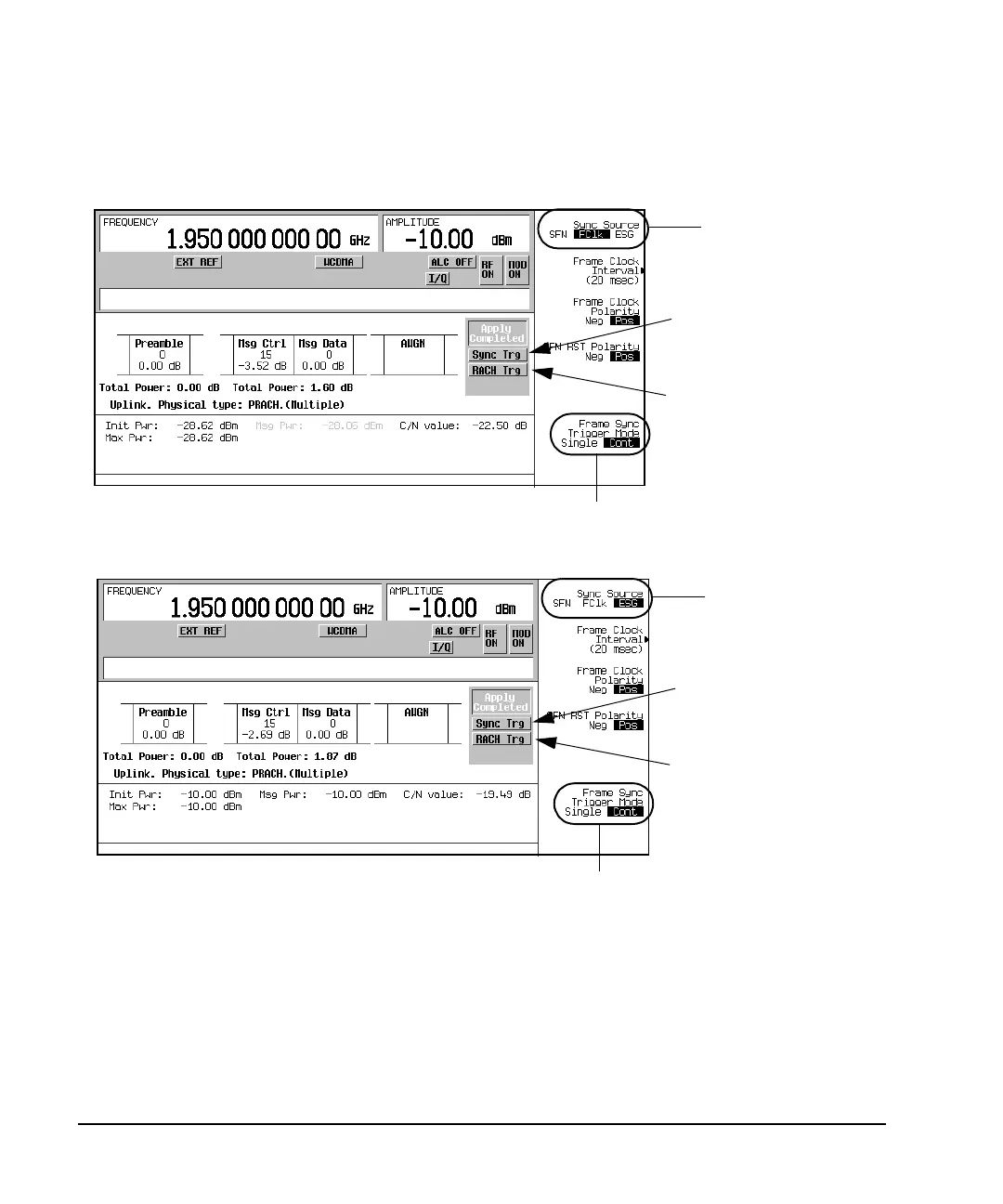

Figure 16-36 ESG 1 and ESG 2 Frame Timing Setup
ESG 1 is Synchronized
with the BTS Timing
Signal
ESG 1 has Received the
PRACH Start Trigger
(will gray-out when a
trigger is required)
Set to FClk
Set to Cont
ESG 2 is Synchronized
with the ESG 1 Timing
Signal
ESG 2 has Received the
PRACH Start Trigger
(will gray-out when a
trigger is required)
Set to ESG
Set to Cont
ESG 2
ESG 1
