W-CDMA Uplink Digital Modulation for Receiver Test
Setting Up Compressed Mode for a Single TGPS Transmission

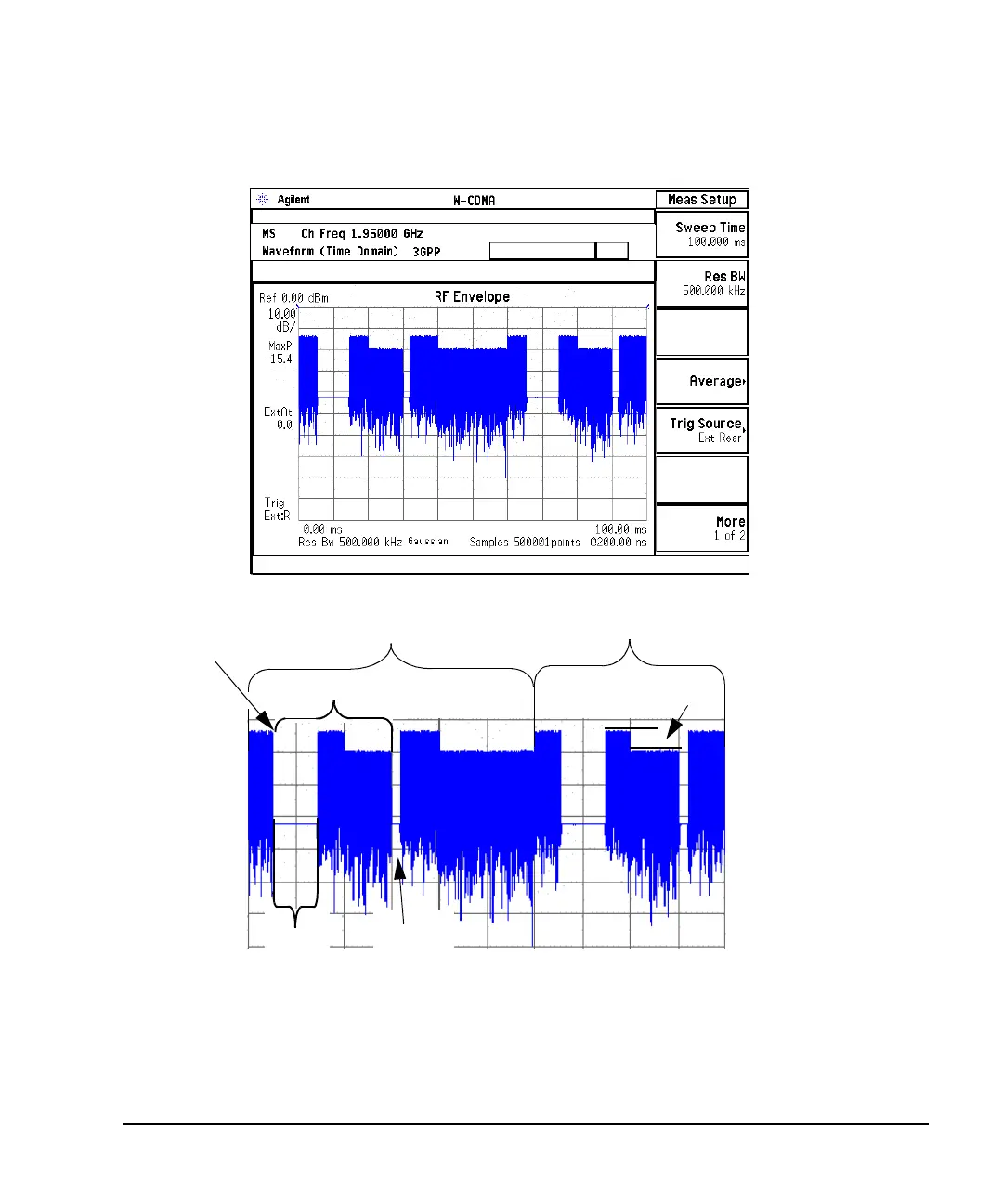

Figure 16-53 Displayed Compressed Signal and Signal Parameters
TGPL1—6 Frames
TGPL2—4 Frames
TGL1
14 DTX Slots
TGL2
3 DTX Slots
TGD—37 Slots
PwrOffs—6 dB
Spread Over
2 Frames
TGSN
Slot 8
