3 Sample Sessions: Measuring a Trace How to Print the Measurement
102 E6000C Mini-OTDR User’s Guide, E0302
• Information about the markers (position, attenuation,
loss, and so on).
• The event table.
• The horizontal offset (marked as a dotted vertical line
on the trace).
• The Labels and Comments set in “How to Set the Trace
Information” on page 136.
• The Pass/Fail test table. See “How to Use the Pass/Fail
test” on page 92.
This gives you all the information necessary to document
the measurement, or to repeat it using the same
parameters.

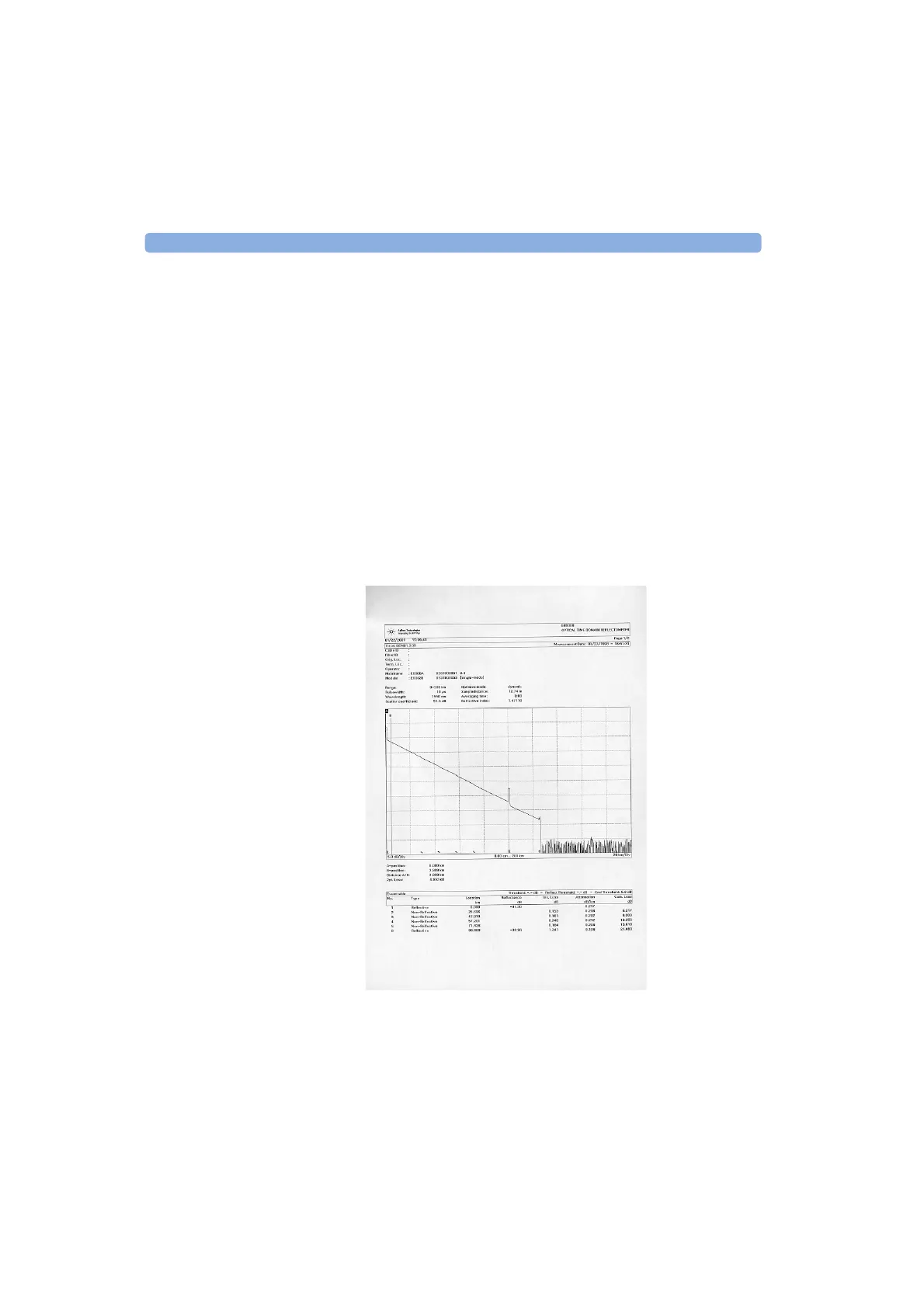

Figure 33 Typical Printout
