How to Use the Pass/Fail test 3 Sample Sessions: Measuring a Trace
E6000C Mini-OTDR User’s Guide, E0302
95

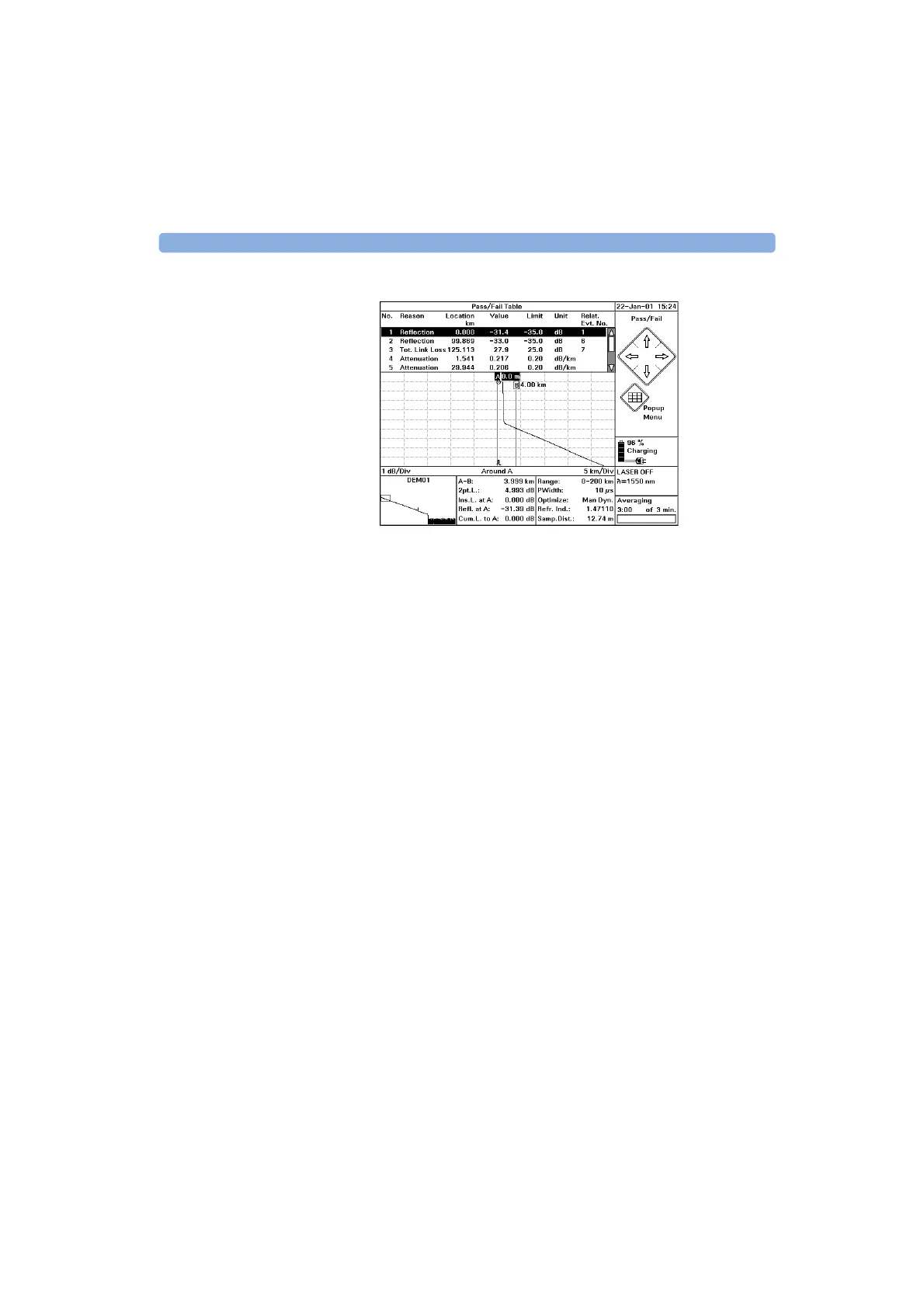

Figure 30 Pass/Fail test table
Events in the Pass/Fail test table are listed in order of
severity. So, the Event whose values most exceeds its
limits is listed first, with the remaining Events being
listed in order of importance.
contents of Pass/Fail table The Pass/Fail test table gives you the following
information:
• The number and location of the Event.
• The limit that has been exceeded (Reason) (see “The
Pass/Fail Parameters Settings page” on page 54). This
relates the parameters in the Settings screen.
NOTE The Reason given refers to the exceeded limit and not
to the type of Event.
So, a Reflective Event can be reported as both
Reflect and Non-Reflect, depending on the limit
exceeded.
• The value of the Limit which has been exceeded.
•The actual Value recorded.
