1 Getting Started The Mini-OTDR module
36 E6000C Mini-OTDR User’s Guide, E0302
Removing a Module
NOTE You should switch off your Mini-OTDR before inserting or
removing a module or submodule.

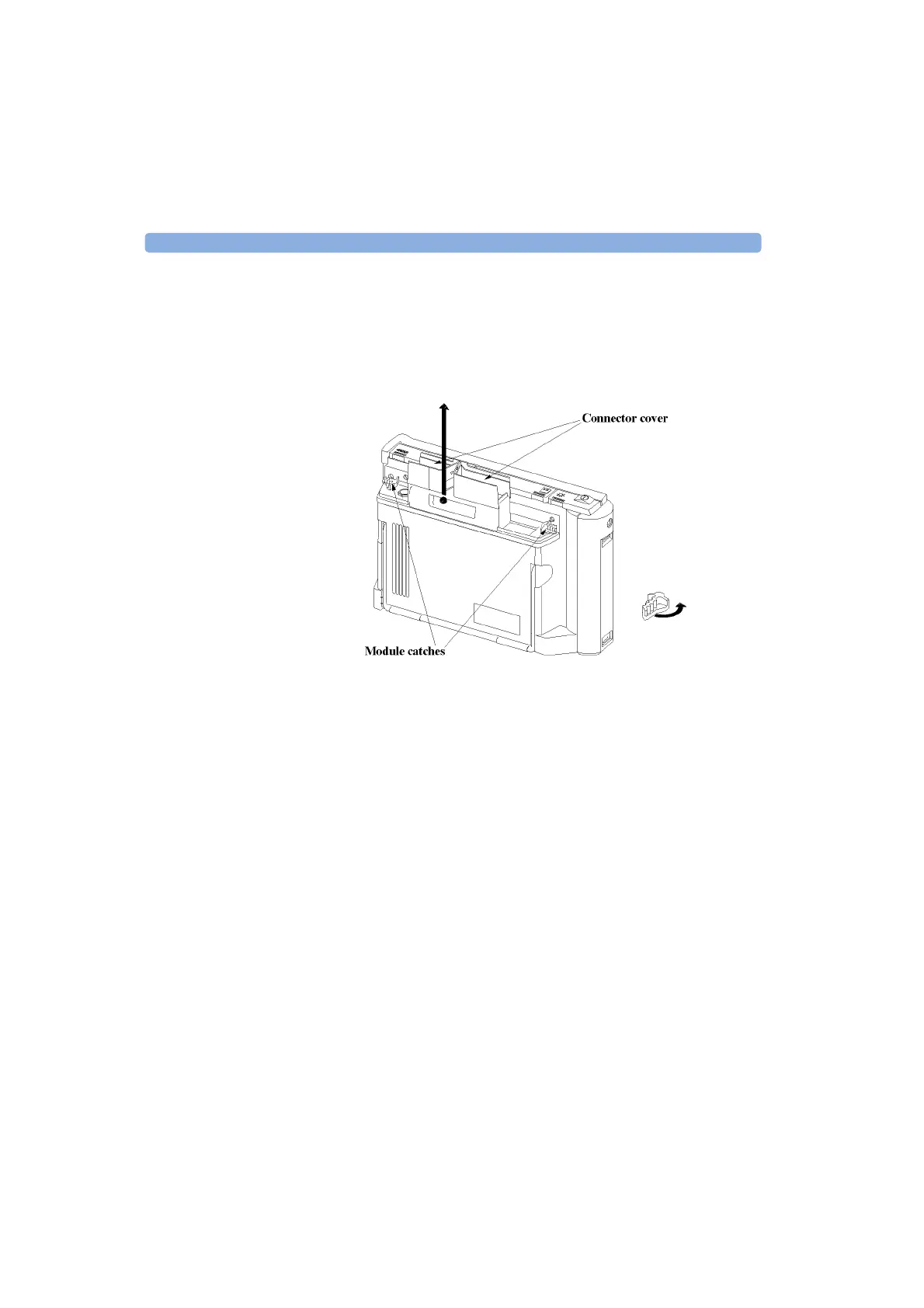

Figure 4 Removing a module
Module slot The slot in the back of the Mini-OTDR is used for the
various Mini-OTDR measurement modules. When you are
inserting or removing a module, open the connector
covers at the top of the module.
1 Open the connector covers
You can now see the Optical Output Connector where
fibers are attached and the module catches either side
of the module.
Rotate module catches 2 Rotate the module catches, so that they run parallel to
the screen, as shown in Figure 4.
