Agilent Technologies E6000C - Figure 64 Fiber Break Locator: Refractive Index Selection

6 Sample Sessions: Other Mini-OTDR Modes How to Use the Fiber Break Locator
162 E6000C Mini-OTDR User’s Guide, E0302
page 37 and “Adding a Connector Interface” on
page 38).
The Fiber Break Assistant gives you information about
connecting a fiber and selecting a cable vendor.
3 To move to the next screen in the Fiber Break
Assistant, press S
ELECT after reading each page.
Cable vendor list You should see a dialog containing the recommended
Refractive Indexes for selected cable vendors.

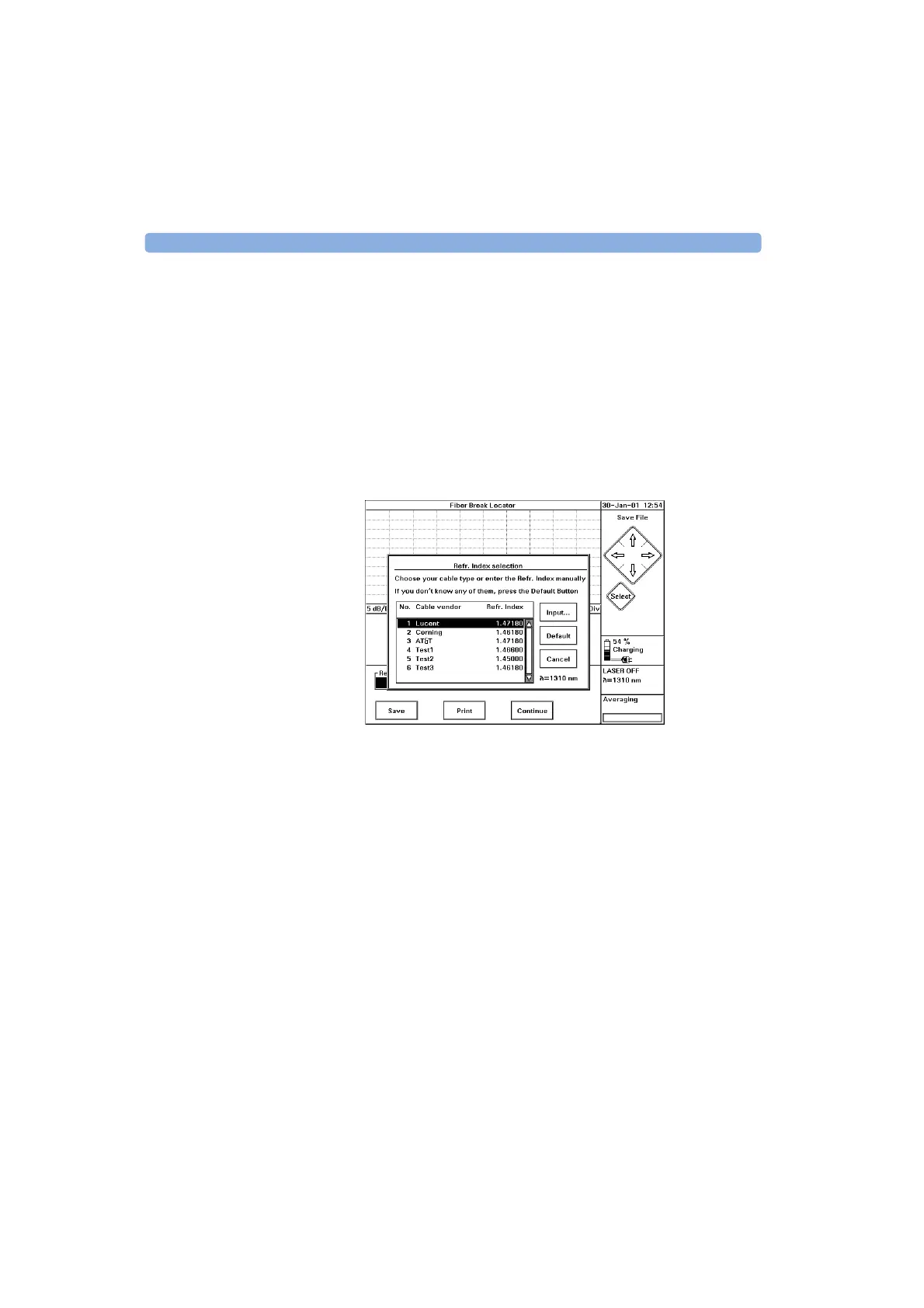

Figure 64 Fiber Break Locator: Refractive Index selection
NOTE If you don’t see this dialog, this means that you do not
have a vendor file (
VENDOR.INI ) in your Mini-OTDR
internal memory.
Please contact your Agilent representative if you need any
assistance, or see “Appendix: VENDOR.INI” on page 311.
If you do not have a vendor file, you can use the Cursor
keys to manually input a Refractive Index.
Select cable vendor 4 Cursor to an appropriate vendor name (or to
Default ),
and press S
ELECT.
