How to Use the Pass/Fail test
How to Set the Pass/Fail test Parameters
1 Select [SETTINGS] from the OTDR Mode popup panel.
Pass/Fail parameters 2 If you are not already viewing the Pass/Fail
Parameters page (Figure 13), cursor to either of the
arrows at the bottom left of the screen.
Press S
ELECT to bring up the next page.
3 Set the limits as required.
For more information, see “The Pass/Fail Parameters
Settings page” on page 54.
How to Mask Events
4 Cursor to the Event Masking edit box, and press
S
ELECT.
You see a window asking you to mark Events to be
masked (Figure 28). The Events that are already
masked have a tick beside their entry.

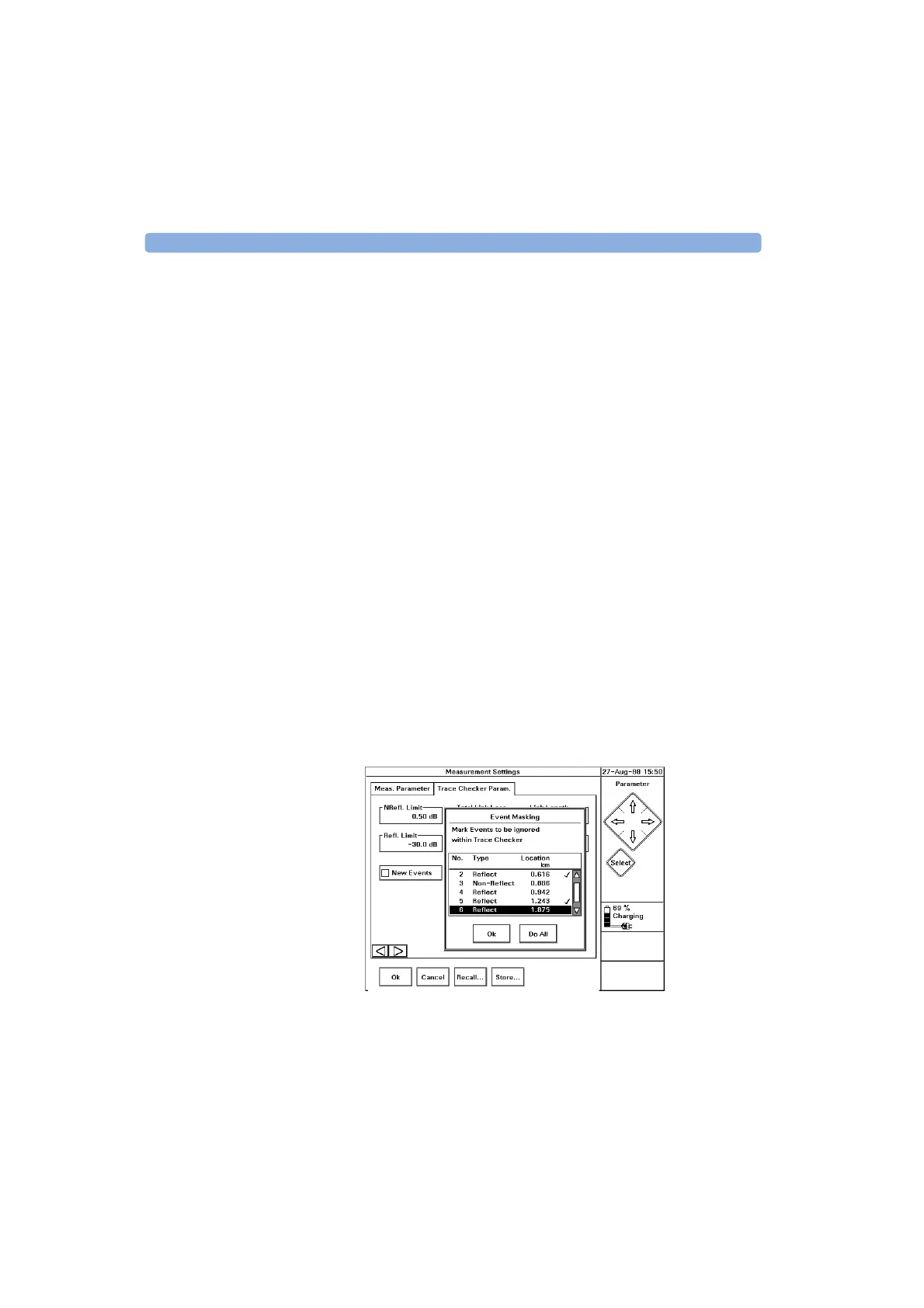

Figure 28 Select Event Masking
