6 Sample Sessions: Other Mini-OTDR Modes How to Use the Power Meter Submodule
166 E6000C Mini-OTDR User’s Guide, E0302
Power Meter screen You now see the Power Meter screen. You see 2
diagrams: the Power Meter is on the left, the Source is
on the right. In the Power Meter screen, you see the
current power level, which is updated 3 times per
second.

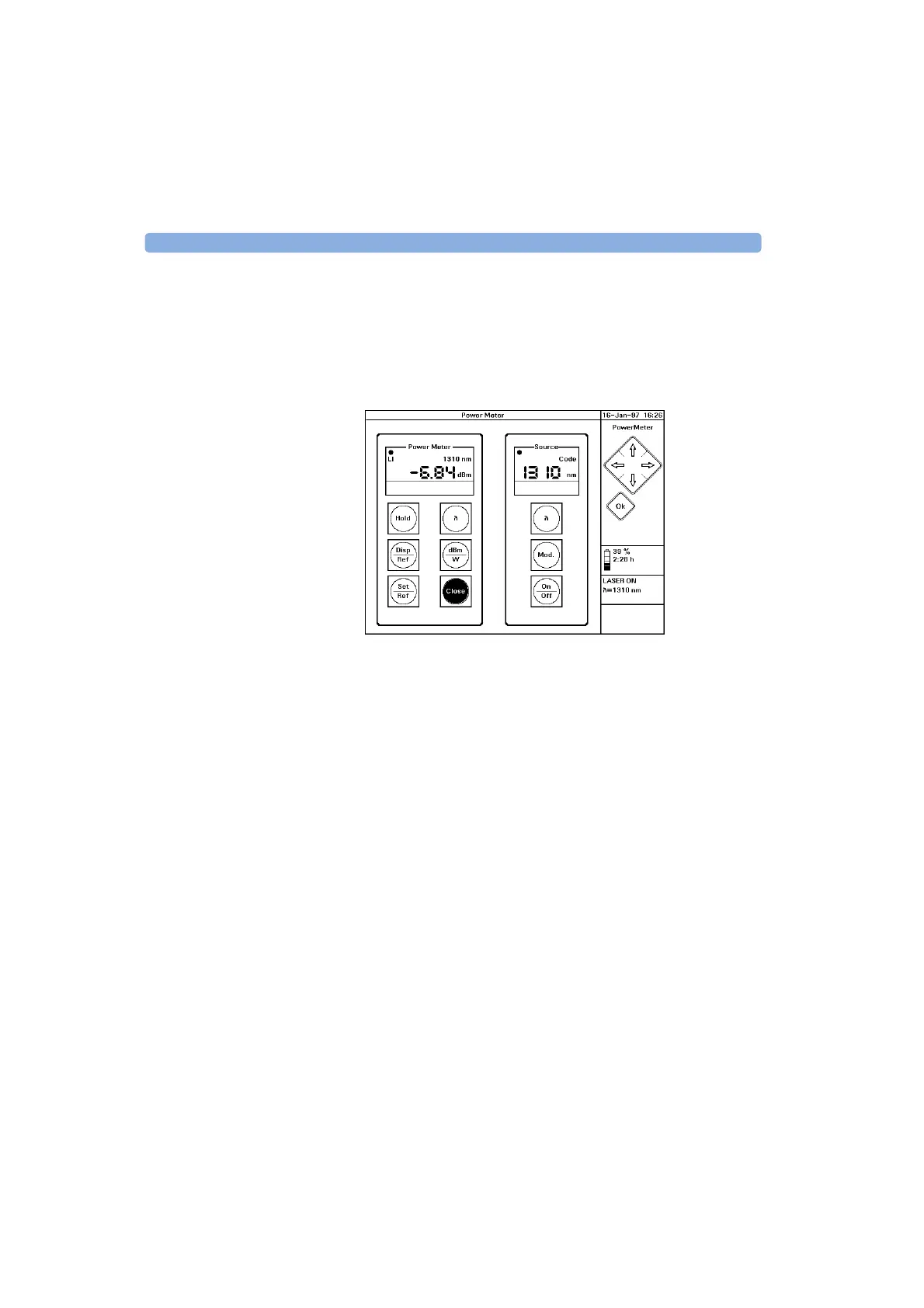

Figure 68 The Power Meter Screen
NOTE If the left-hand diagram is not titled Power Meter, you
do not have a Power Meter submodule installed, or it is
installed incorrectly. If you have a submodule in the back
of your instrument, check that both the module and the
submodule are in their slots properly.
Change settings 6 Move to the Power Meter (left-hand) diagram. If you
want to alter the units used, select dBm/W to toggle
between dBm, dB, and Watts.
7 If you want to alter the Wavelength, select
λ from the
Power Meter diagram.
The Power Meter toggles between the available
wavelengths for the module.
Freeze display 8 If you want to freeze the display, press Hold. You see
“Hold” written in the Power Meter (left-hand) screen.
