4 Sample Sessions: Analyzing an Existing Trace How to Display and Compare Two Traces
128 E6000C Mini-OTDR User’s Guide, E0302
Adjust Vertical Offset 5 Select [V
IEW] from the popup menu. Select the menu
DJUST V-OFFSET>.
The diagram for the Cursor changes (Figure 46). You
see single arrows for U
P and DOWN and double arrows
for L
EFT and RIGHT.

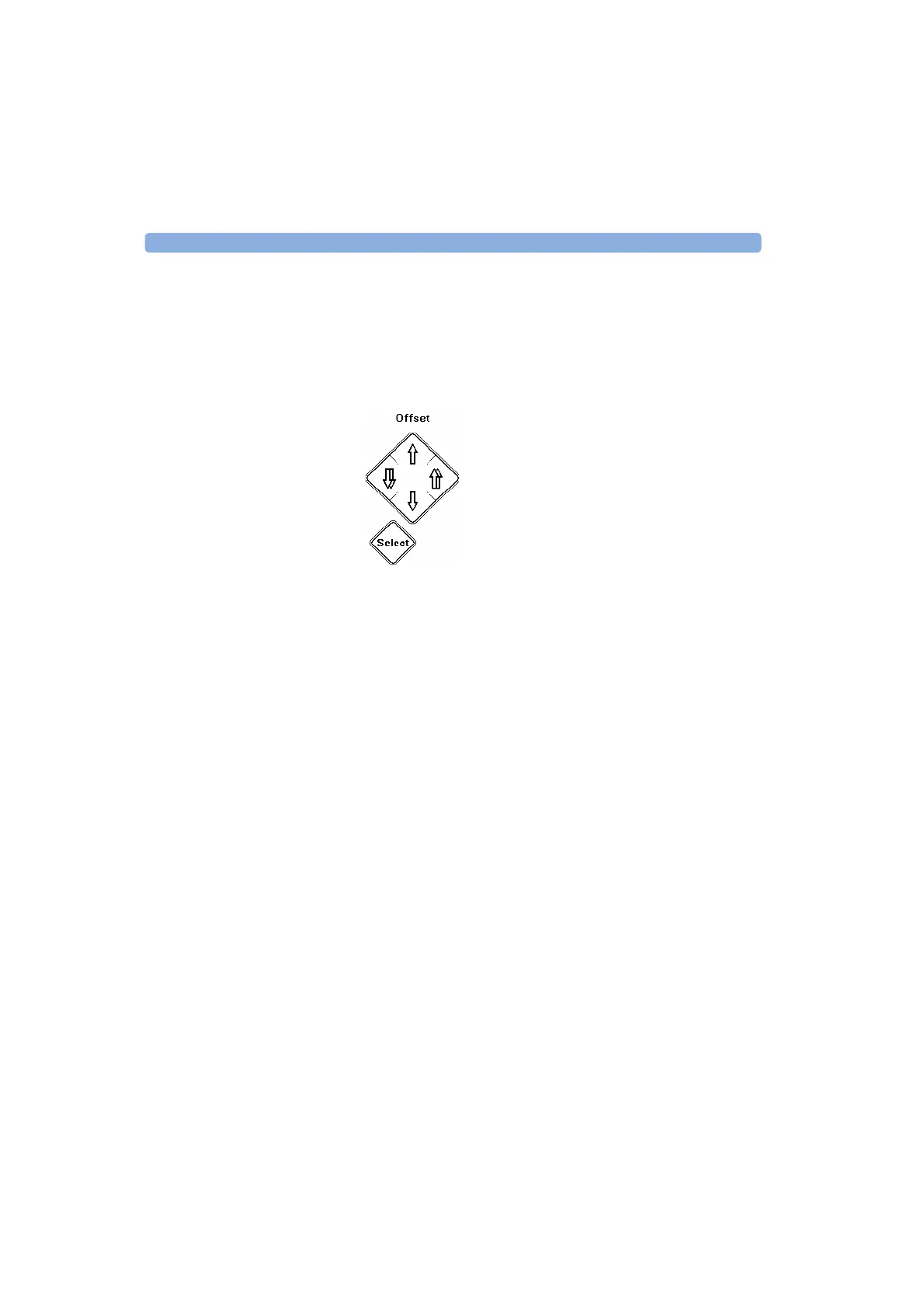

Figure 46 Cursor diagram - adjust Vertical Offset
6 If you want to move the current trace slightly, use the
UP and DOWN cursors for fine tuning.
Adjust larger increments If you want to move in larger increments, use the L
EFT
cursor to move down, and the R
IGHT cursor to move up.
NOTE When a vertical offset has been set, you see a tick next to
<A
DJUST V-OFFSEt> in the [FILE] menu.
To clear the vertical offset, select [F
ILE]<CLEAR V-OFFSET>.
