Optional Test VI: E6007A Visual Fault Finder Submodule D Single-Mode/Multimode Module
E6000C Mini-OTDR User’s Guide, E0302
267

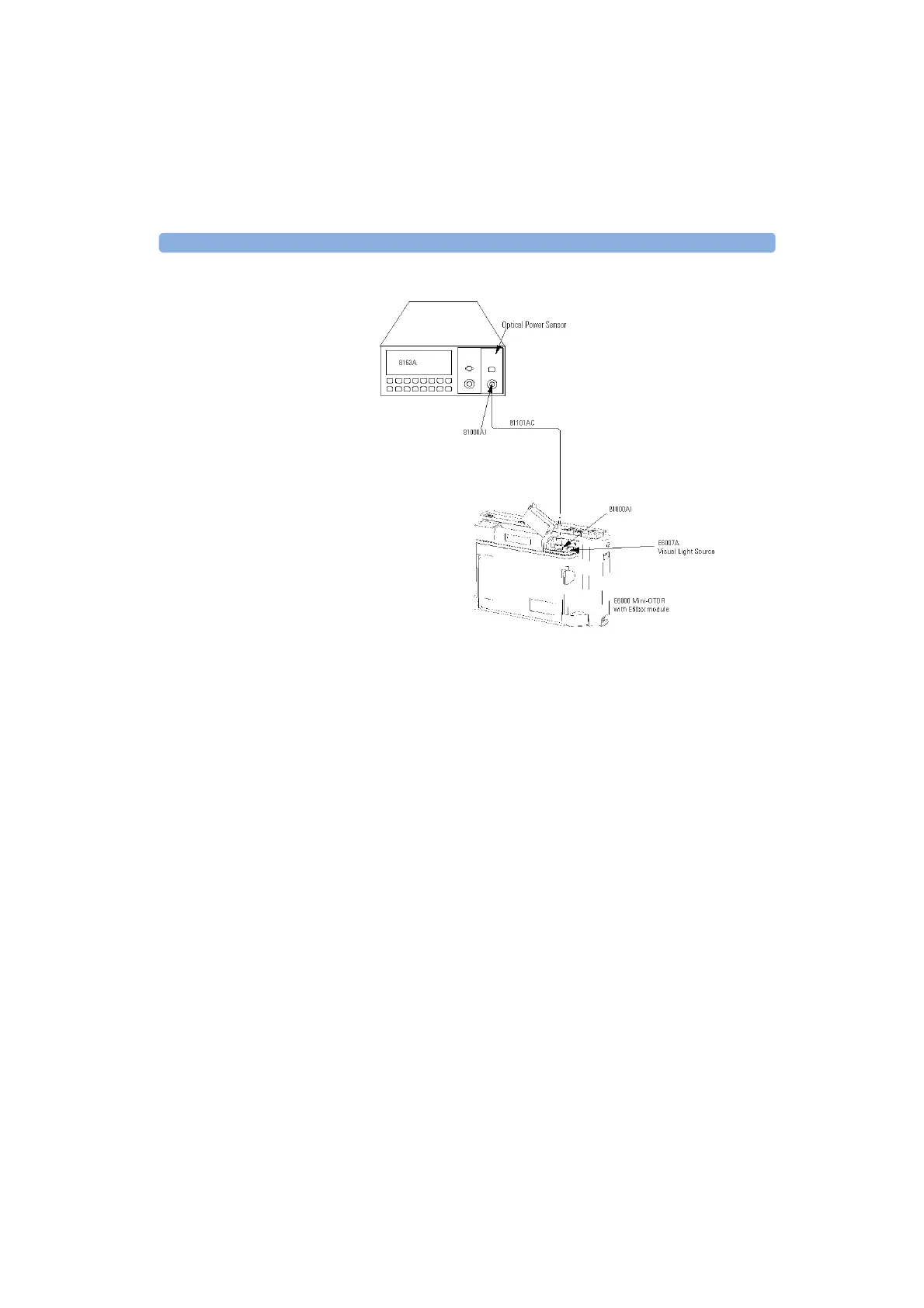

Figure 89 Measurement of the Output power
2 Apply a 9/125
µm patchcord with HMS-10 connectors.
Set up multimeter 3 Set the Multimeter:
4 Before you switch on the DUT, zero the Multimeter:
press {Z
ERO} on the Multimeter.
dBm/W dBm
wavelength
λ = 635 nm
sampling time T = 100 ms
Range AUTO
